please answer both questions. question:1 question:2 label the six missing quantities in the figure Use FA's to design a device which will calculate 9x 2y

please answer both questions.

question:1 image text in transcribed

question:2

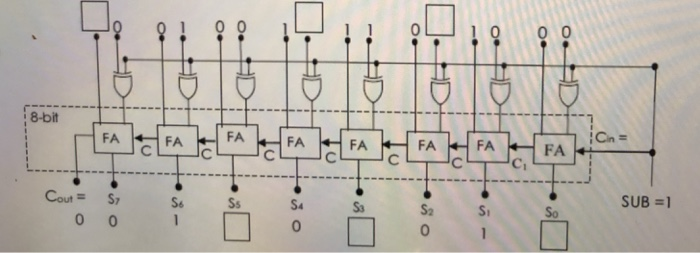

label the six missing quantities in the figure

Use FA's to design a device which will calculate 9x 2y where x and y are 4-bit signed inputs. Use 8-bit arithmetic. 1 0 0 8-bit FA FAFA FAFAFA FA Cout = S7 Se Sa SUB =1 Sa Sa S So

Step by Step Solution
