Please explain step by step with unit and equation. Thank you 1. An inductor L = 25 mH has a current that depends on I

image text in transcribedimage text in transcribed

Please explain step by step with unit and equation. Thank you

image text in transcribedimage text in transcribedimage text in transcribedimage text in transcribed

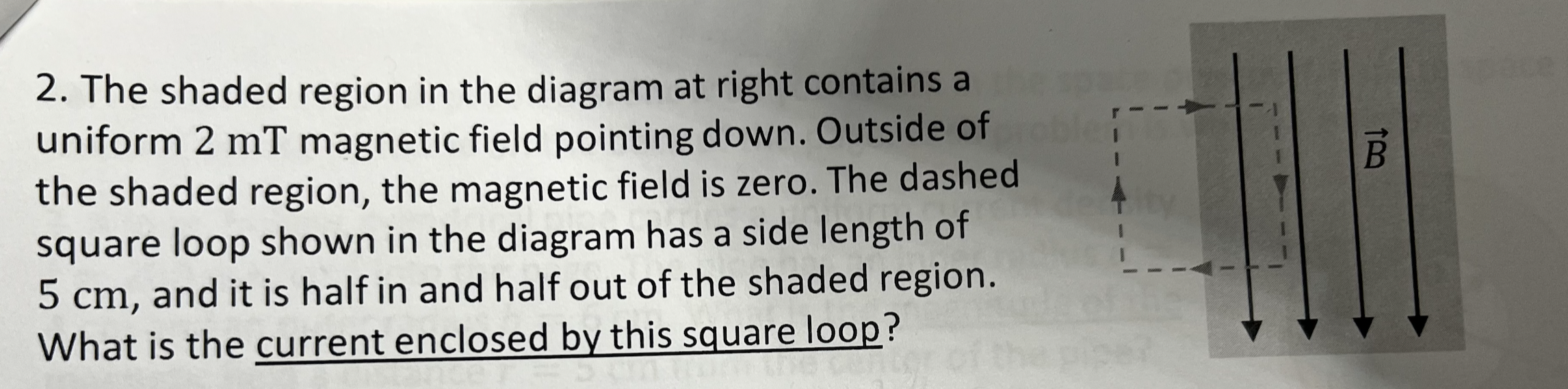

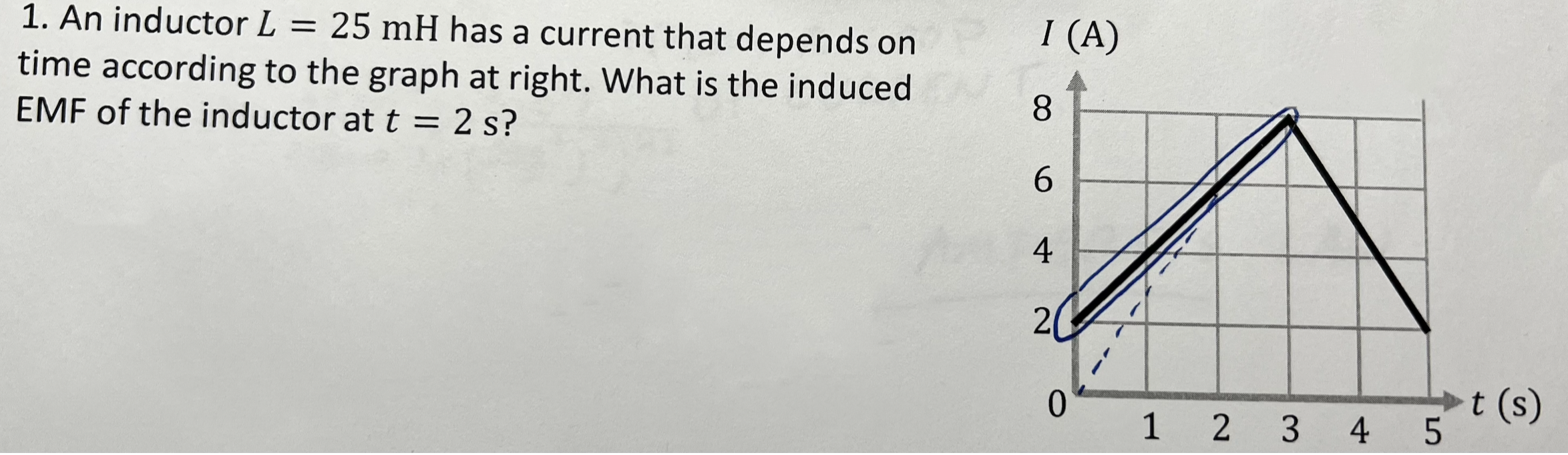

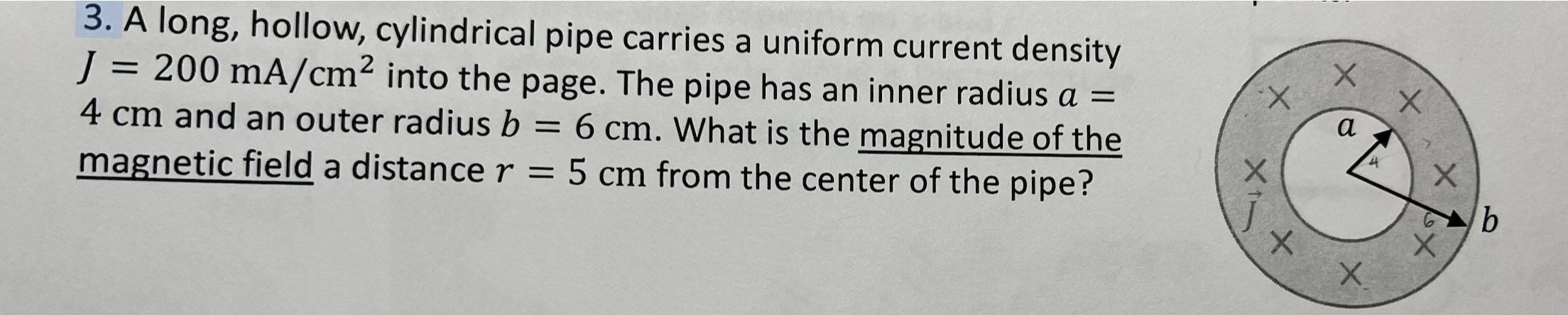

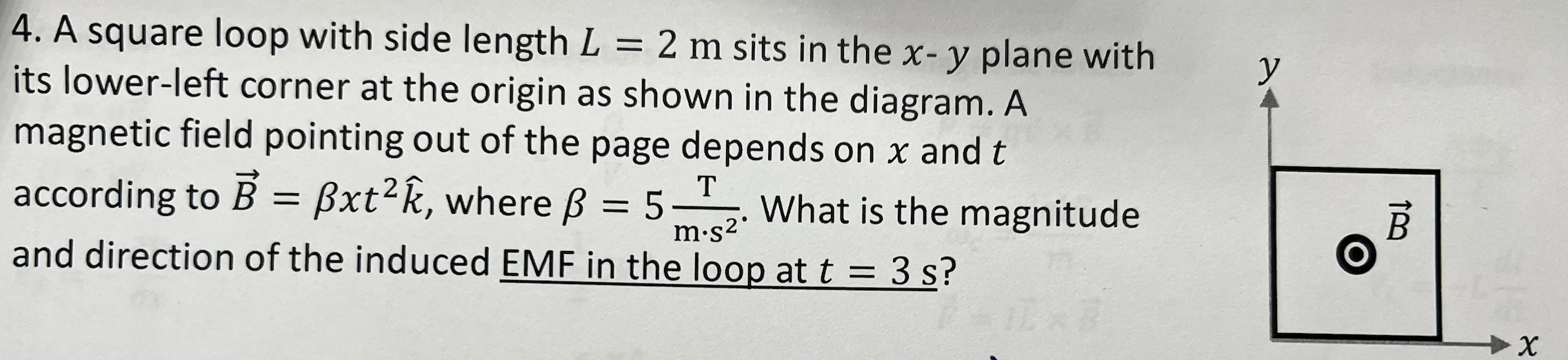

1. An inductor L = 25 mH has a current that depends on I (A) time according to the graph at right. What is the induced 8 EMF of the inductor at t = 2 s? 6 4 N 0 1 2 3 4 5 t (s )2. The shaded region in the diagram at right contains a uniform 2 mT magnetic field pointing down. Outside of the shaded region, the magnetic field is zero. The dashed B square loop shown in the diagram has a side length of 5 cm, and it is half in and half out of the shaded region. What is the current enclosed by this square loop?3. A long, hollow, cylindrical pipe carries a uniform current density X J = 200 mA/cm into the page. The pipe has an inner radius a = X X 4 cm and an outer radius b = 6 cm. What is the magnitude of the a magnetic field a distance r = 5 cm from the center of the pipe? X X b X X X'4. A square loop with side length L = 2 m sits in the x- y plane with its lower-left corner at the origin as shown in the diagram. A magnetic field pointing out of the page depends on x and t according to I? = thzlE, where B = 5 m-sZ' What is the magnitude and direction of the induced EMF in the loop at t = 3 S
