Question

1 Approved Answer

Please help me solve this physics page Electric Circuits 4. The following diagrams represent circuits consisting of two electrical devices connected in series For each

Please help me solve this physics page

image text in transcribed

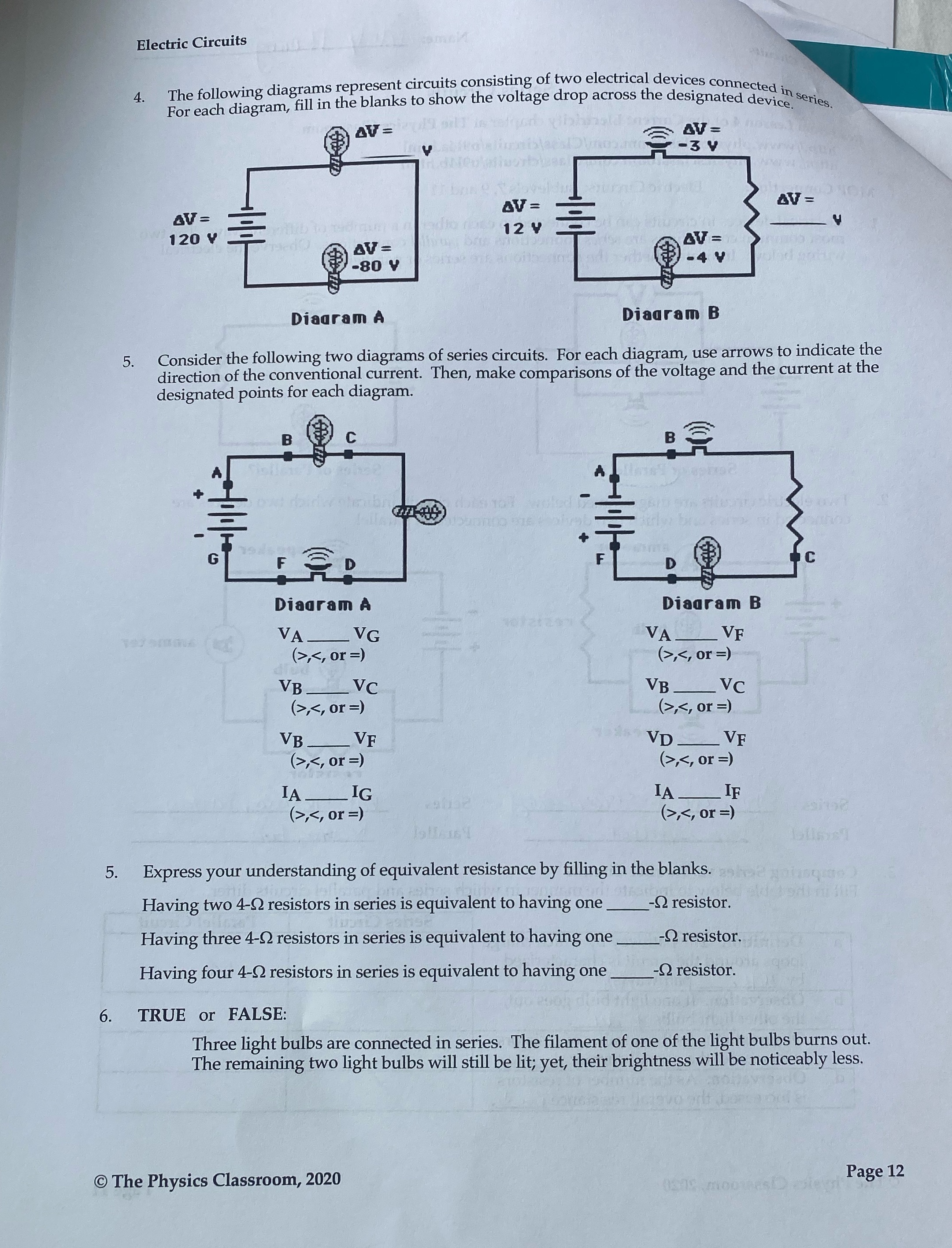

Electric Circuits 4. The following diagrams represent circuits consisting of two electrical devices connected in series For each diagram, fill in the blanks to show the voltage drop across the designated device. AV = AV = - 3 y AV = AV = AV = 120 Y 12 4 AV = AV= -80 y Diagram A Diagram B 5. Consider the following two diagrams of series circuits. For each diagram, use arrows to indicate the direction of the conventional current. Then, make comparisons of the voltage and the current at the designated points for each diagram. B Diagram A Diagram B VA. _VG VA_ VF ( > , , , , ,, , ,
