Please help You are given an audio amplifier. The input to the amplifier is a time varying voltage and the output of the amplifier is

image text in transcribedPlease help

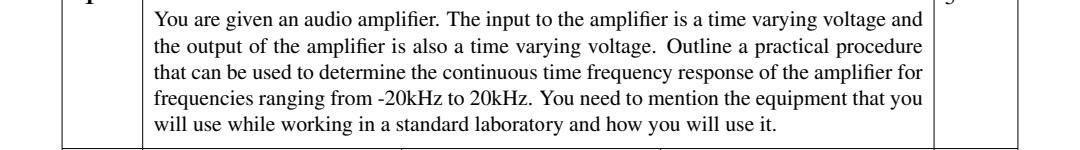

You are given an audio amplifier. The input to the amplifier is a time varying voltage and the output of the amplifier is also a time varying voltage. Outline a practical procedure that can be used to determine the continuous time frequency response of the amplifier for frequencies ranging from -20kHz to 20kHz. You need to mention the equipment that you will use while working in a standard laboratory and how you will use it
