please i need calculation step by step and Requirements: -find out the lagging efficiency for all of the 4 pipes -calculate the K thermal conductivity

please i need calculation step by step and Requirements:

-find out the lagging efficiency for all of the 4 pipes -calculate the K thermal conductivity for the 2nd and the 3rd pipe's lagging material

-compare the last results of the K thermal conductivity with the same materials in the indexes.

image text in transcribed

image text in transcribed

image text in transcribed

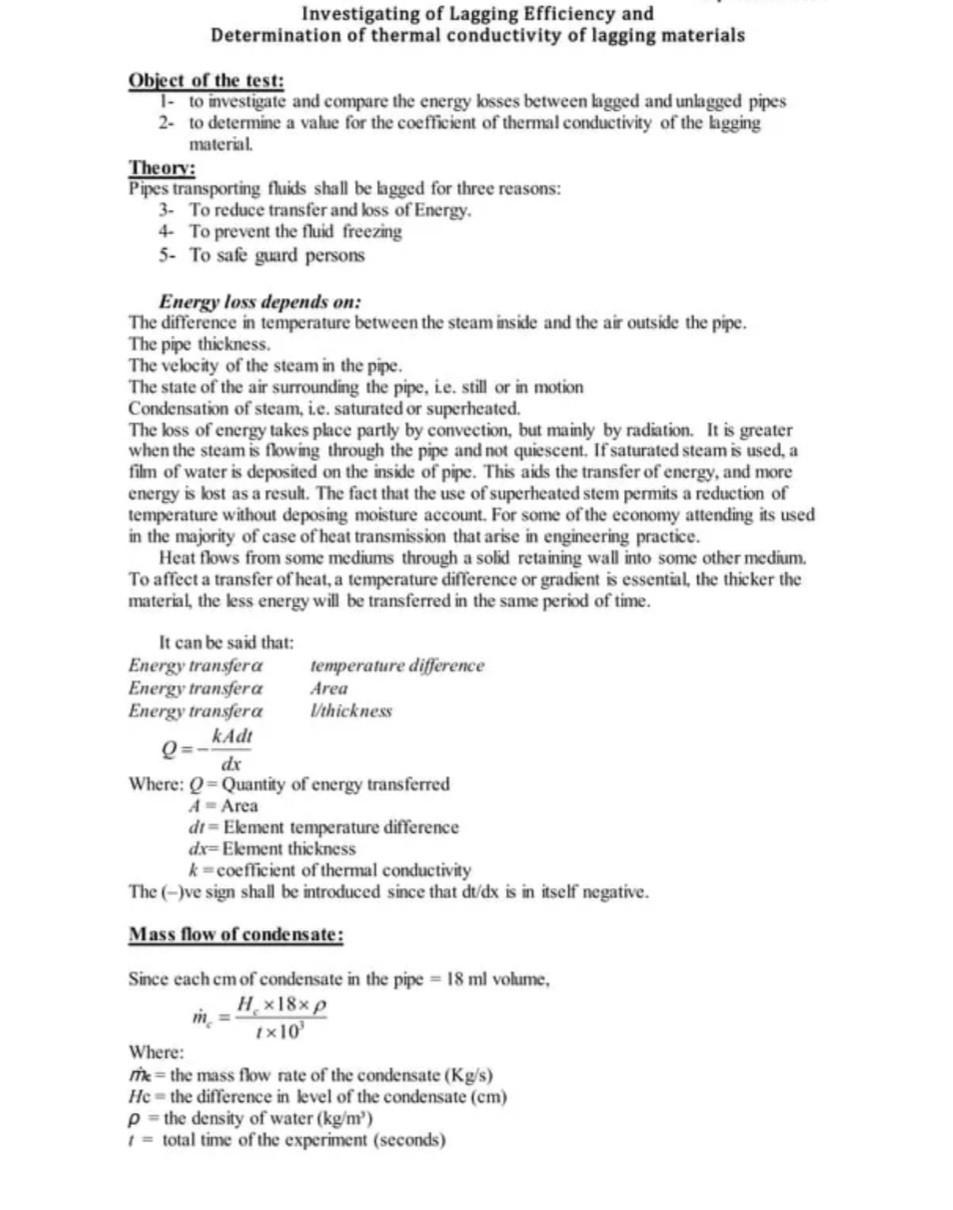

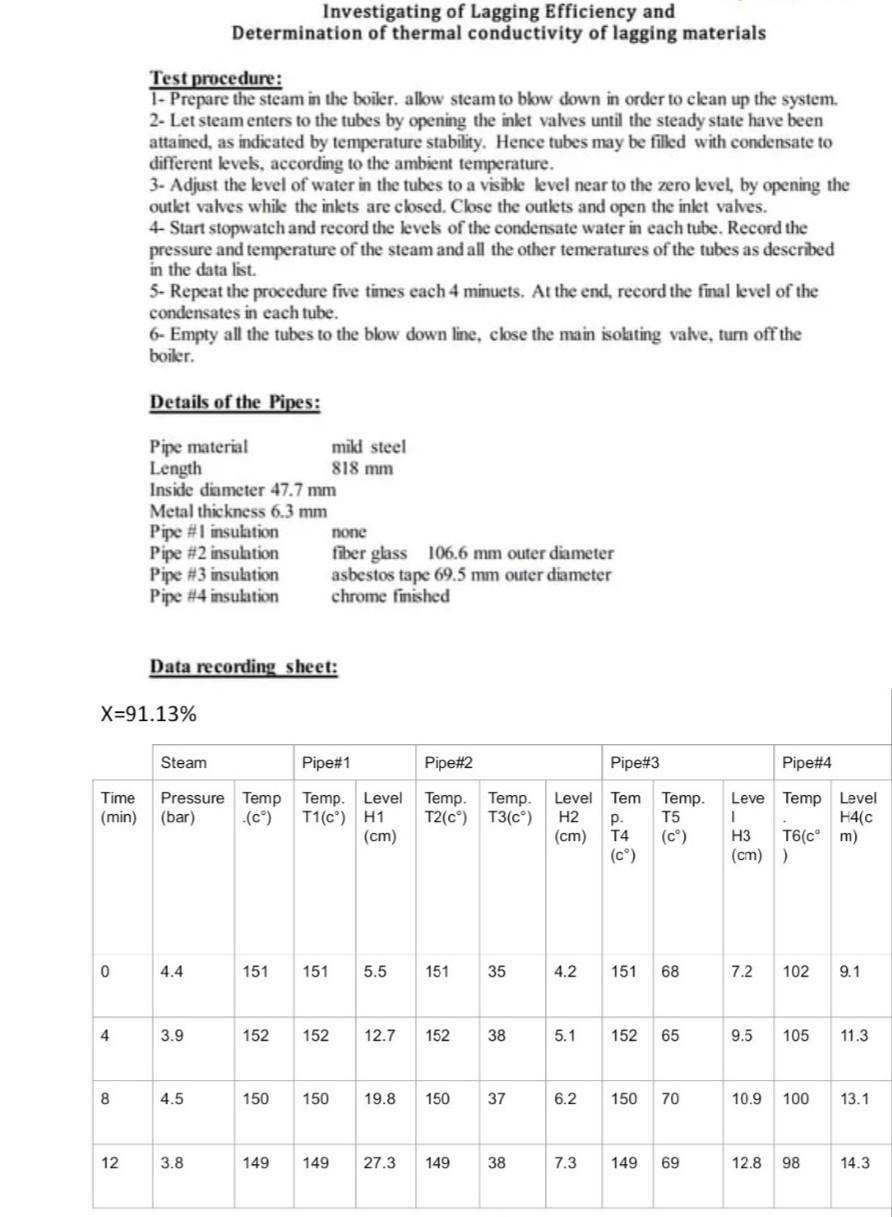

Investigating of Lagging Efficiency and Determination of thermal conductivity of lagging materials Obiect of the test: 1- to investigate and compare the energy losses between lagged and unlagged pipes 2. to determine a value for the coefficient of thermal conductivity of the lagging material. Theorv: Pipes transporting fluids shall be lagged for three reasons: 3- To reduce transfer and loss of Energy. 4. To prevent the fluid freezing 5- To safe guard persons Energy loss depends on: The difference in temperature between the steam inside and the air outside the pipe. The pipe thickness. The velocity of the steam in the pipe. The state of the air surrounding the pipe, i.e. still or in motion Condensation of steam, i.e. saturated or superheated. The loss of energy takes place partly by convection, but mainly by radiation. It is greater when the steam is flowing through the pipe and not quiescent. If saturated steam is used, a film of water is deposited on the inside of pipe. This aids the transfer of energy, and more energy is lost as a result. The fact that the use of superheated stem permits a reduction of temperature without deposing moisture account. For some of the economy attending its used in the majority of case of heat transmission that arise in engineering practice. Heat flows from some mediums through a solid retaining wall into some other medium. To affect a transfer of heat, a temperature difference or gradient is essential, the thicker the material, the less energy will be transferred in the same period of time. It can be said that: Energy transfer temperature difference Energy transfer Area Energy transfer V/hickness Q=dxkAdt Where: Q= Quantity of energy transferred A= Area dt= Element temperature difference dx= Element thickness k= coefficient of thermal conductivity The (-)ve sign shall be introduced since that dt/dx is in itself negative. Mass flow of condensate: Since each cm of condensate in the pipe =18ml volume, mc=t103Hc18 Where: m= the mass flow rate of the condensate (Kg/s) Hc= the difference in level of the condensate (cm) = the density of water (kg/m) t= total time of the experiment (seconds) Investigating of Lagging Efficiency and Determination of thermal conductivity of lagging materials Enthalpy of Evaporation lost/seconds: Q=mxhfs To determine k ( coefficient of thermal conductivity): Heat transmitted = Enthalpy lost / seconds Q=ln(r2/r1)2kl(T1T2)=mxhf/ k=2l(T1T2)mxh/kln(r2/r1)103 Having steam in all the pipes at the same properties, P,T and x, Then we can express the above as follows: Percentage Energy saved=lagging efficiency Apparatus: A 3 phased 30KW capacity Fulton electrical boiler (steam generator) completed with the accessories and automatic protection system is to be used for this experiment. The steam boiler is set to produce steam of around 5 bars supply pressure. Tubes bench, in which contains 4 steal tubes of known similar dimensions. The Ist tube is a plain tube painted but unlagged. The rest are lagged in different ways, 2nd piped is fiber glassed isolated, 3rd tube is isolated with the asbestos tape while the 4the tube is chrome coated. Temperature of the surfaces of the metal and the laggings can be determined from thermocouples installed to the bench. Each tube is installed with a sight glass provided with a metric ruler indicating the level of condensate in each tube. Test procedure: 1- Prepare the steam in the boiler. allow steam to blow down in order to clean up the system. 2- Let steam enters to the tubes by opening the inlet valves until the steady state have been attained, as indicated by temperature stability. Hence tubes may be filled with condensate to different levels, according to the ambient temperature. 3- Adjust the level of water in the tubes to a visible level near to the zero level, by opening the outlet valves while the inlets are closed. Close the outlets and open the inlet valves. 4- Start stopwatch and record the levels of the condensate water in each tube. Record the pressure and temperature of the steam and all the other temeratures of the tubes as described in the data list. 5- Repeat the procedure five times each 4 minuets. At the end, record the final level of the condensates in each tube. 6- Empty all the tubes to the blow down line, close the main isolating valve, turn off the boiler. Datarecordingsheet: Investigating of Lagging Efficiency and Determination of thermal conductivity of lagging materials Obiect of the test: 1- to investigate and compare the energy losses between lagged and unlagged pipes 2. to determine a value for the coefficient of thermal conductivity of the lagging material. Theorv: Pipes transporting fluids shall be lagged for three reasons: 3- To reduce transfer and loss of Energy. 4. To prevent the fluid freezing 5- To safe guard persons Energy loss depends on: The difference in temperature between the steam inside and the air outside the pipe. The pipe thickness. The velocity of the steam in the pipe. The state of the air surrounding the pipe, i.e. still or in motion Condensation of steam, i.e. saturated or superheated. The loss of energy takes place partly by convection, but mainly by radiation. It is greater when the steam is flowing through the pipe and not quiescent. If saturated steam is used, a film of water is deposited on the inside of pipe. This aids the transfer of energy, and more energy is lost as a result. The fact that the use of superheated stem permits a reduction of temperature without deposing moisture account. For some of the economy attending its used in the majority of case of heat transmission that arise in engineering practice. Heat flows from some mediums through a solid retaining wall into some other medium. To affect a transfer of heat, a temperature difference or gradient is essential, the thicker the material, the less energy will be transferred in the same period of time. It can be said that: Energy transfer temperature difference Energy transfer Area Energy transfer V/hickness Q=dxkAdt Where: Q= Quantity of energy transferred A= Area dt= Element temperature difference dx= Element thickness k= coefficient of thermal conductivity The (-)ve sign shall be introduced since that dt/dx is in itself negative. Mass flow of condensate: Since each cm of condensate in the pipe =18ml volume, mc=t103Hc18 Where: m= the mass flow rate of the condensate (Kg/s) Hc= the difference in level of the condensate (cm) = the density of water (kg/m) t= total time of the experiment (seconds) Investigating of Lagging Efficiency and Determination of thermal conductivity of lagging materials Enthalpy of Evaporation lost/seconds: Q=mxhfs To determine k ( coefficient of thermal conductivity): Heat transmitted = Enthalpy lost / seconds Q=ln(r2/r1)2kl(T1T2)=mxhf/ k=2l(T1T2)mxh/kln(r2/r1)103 Having steam in all the pipes at the same properties, P,T and x, Then we can express the above as follows: Percentage Energy saved=lagging efficiency Apparatus: A 3 phased 30KW capacity Fulton electrical boiler (steam generator) completed with the accessories and automatic protection system is to be used for this experiment. The steam boiler is set to produce steam of around 5 bars supply pressure. Tubes bench, in which contains 4 steal tubes of known similar dimensions. The Ist tube is a plain tube painted but unlagged. The rest are lagged in different ways, 2nd piped is fiber glassed isolated, 3rd tube is isolated with the asbestos tape while the 4the tube is chrome coated. Temperature of the surfaces of the metal and the laggings can be determined from thermocouples installed to the bench. Each tube is installed with a sight glass provided with a metric ruler indicating the level of condensate in each tube. Test procedure: 1- Prepare the steam in the boiler. allow steam to blow down in order to clean up the system. 2- Let steam enters to the tubes by opening the inlet valves until the steady state have been attained, as indicated by temperature stability. Hence tubes may be filled with condensate to different levels, according to the ambient temperature. 3- Adjust the level of water in the tubes to a visible level near to the zero level, by opening the outlet valves while the inlets are closed. Close the outlets and open the inlet valves. 4- Start stopwatch and record the levels of the condensate water in each tube. Record the pressure and temperature of the steam and all the other temeratures of the tubes as described in the data list. 5- Repeat the procedure five times each 4 minuets. At the end, record the final level of the condensates in each tube. 6- Empty all the tubes to the blow down line, close the main isolating valve, turn off the boiler. Datarecordingsheet
