Please provide clear and detailed steps for (a), (b), (c) so I can compare with my answers Problem 3: A 50-mm-diameter plastic tube is used

Please provide clear and detailed steps for (a), (b), (c) so I can compare with my answers

image text in transcribed

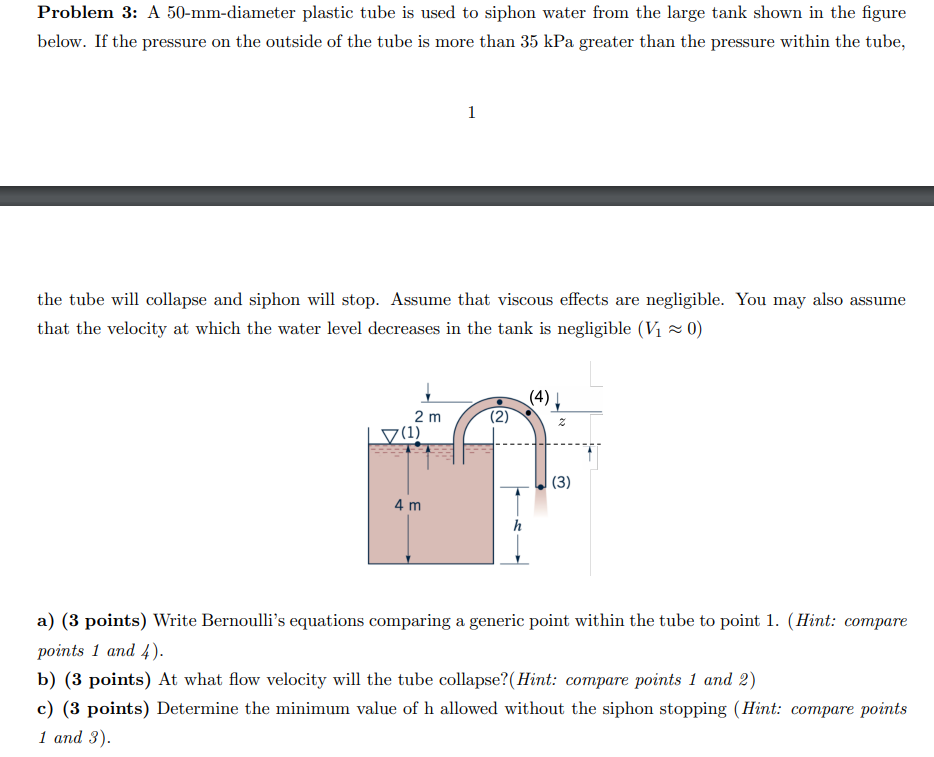

Problem 3: A 50-mm-diameter plastic tube is used to siphon water from the large tank shown in the figure below. If the pressure on the outside of the tube is more than 35kPa greater than the pressure within the tube, 1 the tube will collapse and siphon will stop. Assume that viscous effects are negligible. You may also assume that the velocity at which the water level decreases in the tank is negligible (V10) a) (3 points) Write Bernoulli's equations comparing a generic point within the tube to point 1. (Hint: compare points 1 and 4). b) (3 points) At what flow velocity will the tube collapse?(Hint: compare points 1 and 2) c) (3 points) Determine the minimum value of h allowed without the siphon stopping (Hint: compare points 1 and 3)
