Please solve everything with steps :((( 1. In the following circuit, the capacitance for C1 is 6.9 pF, and that for C2 is 4.6 ,uF.

Please solve everything with steps :(((

image text in transcribed

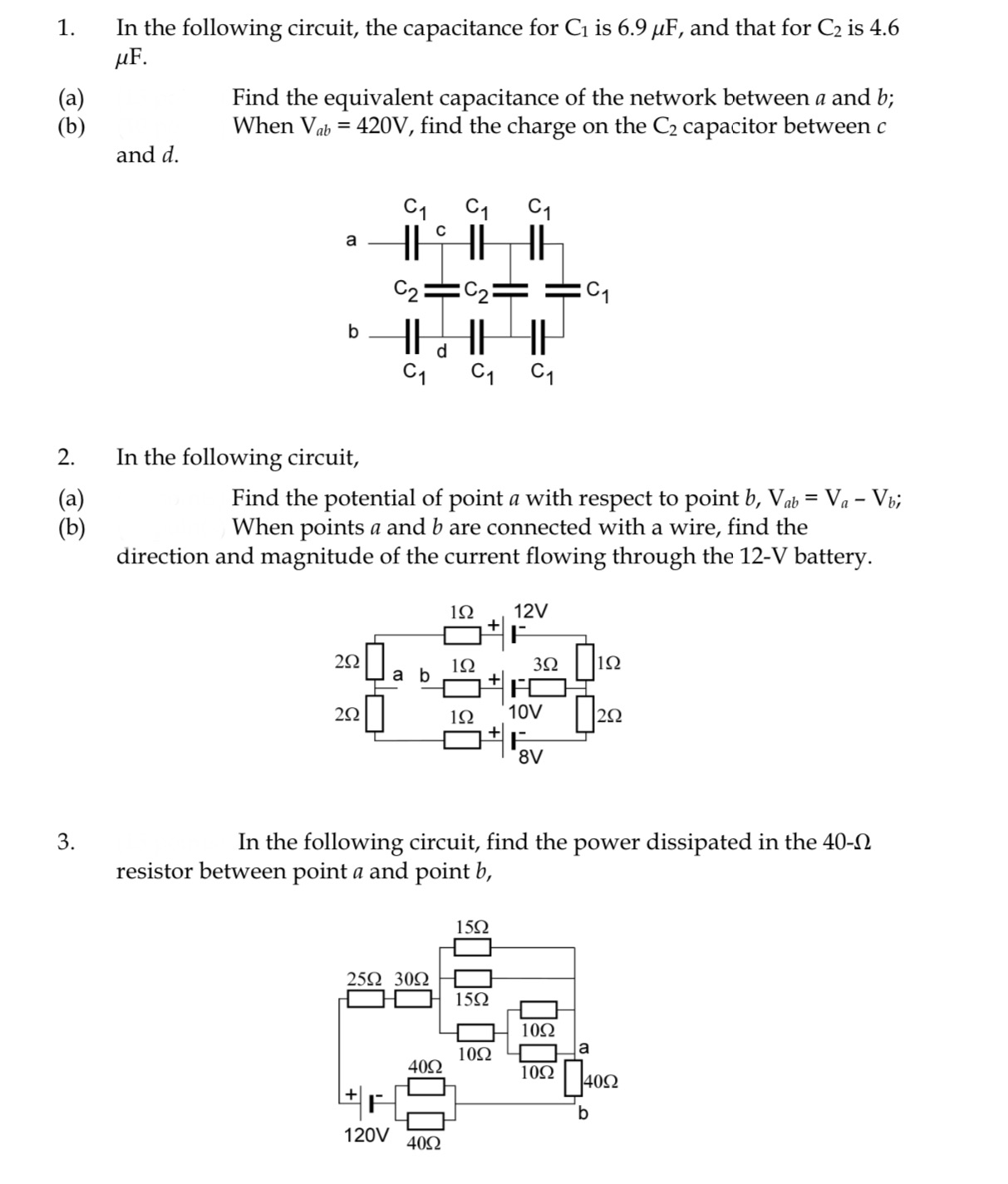

1. In the following circuit, the capacitance for C1 is 6.9 pF, and that for C2 is 4.6 ,uF. (a) Find the equivalent capacitance of the network between a and b; (b) When Val, = 420V, find the charge on the C2 capacitor between c andd. c1 c1 c1 cw: C2 C2 C1 b FLIFHJ d C1 C1 C1 2. In the following circuit, (a) Find the potential of point a with respect to point 1), Wm = V - Vb; (b) When points a and b are connected with a wire, find the direction and magnitude of the current owing through the 12-V battery. 3. In the following circuit, find the power dissipated in the 40-0 resistor between point a and point b

Step by Step Solution
