Please solve this question ASAP in details and fully explaination step by step. Thanks so much in advance. Re = 612 RX = 202 V

Please solve this question ASAP in details and fully explaination step by step. Thanks so much in advance.

image text in transcribed

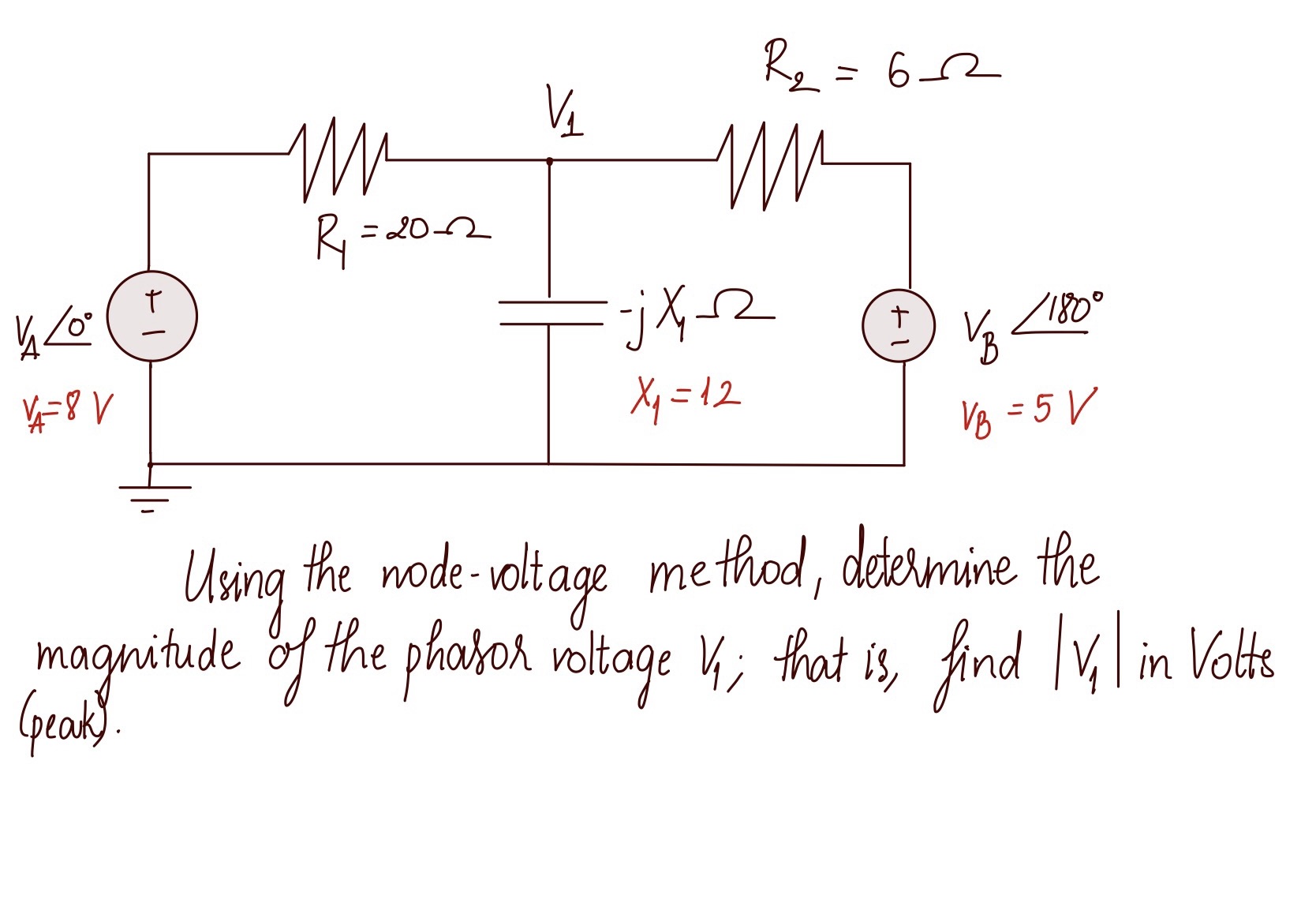

Re = 612 RX = 202 V Loo VR / 180 V- 8 V Xy = 12 VB = 5 V Using the mode-voltage method , determine the ( peak). magnitude of the phasor voltage ; that is , find / V, | in Volts
