Pls select correct answer. Thanks Question 8 900 N 600 N 45 15 X V 750 N Examine the free body diagram shown above. What

Pls select correct answer. Thanks

image text in transcribed

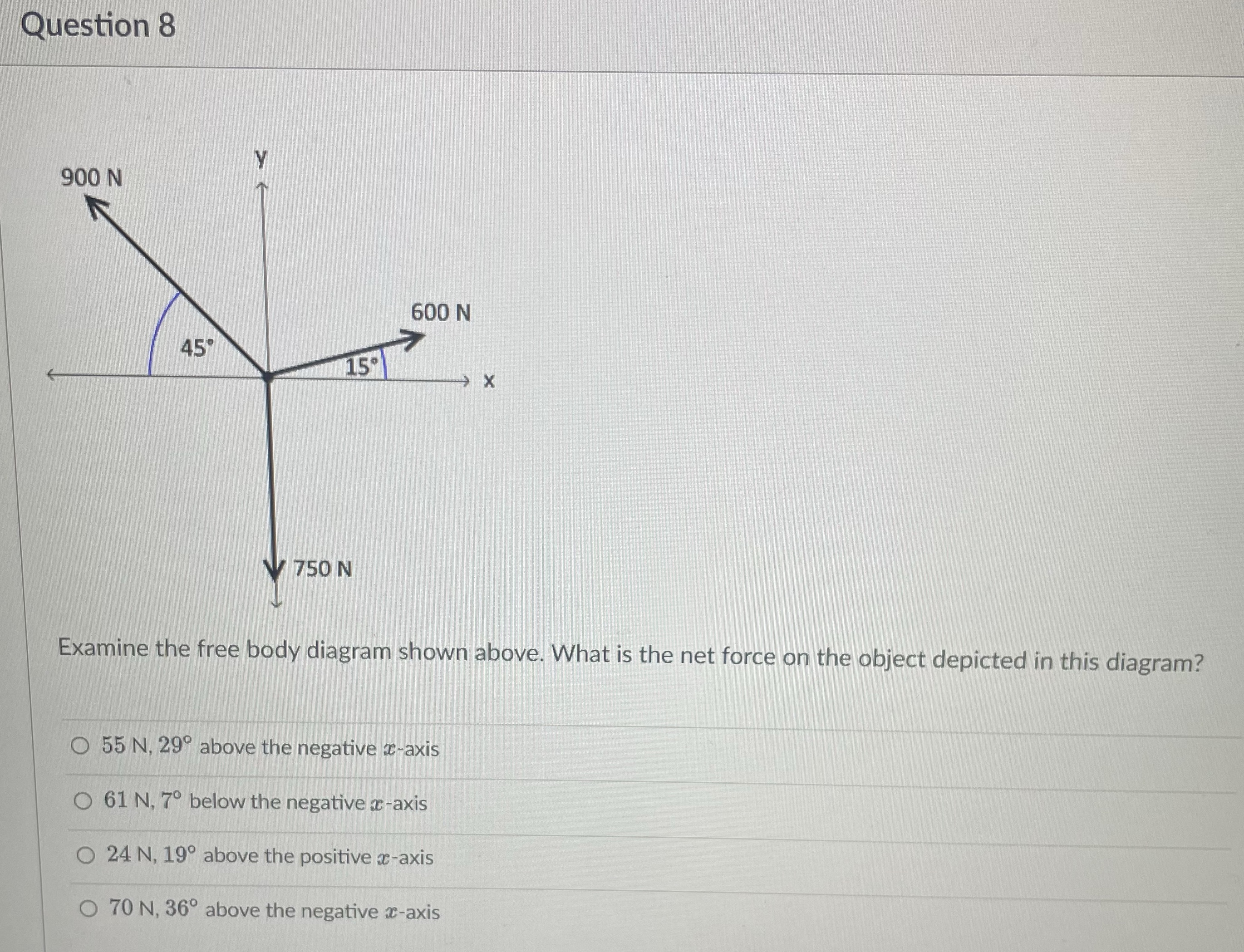

Question 8 900 N 600 N 45 15 X V 750 N Examine the free body diagram shown above. What is the net force on the object depicted in this diagram? 55 N, 290 above the negative :-axis 61 N, 70 below the negative x-axis O 24 N, 190 above the positive x-axis 70 N, 360 above the negative -axis

Step by Step Solution

There are 3 Steps involved in it

Step: 1
