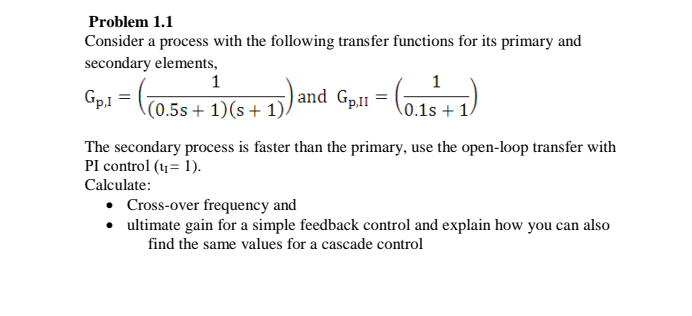

Problem 1 . 1 Consider a process with the following transfer functions for its primary and secondary elements, G p , I = ( 1

Problem 1.1
Consider a process with the following transfer functions for its primary and secondary elements,
Gp,I=(1(0.5s+1)(s+1)) and Gp,II=(10.1s+1)
The secondary process is faster than the primary, use the open-loop transfer with PI control )=(1.
Calculate:
Cross-over frequency and
ultimate gain for a simple feedback control and explain how you can also find the same values for a cascade control
image text in transcribed

Step by Step Solution

There are 3 Steps involved in it
