Question: Problem 1 : Determine the shear and moment throughout the beam as a function of x , and then draw the shear and moment diagrams

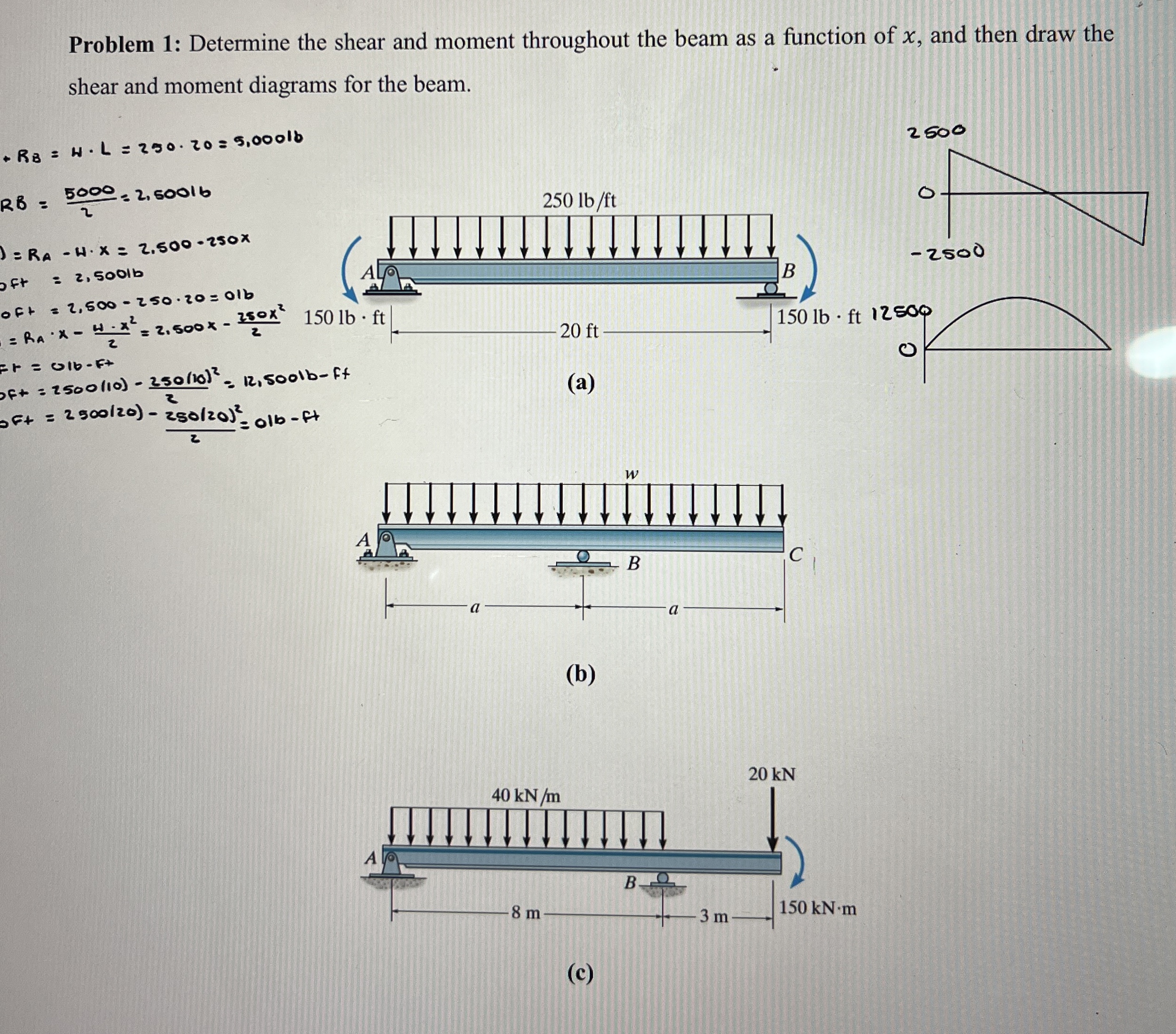

Problem 1: Determine the shear and moment throughout the beam as a function of x, and then draw the
shear and moment diagrams for the beam. Only b & c
Problem 1 : Determine the shear and moment

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
