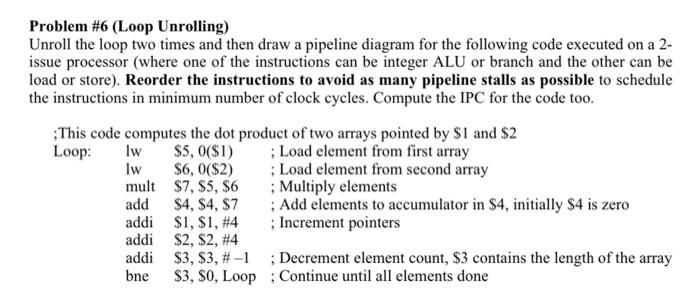

Problem #6 (Loop Unrolling) Unroll the loop two times and then draw a pipeline diagram for the following code executed on a 2- issue processor (where one of the instructions can be integer ALU or branch and the other can be load or store). Reorder the instructions to avoid as many pipeline stalls as possible to schedule the instructions in minimum number of clock cycles. Compute the IPC for the code too. This code computes the dot product of two arrays pointed by $1 and $2 Loop: lw $5, 0($1) : Load element from first array lw $6, 0($2) ; Load element from second array mult $7, S5, S6 ; Multiply elements add $4, S4, $7 ; Add elements to accumulator in $4, initially $4 is zero addi $1, $1, #4 ; Increment pointers addi $2, $2, #4 addi $3, $3, #-1 ; Decrement element count, $3 contains the length of the array bne $3, $0, Loop ; Continue until all elements done
