Problem description: A straw based biomass power plant has a capacity of 5 MWe. The power plant is going to be installed in four different

Problem description:
A straw based biomass power plant has a capacity of 5 MWe. The power plant is going to be
installed in four different countries. Calculate how much land (in ha) in each country will be required
to grow the amount of biomass corresponding to the capacity of the above plant? What is the
production cost of the same biomass in different countries?
Tasks:
Select a straw biomass type (i.e., rice straw, wheat straw and so on);
Select four different countries of your choice where the selected biomass is available;
Use the Phyllis 2 database to study, access and collect the characteristics data of the selected
biomass type;
Use the FAOSTAT database to collect the yield, land area required and cost of production of the
selected biomass data for the selected countries;
Perform the asked calculations considering the assumptions below and organize the data;
Go to the Phyllis 2 and FAOSTAT as many times as you need and perform the necessary
calculation until the above questions are adequately addressed;
Analyze the obtained data and present them in various graphs and tables;
Outline the bioenergy power plant based on the concept above;
Show the calculated numbers (mass and energy balance) at different points of the plant layout;

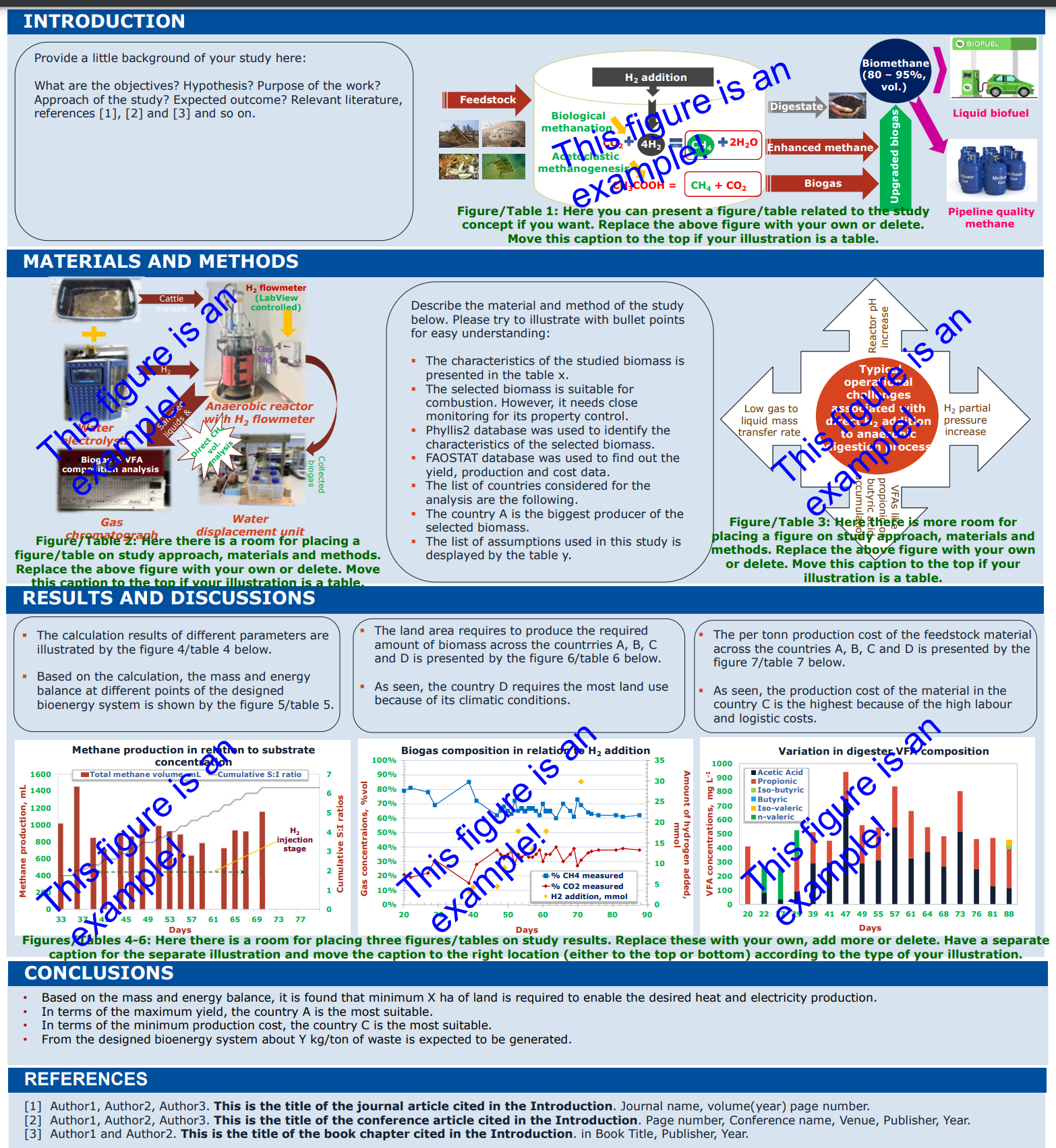

Prepare the one-page article or poster based on the list of items/content shown in the following
pdf template page. A power point version of this template will also be provided, which you
would be able to directly edit to make your own version, which can eventually be submitted.
Note that the texts found in the power point template are just the examples, and your actual
texts should not be the same as those;
Submit the one-page article either as a pdf report or as a pdf of the poster within the deadline.
Assumptions:
The biomass conversion to energy production is to be achieved by means of combustion,
through heat produced by the steam;
1 kg biomass/crop (i.e.,1 kg rice grain/1 kg wheat grain, etc.) generates 1 kg straw;
Combustion efficiency (\eta combustion) is 98%, boiler efficiency (\eta boiler) is 95%; thermal efficiency
(\eta thermal) is 80%, electrical efficiency (\eta elec) is 30%, and
Consider the following efficiency definition in your calculation: combustion efficiency = heat to
boiler/heat from biomass; boiler efficiency = heat to steam/heat to boiler; thermal efficiency =
work from the turbine/heat in steam; electrical efficiency = heat to electricity by a
generator/work from the turbine;
Generated flue gas is not condensed;
Produced price of grain is the same as produced price for straw;
Plant operational hours are 8000 hours/year.Provide a little background of your study here:
What are the objectives? Hypothesis? Purpose of the work?
Approach of the study? Expected outcome? Relevant literature,
references [1],[2] and [3] and so on.
Move this caption to the top if your illustration is a table.
MATERIALS AND METHODS
Describe the material and method of the study
below. Please try to illustrate with bullet points
for easy understanding:
The characteristics of the studied biomass is
presented in the table x.
The selected biomass is suitable for
combustion. However, it needs close
monitoring for its property control.
Phyllis2 database was used to identify the
characteristics of the selected biomass.
FAOSTAT database was used to find out the
yield, production and cost data.
The list of countries considered for the
analysis are the following.
The country A is the biggest producer of the
selected biomass.
figure/table on study approach, materials and methods.
Replace the above figure with your own or delete. Move
The list of assumptions used in this study is
desplayed by the table y.
this cantion to the ton if your illustration is a table.
RESULTS AND DISCUSSIONS
The calculation results of different parameters are
illustrated by the figure 4? table 4 below.
Based on the calculation, the mass and energy
balance at different points of the designed
bioenergy system is shown by the figure 5/table 5.
The land area requires to produce the required
amount of biomass across the countries A, B, C
and D is presented by the figure 6? table 6 below.
rigure/ I adie s: yere nepe is more room ror
placing a figure on study approach, materials and
methods. Replace the aboye figure with your own
or delete. Move this caption to the top if your
illustration is a table.
RESULTS AND DISCUSSIONS
CONCLUSIONS
Based on the mass and energy balance, it is found that minimum x ha of land is required to enable the desired heat and electricity production.
In terms of the maximum yield, the country A is the most suitable.
In terms of the minimum production cost, the country C is the most suitable.
From the designed bi
image text in transcribed
