Q 1 ( 1 0 0 Points ) It is required to design an Isothermal Packed Bed Reactor ( PBR ) to handle a gas

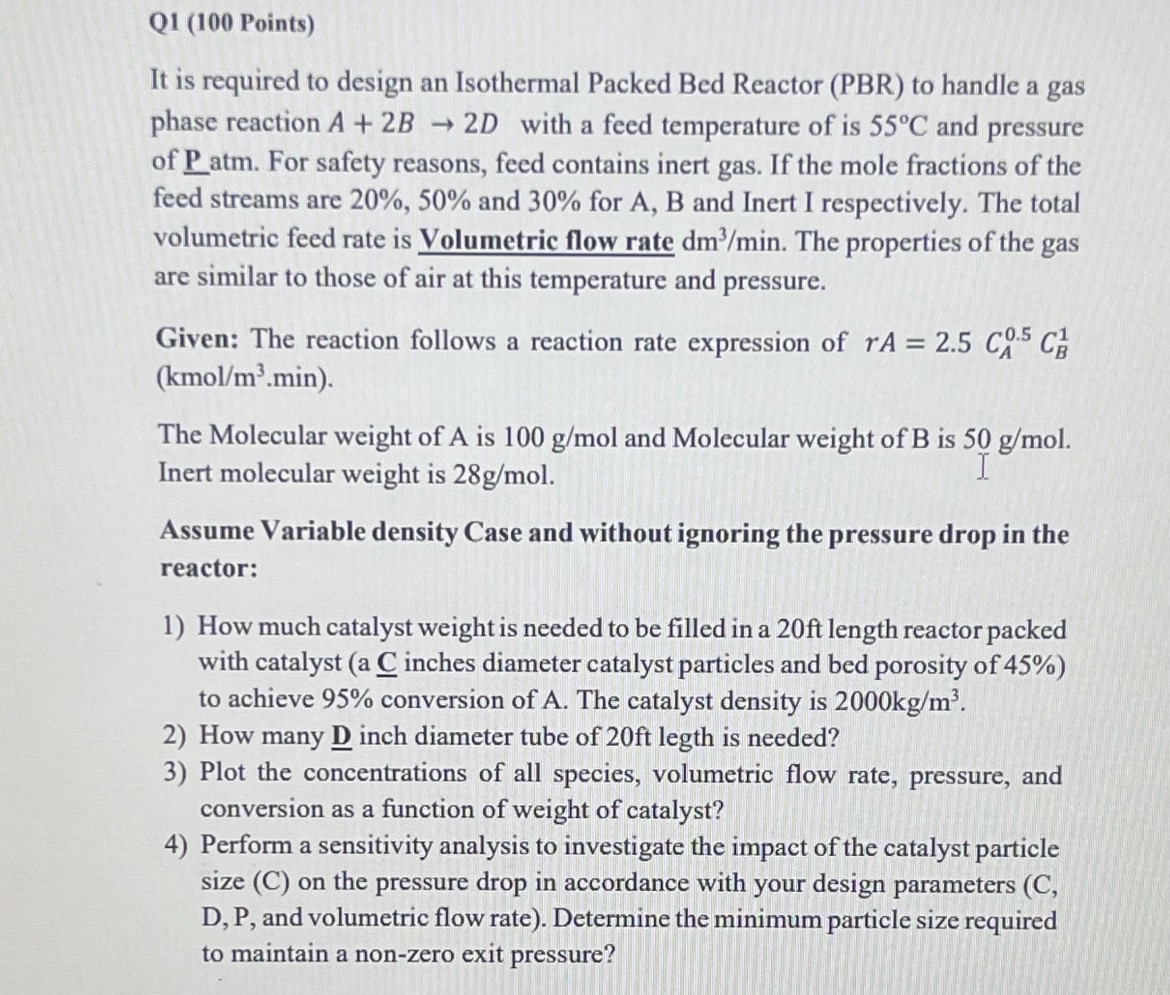

Q1(100 Points)
It is required to design an Isothermal Packed Bed Reactor (PBR) to handle a gas phase reaction A+2B2D with a feed temperature of is 55C and pressure of P atm. For safety reasons, feed contains inert gas. If the mole fractions of the feed streams are 20%,50% and 30% for A, B and Inert I respectively. The total volumetric feed rate is Volumetric flow rate dm3min. The properties of the gas are similar to those of air at this temperature and pressure.
Given: The reaction follows a reaction rate expression of rA=2.5CA0.5CB1((:kmolm3*min
image text in transcribed
