Question: Q 1 . For the vertical gate shown in Figure 1 , compute the magnitude and location of the resultant force exerted by the water

Q1. For the vertical gate shown in Figure 1, compute the magnitude and location of the resultant force
exerted by the water acting on the gate. The gate is 8m wide normal to the paper. Assume water is
15 i.e.w=9.798103Nm3.

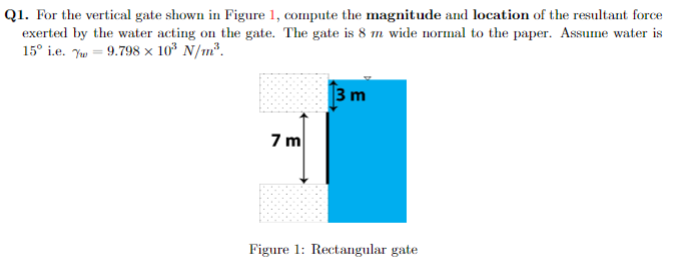

Figure 1: Rectangular gate
Q 1 . For the vertical gate shown in Figure 1 ,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
