Q1: (Modified version of textbook Chapter 6 Exercise Problem 12) Consider the 800x480 MTL2 LCD display, we may reduce the screen resolution to 100x60. A.

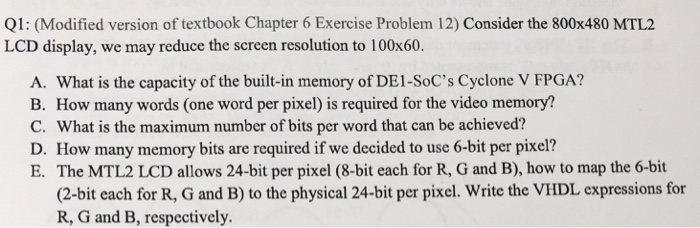

image text in transcribed
Q1: (Modified version of textbook Chapter 6 Exercise Problem 12) Consider the 800x480 MTL2 LCD display, we may reduce the screen resolution to 100x60. A. What is the capacity of the built-in memory of DE1-SoC's Cyclone V FPGA? B. How many words (one word per pixel) is required for the video memory? C. what is the maximum number of bits per word that can be achieved? D. How many memory bits are required if we decided to use 6-bit per pixel? E. The MTL2 LCD allows 24-bit per pixel (8-bit each for R, G and B), how to map the 6-bit (2-bit each for R, G and B) to the physical 24-bit per pixel. Write the VHDL expressions for R, G and B, respectively. Q1: (Modified version of textbook Chapter 6 Exercise Problem 12) Consider the 800x480 MTL2 LCD display, we may reduce the screen resolution to 100x60. A. What is the capacity of the built-in memory of DE1-SoC's Cyclone V FPGA? B. How many words (one word per pixel) is required for the video memory? C. what is the maximum number of bits per word that can be achieved? D. How many memory bits are required if we decided to use 6-bit per pixel? E. The MTL2 LCD allows 24-bit per pixel (8-bit each for R, G and B), how to map the 6-bit (2-bit each for R, G and B) to the physical 24-bit per pixel. Write the VHDL expressions for R, G and B, respectively
