Q2. Pls help! Please SHOW ALL WORK FOR EACH PART OF THE QUESTION AND ROUND TO 4 SIGNIFICANT FIGURES! This is for a timed exam

Q2. Pls help! Please SHOW ALL WORK FOR EACH PART OF THE QUESTION AND ROUND TO 4 SIGNIFICANT FIGURES! This is for a timed exam so please be legible! Will give thumbs up! Thanks

image text in transcribed

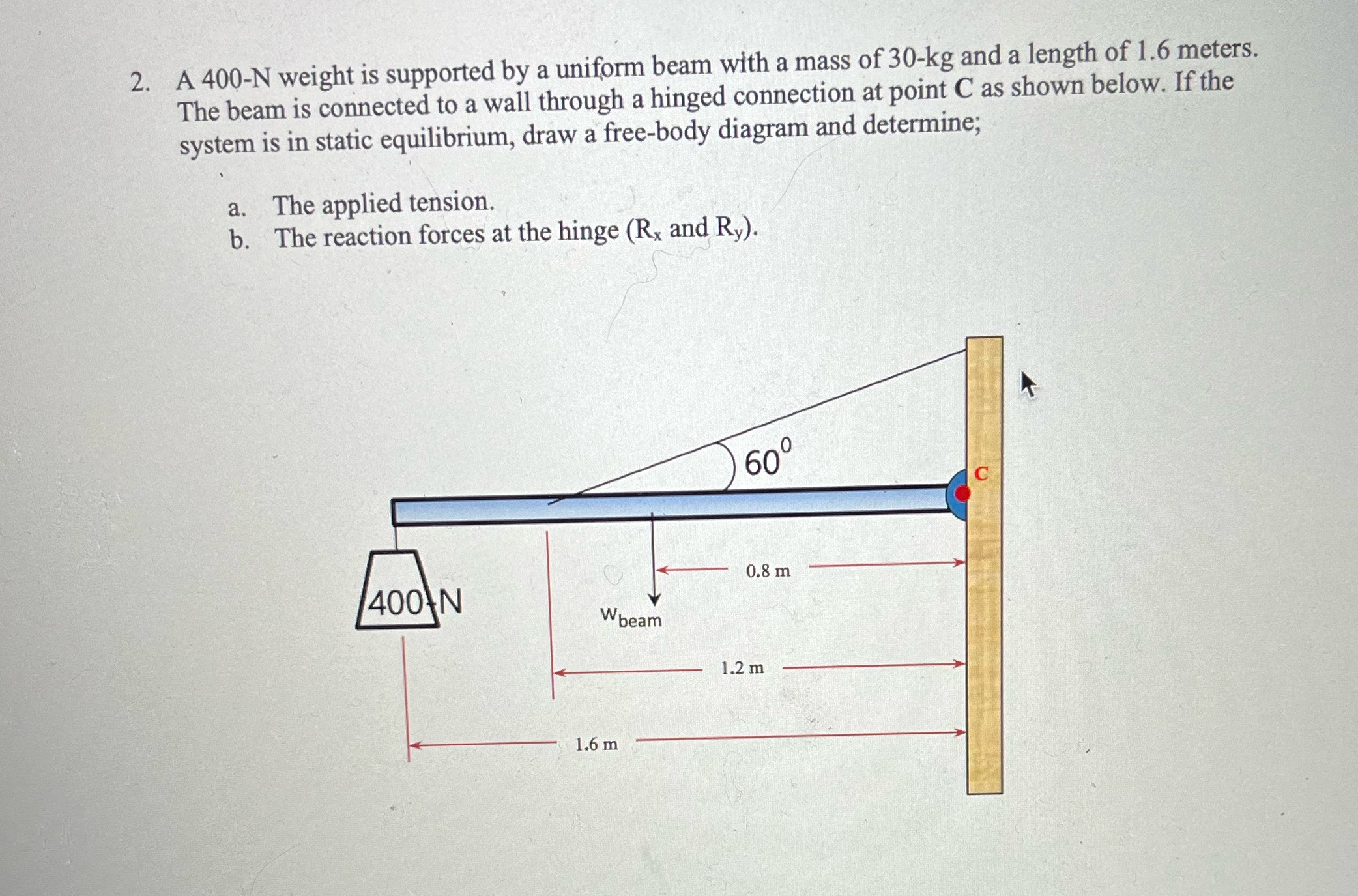

2. A 400-N weight is supported by a uniform beam with a mass of 30-kg and a length of 1.6 meters. The beam is connected to a wall through a hinged connection at point C as shown below. If the system is in static equilibrium, draw a free-body diagram and determine; a. The applied tension. b. The reaction forces at the hinge (Rx and Ry). 60 C 0.8 m 400 N Wbeam 1.2 m 1.6 m

Step by Step Solution

There are 3 Steps involved in it
