Q2. Three coplanar forces (forces that act within the same plane), A, B and C are all applied to a pin joint as shown in

image text in transcribed

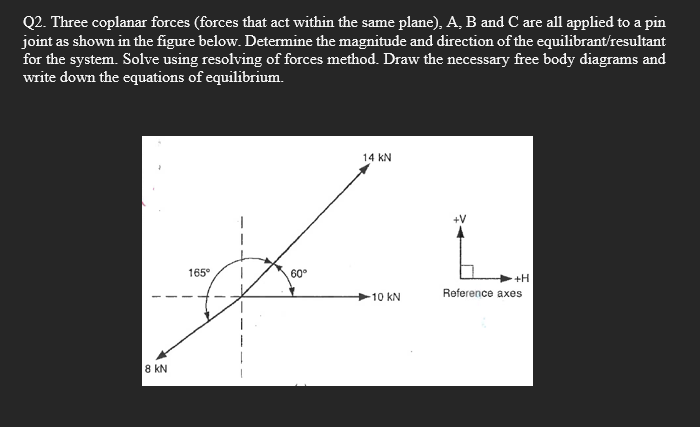

Q2. Three coplanar forces (forces that act within the same plane), A, B and C are all applied to a pin joint as shown in the figure below. Determine the magnitude and direction of the equilibrant/resultant for the system. Solve using resolving of forces method. Draw the necessary free body diagrams and write down the equations of equilibrium. 14 KN +V 1659 60 P-10 KN Reference axes 8 KN
