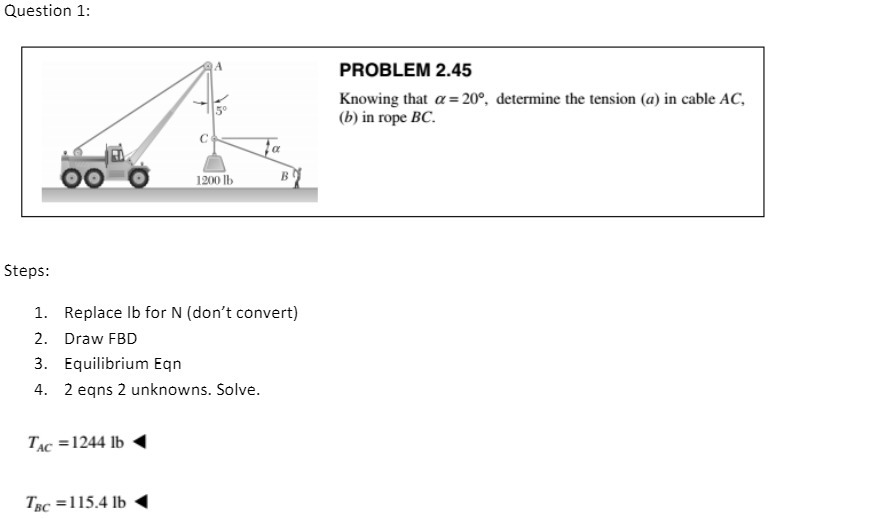

Question 1: A 5 1200 lb B Steps: 1. Replace lb for N (don't convert) 2. Draw FBD 3. Equilibrium Eqn 4. 2 eqns

Question 1: A 5 1200 lb B Steps: 1. Replace lb for N (don't convert) 2. Draw FBD 3. Equilibrium Eqn 4. 2 eqns 2 unknowns. Solve. TAC = 1244 lb TBC = 115.4 lb PROBLEM 2.45 Knowing that a=20, determine the tension (a) in cable AC, (b) in rope BC.
