QUESTION 1 A capacitor in a simple series circuit takes approximately how long to reach steady state? O gt 2 or i ENRC) RC QUESTION

image text in transcribedimage text in transcribedimage text in transcribedimage text in transcribed

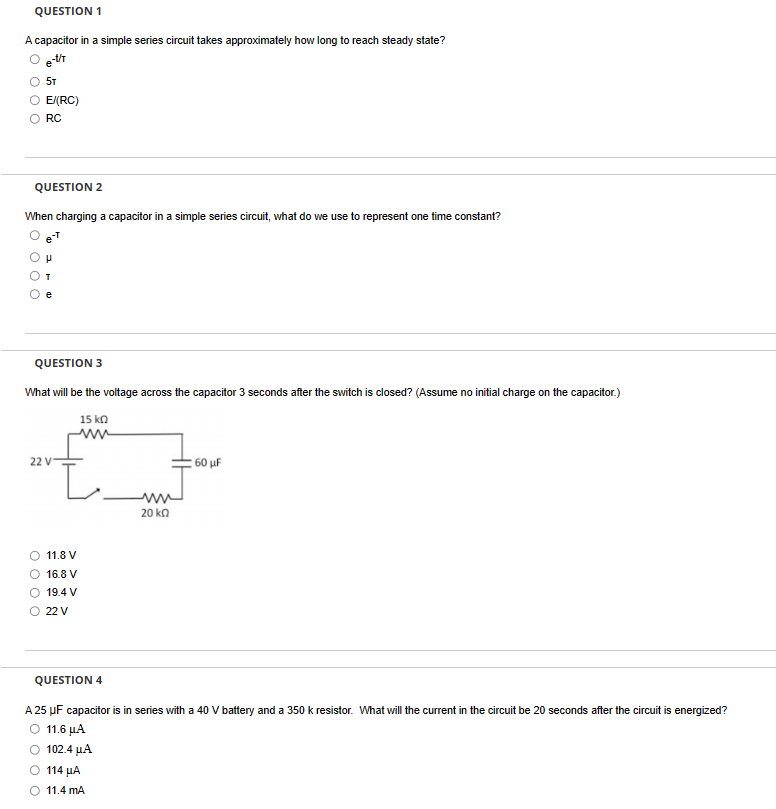

QUESTION 1 A capacitor in a simple series circuit takes approximately how long to reach steady state? O gt 2 or i ENRC) RC QUESTION 2 When charging a capacitor in a simple senes circuit, what do we use te represent one fime constant? Oy T - o = = QUESTION 3 What will be the voltage across the capacitor 3 seconds after the switch is closed? (Assume no initial charge on the capacitor.) 15 k0 o Mawv 168 194V 22N QUESTION 4 A.25 UF capacitor is in series with a 40 W battery and a 350 k resistor. What will the current in the circuit be 20 seconds after the circuit is energized? 2116 pA 1024 uA O 114 pA 0 11.4 ma QUESTION 5 A 240 pF capacitor is in series with a 22 V battery and a 35 k resistor. How long will it take the capacitor to fully charge? O 8.4 US O 42 US O 840 US O 42 ms QUESTION 6 A 240 pF capacitor is in series with a 22 V battery and a 35 k resistor. After the circuit is energized, how much time will pass before there are 17.5 V across the capacitor? O 3.11 US O 8.45 Us O 13.33 us O 21.09 Us QUESTION 7 How long will it take the capacitor to fully charge after the switch is closed? R = 300 kQ 8 V C = 150 HF O 45 seconds O 60 seconds O 3 minutes 45 seconds O 6 minutesQUESTION 8 What will be the voltage across each capacitor 10 seconds after the switch is closed? (There is no initial charge on the capacitor.) 500 kQ 3 V 15 ULF 15 UF O 1.46 V O 1.88 V O 2.09 V O 2.55 V QUESTION 9 How much time will pass until the capacitor charges to 18 V? 15 kQ 22 V -60 UF 20 kQ O 1.46 seconds O 3.58 seconds O 8.38 seconds O 17.18 secondsQUESTION 10 How long will it take for the capacitor to fully charge? 150 kQ 100 UF 12 V 100 UF L 100 kQ O 125 s O 37.5s 0 62 5 s O 250 s
