Question 2 : [ 2 0 points ] Consider a CPU which has 2 0 bit wide instructions interfaced to a memory in which each

Question 2: [20 points]
Consider a CPU which has 20 bit wide instructions interfaced to a memory in which each location
is 40 bits wide (see Figure 2 next page). This means every location in main memory contains 2
separate program instructions. If we have 4 words in main memory, a total of 8 instructions may
be stored in this memory. A 3-bit Program Counter is necessary to access each of these 8 instructions. A 2-bit wide Memory Address Register will suffice to address the 4 words. A 20-bit wide
Instruction Register is needed to store an instruction. Give the details of the mystery component hardware which is needed so that the Instruction Register is loaded with the appropriate
instruction. Formulate a procedure which may be used to FETCH and EXECUTE instructions on
this organization. Express your procedure similar to what we have done in class, i.e.:
T0: load MAR with PC
T1: read from memory and load instruction into IR
T2: execute the instruction
...
Of course, this is only meant as an example, your solution will be different. You may assume that
the execute phase of an instruction may be done in one clock cycle, you do not have to show the
details of the execute phase. We are interested in the procedure used to successively load the
Instruction Register with the low-order and high-order 20-bit instructions stored in a given 40-bit
word stored in one location of the memory.

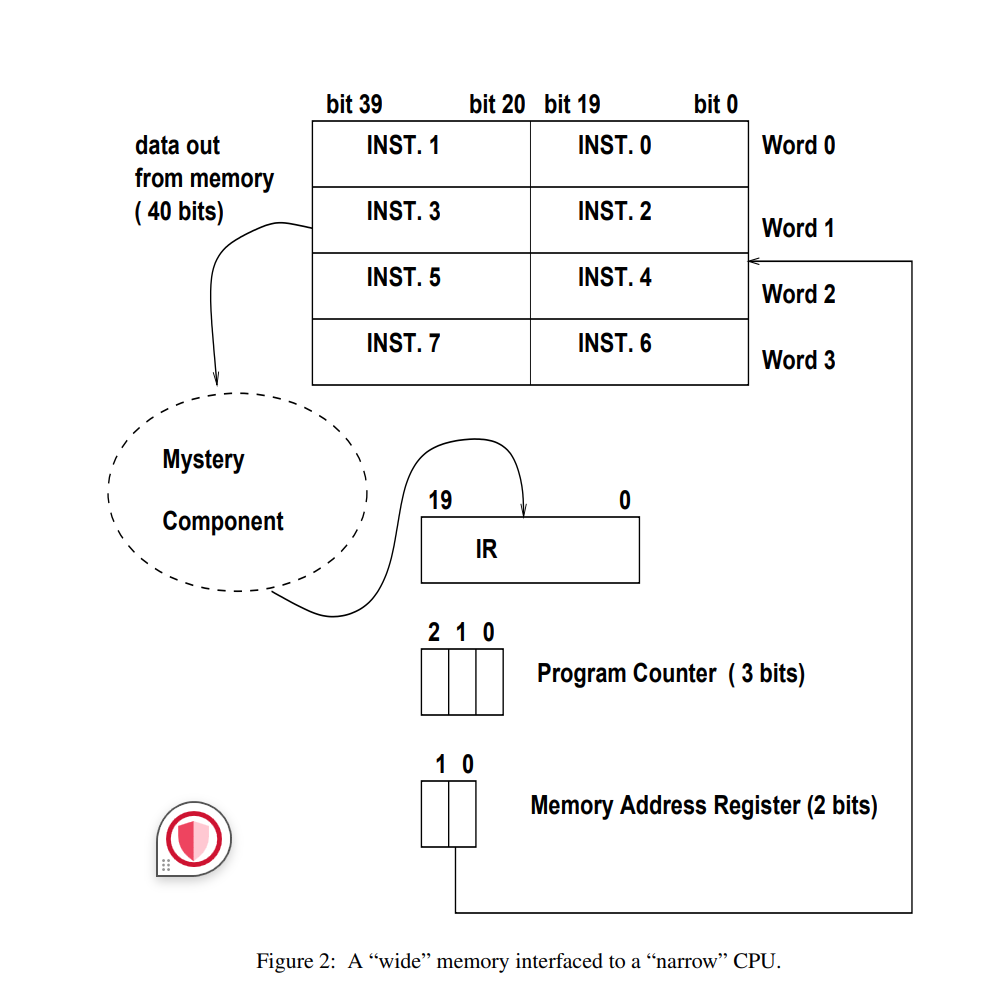

I need the Fetch-execute cycle to be written in Register Transfer notation. can you please cinsider this while solving the question. here is the provided photo. Figure 2: A "wide" memory interfaced to a "narrow" CPU.
