Question 9: Suppose the interconnected LAN structure shown in Figure 4.20 is part of a building network. Assume that hosts 1 through 6, respectively, are assigned the following MAC addresses: 1124-C2-25-78-90, DD-34-93-1D-CC-BC, 00-40-33-40-1B-2C, 00-40-33-25-85-BB, 00-40-33-25-85-BC, and 00-C0-96-25-45-C7. Show the organization of the switch S2 routing table for which the input entry is: Destination (Host, MAC Address); and the two types of output entries are: From LAN 1 (Next LAN, Switch Port Number) and From LAN 4 (Next LAN, Switch Port Number). Host Host 2 Host 3 Host 4 LAN LAN 2 Host 5 Layer 2 Switch S1 Port Number LAN 3 S4 S2 6 Host 6 S3 LAN 4 Figure 4 network of LA please with explain Show transcribed image text

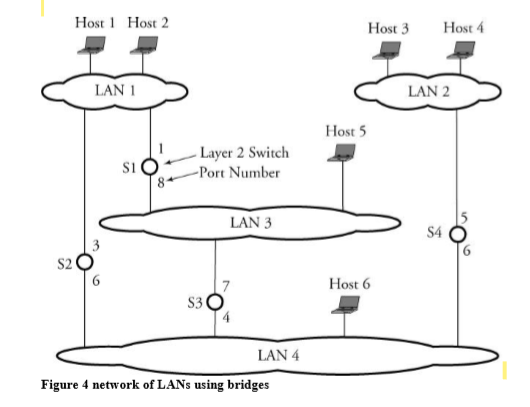

Host Host 2 Host 3 Host 4 LAN LAN 2 Host 5 Layer 2 Switch S1 Port Number LAN 3 S4 S2 6 Host 6 S3 LAN 4 Figure 4 network of LANs using bridges Host Host 2 Host 3 Host 4 LAN LAN 2 Host 5 Layer 2 Switch S1 Port Number LAN 3 S4 S2 6 Host 6 S3 LAN 4 Figure 4 network of LANs using bridges
