Question: i. A cyclotron (see figure below) designed to accelerate protons has an outer radius of 0.345 m. The protons are emitted nearly at rest

image text in transcribedimage text in transcribedimage text in transcribed

Question:

i.

image text in transcribedimage text in transcribedimage text in transcribedimage text in transcribed

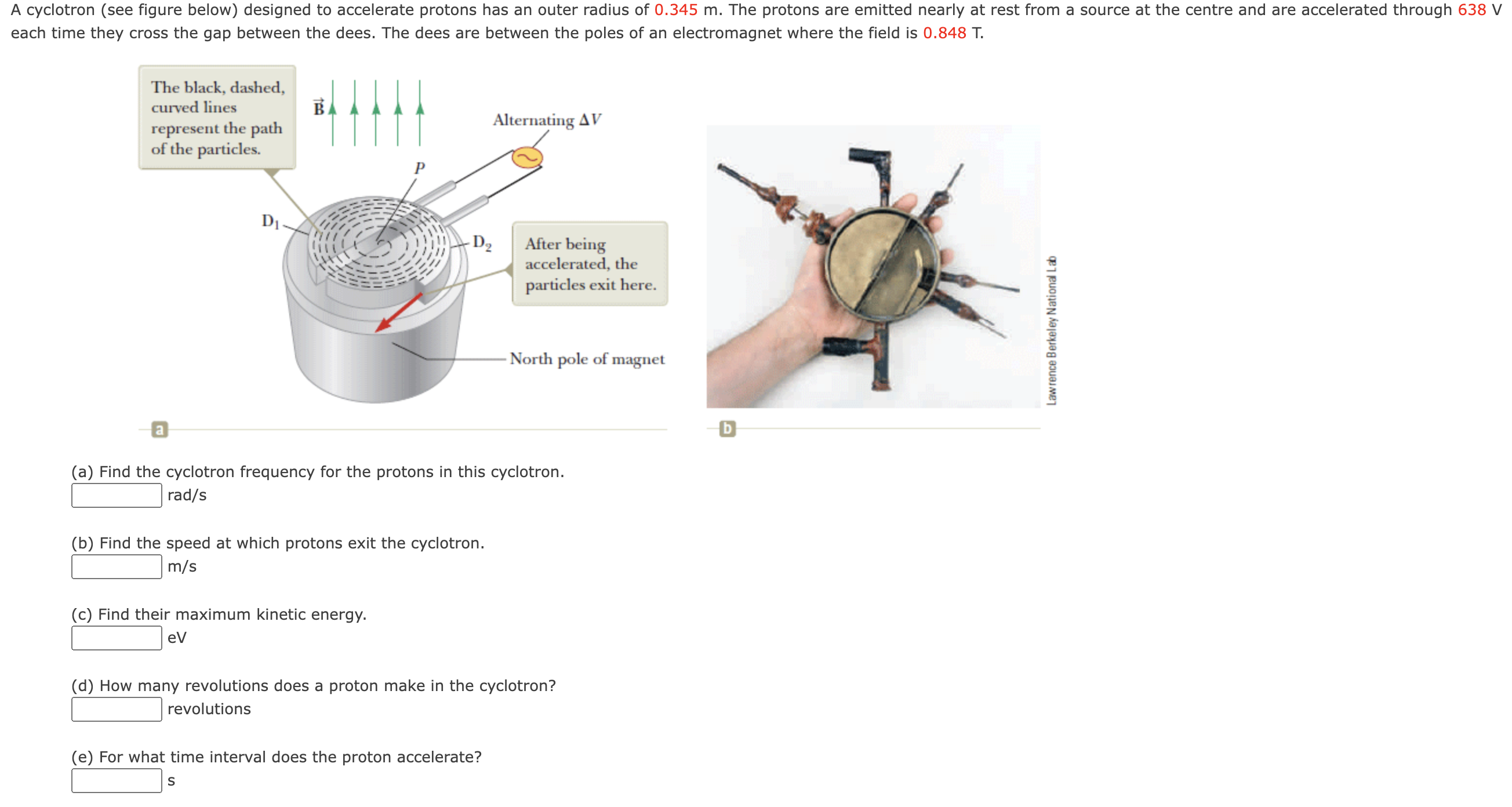

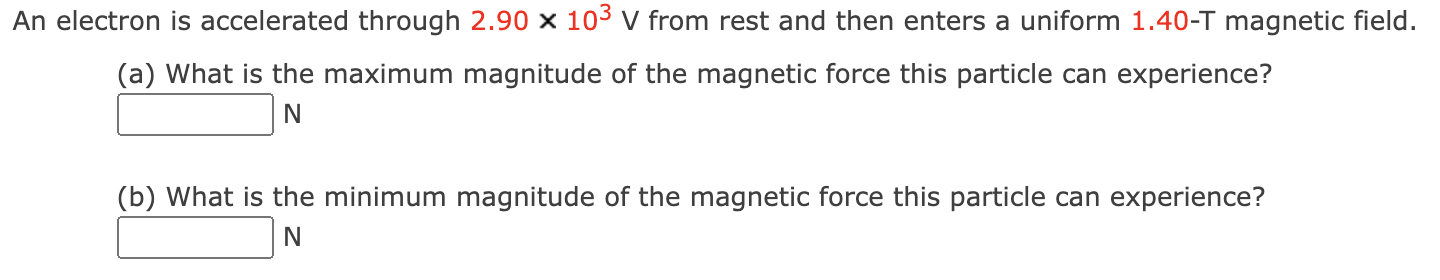

A cyclotron (see figure below) designed to accelerate protons has an outer radius of 0.345 m. The protons are emitted nearly at rest from a source at the centre and are accelerated through 638 V each time they cross the gap between the dees. The dees are between the poles of an electromagnet where the eld is 0.848 T. The black, dashed, curved lines 3 represent the path of the particles. Alternating AV After being accelerated, the particle: exit here. North pole of magnet Lawrence Berkeley Nalinnd la (a) Find the cyclotron frequency for the protons in this cyclotron. rad/s (b) Find the speed at which protons exit the cyclotron. m/s (c) Find their maximum kinetic energy. :ev (d) How many revolutions does a proton make in the cyclotron? revolutions (e) For what time interval does the proton accelerate? :5 A velocity selector consists of electric and magnetic fields described by the expressions E = Ek and B = Bj, with B = 21.0 mT. Find the value of E such that a 760 eV electron moving in the negative x rection is undeflected.An electron is accelerated through 2.90 x 103 V from rest and then enters a uniform 1.40-T magnetic field. (a) What is the maximum magnitude of the magnetic force this particle can experience? :lN (b) What is the minimum magnitude of the magnetic force this particle can experience? :1\" A cosmicray proton in interstellar space has an energy of 21.5 MeV and executes a circular orbit having a radius equal to that of Venus' orbit around the Sun (1.08 x 1011 m). What is the magnetic field in that region of space
