Section I Part 2 For online Groups during Shop Session Please be advised Assignment 1 has 2 sections as explained, Section I writing manual

image text in transcribed

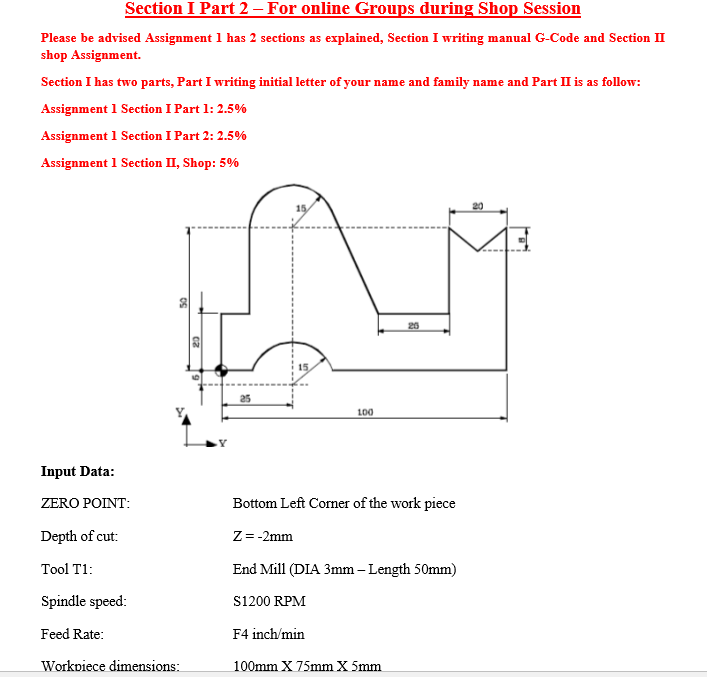

Section I Part 2 For online Groups during Shop Session Please be advised Assignment 1 has 2 sections as explained, Section I writing manual G-Code and Section II shop Assignment. Section I has two parts, Part I writing initial letter of your name and family name and Part II is as follow: Assignment 1 Section I Part 1: 2.5% Assignment 1 Section I Part 2: 2.5% Assignment 1 Section II, Shop: 5% 50 02 25 15 15. 100 20 Input Data: ZERO POINT: Depth of cut: Tool T1: Spindle speed: Feed Rate: Workpiece dimensions: Bottom Left Corner of the work piece Z = -2mm End Mill (DIA 3mm-Length 50mm) $1200 RPM F4 inch/min 100mm X 75mm X 5mm
