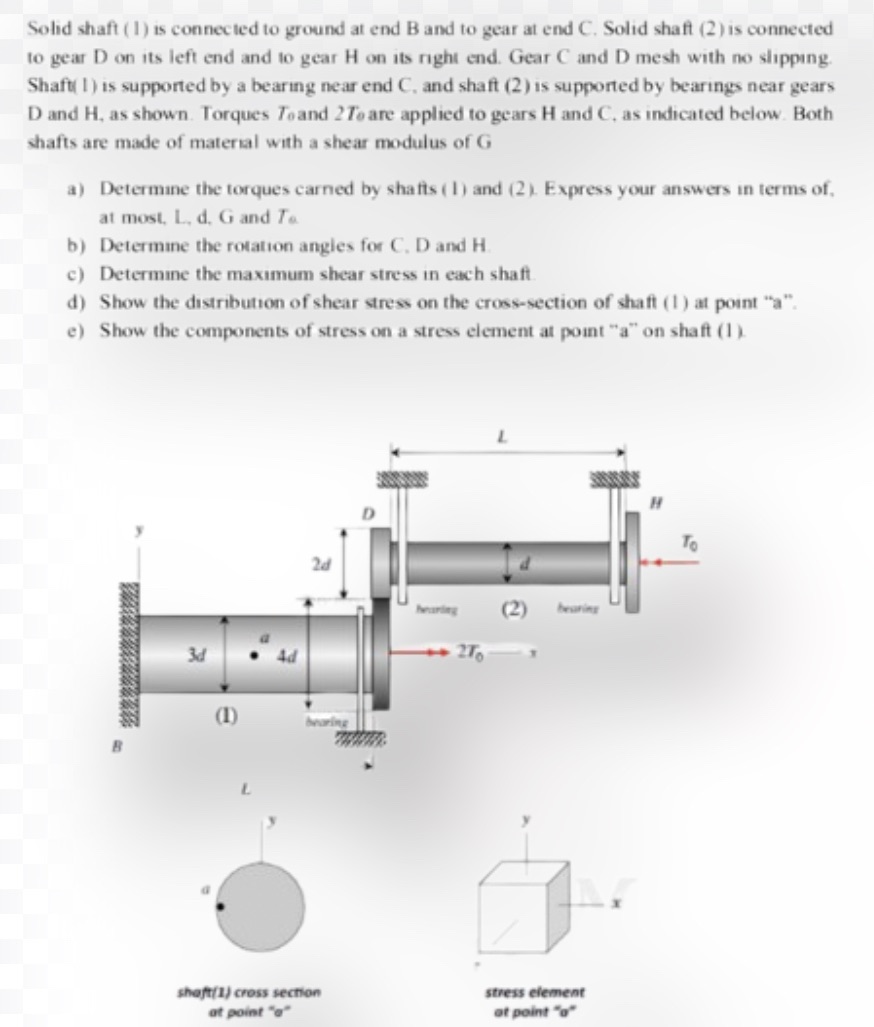

Solid shaft (1) is connected to ground at end B and to gear at end C. Solid shaft (2) is connected to gear D
Solid shaft (1) is connected to ground at end B and to gear at end C. Solid shaft (2) is connected to gear D on its left end and to gear H on its right end. Gear C and D mesh with no slipping. Shaft(1) is supported by a bearing near end C, and shaft (2) is supported by bearings near gears D and H, as shown. Torques To and 2To are applied to gears H and C, as indicated below. Both shafts are made of material with a shear modulus of G a) Determine the torques carned by shafts (1) and (2). Express your answers in terms of. at most, L, d. G and To b) Determine the rotation angles for C, D and H. c) Determine the maximum shear stress in each shaft. d) Show the distribution of shear stress on the cross-section of shaft (1) at point "a". e) Show the components of stress on a stress element at point "a" on shaft (1) 3d 2d (1) bearing shaft(1) cross section at point "a" (2) bearing 2T stress element at point "a" H
