Solve all complete solutions

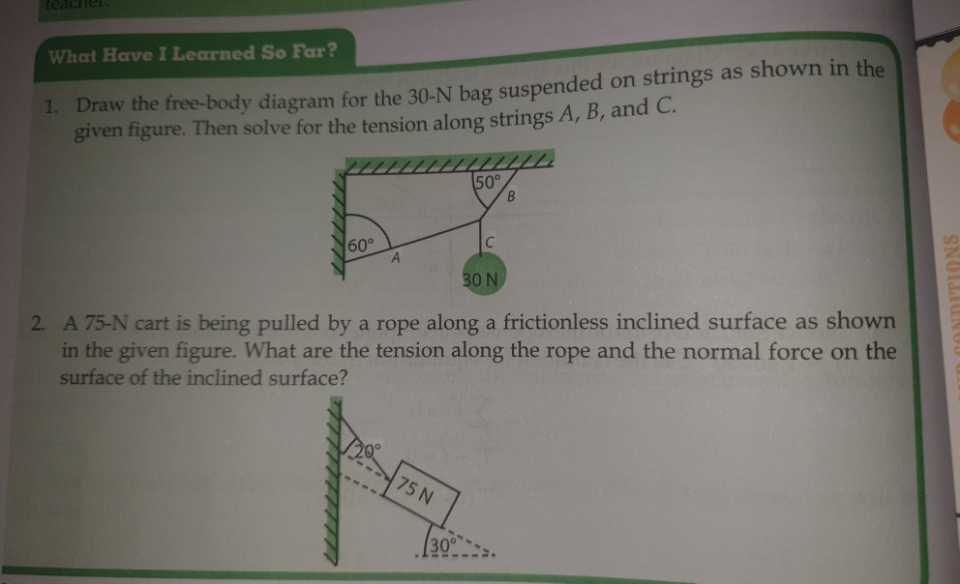

What Have I Learned So Far? 1. Draw the free-body diagram for the 30-N bag suspended on strings as shown in the given figure. Then solve for the tension along strings A, B, and C. 50 B 60 C 30 N 2. A 75-N cart is being pulled by a rope along a frictionless inclined surface as shown in the given figure. What are the tension along the rope and the normal force on the surface of the inclined surface? 20 75 N 300-changes in ti What Have I Learned So Far? There are two carts hanging on a string that weigh 5 kg and 10 kg through a frictionles pulley as shown in the given figure. 5.0 kg 10.0 kg 30 1. What is the tension along the string? 2. Describe the acceleration of the two blocks. 3. Suppose the system is initially at rest with the heavier block at 2.5 meters above the ground. How long will it take for this block to reach the ground? 4. What is the velocity of the heavier block before it hits the ground?What Have I Learned So Far? Look at the following figures here. Identify the action-reaction forces in each figure. Write your answers on a sheet of paper. air resistance push AYAN BAL weight (a) ( b ) (c ) (d)
