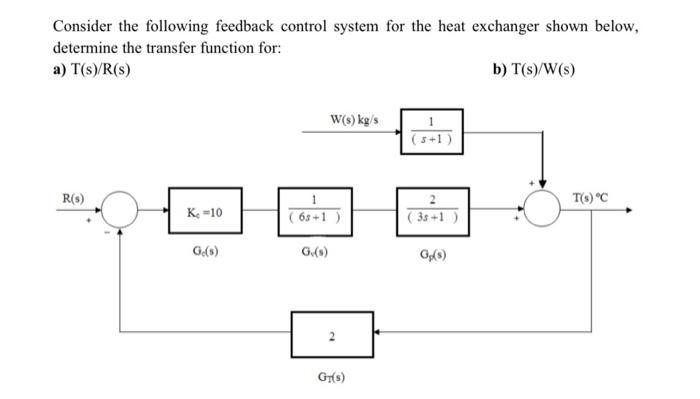

Question: Solve the following equation Consider the following feedback control system for the heat exchanger shown below, determine the transfer function for: a) T(s)/R(s) b) T(s)/W(s)

Solve the following equation Solve the following equation Consider the following feedback control system for the

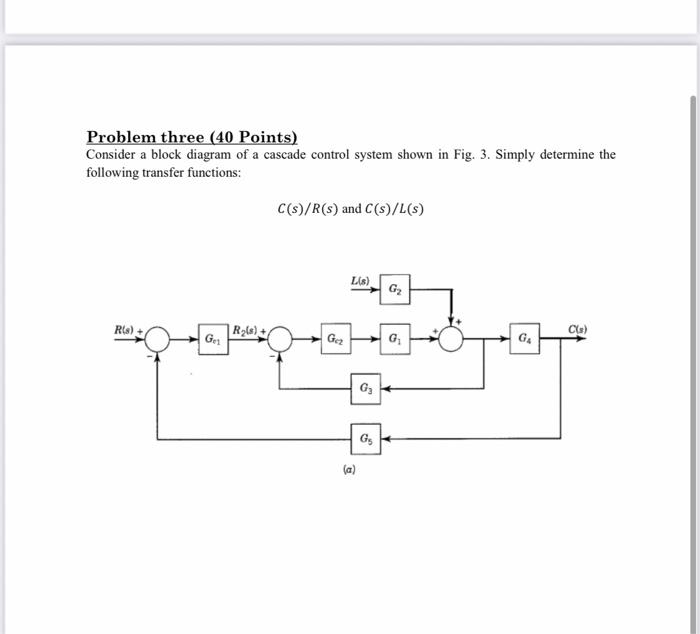

Consider the following feedback control system for the heat exchanger shown below, determine the transfer function for: a) T(s)/R(s) b) T(s)/W(s) Problem three (40 Points) Consider a block diagram of a cascade control system shown in Fig. 3. Simply determine the following transfer functions: C(s)/R(s) and C(s)/L(s) Consider the following feedback control system for the heat exchanger shown below, determine the transfer function for: a) T(s)/R(s) b) T(s)/W(s) Problem three (40 Points) Consider a block diagram of a cascade control system shown in Fig. 3. Simply determine the following transfer functions: C(s)/R(s) and C(s)/L(s)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
