Some things I know about this project so far.

Running the code first, to see how the game currently operates.

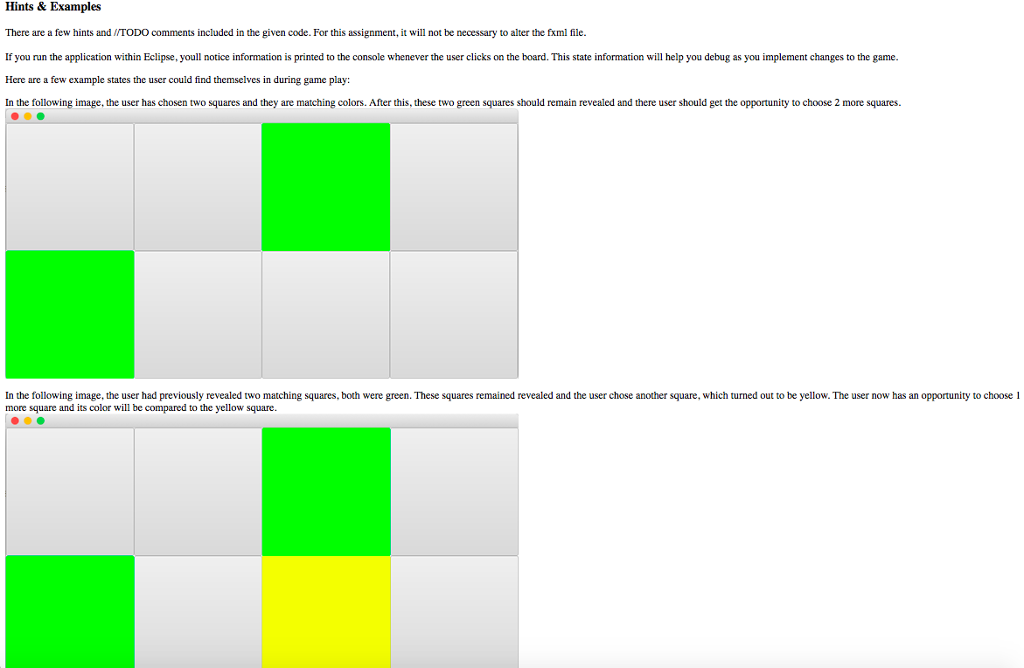

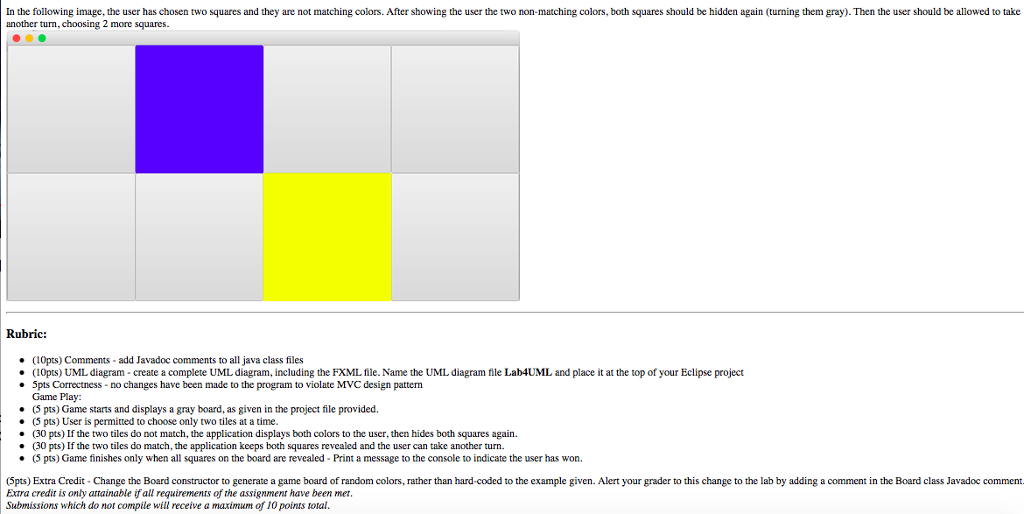

Implement just one requirement at a time. For example, try implementing the case where after the user clicks 2 squares, both squares are hidden. (Then implement the other cases).

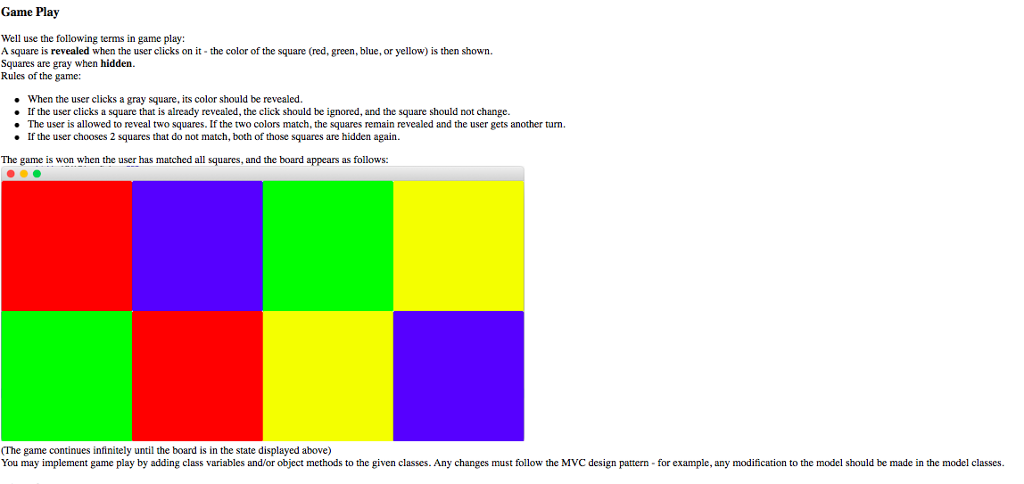

In the game, the user clicks two squares at a time. Both colors are shown, but if they don't match they are hidden again. Need help finishing and getting the objective done.

___________________________________________________________

Lab4.java

___________________________________________________________

package application; import javafx.application.Application; import javafx.fxml.FXMLLoader; import javafx.stage.Stage; import javafx.scene.Parent; import javafx.scene.Scene;

/** * Memory Game * This application is a basic memory game. The user is shown a 2x4 grid of gray squares. * A square is "revealed" when the user clicks on it - the color of the square is then shown. * Squares are gray when "hidden", and can be red, green, blue, or yellow when shown. * * The user begins by revealing 2 squares. If both squares are the same color, the squares * remain shown, otherwise the squares are hidden again (and turn gray). * * The game ends when the user has matched all of the squares (all colors are shown). */ public class Lab4 extends Application { @Override public void start(Stage primaryStage) { try { // Load the FXML file for the game board Parent root = FXMLLoader.load(getClass().getResource("/board.fxml")); // Set the scene onto the stage primaryStage.setScene(new Scene(root, 800, 400)); // Display the board to the user primaryStage.show(); } catch(Exception e) { e.printStackTrace(); } } public static void main(String[] args) { // Launches the application (calls start method in the process) launch(args); } }

___________________________________________________________

MainController.java

___________________________________________________________

package application.controller;

import application.model.Board; import javafx.concurrent.Task; import javafx.concurrent.WorkerStateEvent; import javafx.event.ActionEvent; import javafx.event.EventHandler; import javafx.fxml.FXML; import javafx.scene.control.Button;

public class MainController implements EventHandler{

@FXML Button zero0, zero1, zero2, zero3, one0, one1, one2, one3; private Board gameBoard = new Board();

@Override public void handle(ActionEvent event) { Button selected = (Button) event.getSource(); System.out.println("User selected square: " + selected.toString()); String color = gameBoard.reveal(selected.getId()); if( color!=null ) selected.setStyle("-fx-background-color: #" + color ); sleep( selected, 1 ); // NEW System.out.println( gameBoard ); } /** * Sleep method handles waiting for some period of time before changing * the color of the given Button back to default (light gray color). * * @param selected Button clicked by the user * @param seconds Integer value of number of seconds to sleep */ public void sleep( Button selected, int seconds ) { Task sleeper = new Task() { @Override protected Void call() throws Exception { try { Thread.sleep(seconds*1000); } catch (InterruptedException e) { e.printStackTrace(); } return null; } }; EventHandler e = new EventHandler() { @Override public void handle(WorkerStateEvent event) { selected.setStyle(""); } }; sleeper.setOnSucceeded( e ); new Thread(sleeper).start(); } }

___________________________________________________________

Board.java

___________________________________________________________

package application.model;

import javafx.scene.paint.Color;

public class Board { private Square[][] squares; public Board() { this.squares = new Square[2][4]; squares[0][0] = new Square(Color.RED); squares[0][1] = new Square(Color.BLUE); squares[0][2] = new Square(Color.GREEN); squares[0][3] = new Square(Color.YELLOW); squares[1][0] = new Square(Color.GREEN); squares[1][1] = new Square(Color.RED); squares[1][2] = new Square(Color.YELLOW); squares[1][3] = new Square(Color.BLUE); } public void hide( int x, int y ) { // TODO: Hide the given square // Hint: call the corresponding method in the Square class to help you hide it. } public void hideBoth() { // TODO: Hide both squares - the user's 1st & 2nd choices this round // Hint: this should be called if no match is found // Hint 2: this method should call a hide method twice, one for each square. } public boolean matchFound() { // TODO: Check to see if a match is found, and return true if so return false; } public String reveal( String buttonName ) { int x = buttonName.startsWith("zero") ? 0 : 1; int y; if( buttonName.endsWith("zero") ) y = 0; else if( buttonName.endsWith("one") ) y = 1; else if( buttonName.endsWith("two") ) y = 2; else y = 3; return this.reveal(x,y); } public String reveal( int x, int y ) { squares[x][y].reveal(); return squares[x][y].getColorAsCode(); } /** * ToString method returns a String representation of the current state of the game board. * * @return String Board colors currently revealed. */ public String toString() { String ret = squares[0][0] + ", " + squares[0][1] + ", "; ret += squares[0][2] + ", " + squares[0][3] + " "; ret += squares[1][0] + ", " + squares[1][1] + ", "; ret += squares[1][2] + ", " + squares[1][3]; return ret; } }

___________________________________________________________

Square.java

___________________________________________________________

package application.model;

import javafx.scene.paint.Color;

public class Square {

private boolean isDisplayed; private Color color; private static final String BLUE = "0000FF"; private static final String GREEN = "00FF00"; private static final String RED = "FF0000"; private static final String YELLOW = "FFFF00"; public Square( Color c ) { this.color = c; this.isDisplayed = false; } public Color getDisplayedColor() { if( this.isDisplayed() ) return this.getColor(); else return Color.GRAY; } public Color getColor() { return this.color; } public boolean isDisplayed() { return isDisplayed; } public void hide() { this.isDisplayed = false; } public void reveal() { this.isDisplayed = true; } public String getColorAsCode() { if( !isDisplayed() ) return Color.GRAY.toString(); if( color.equals(Color.RED) ) return RED; else if( color.equals(Color.GREEN) ) return GREEN; else if( color.equals(Color.BLUE) ) return BLUE; else return YELLOW; } public String getColorAsString() { if( !isDisplayed() ) return "GRAY"; if( color.equals(Color.YELLOW) ) return "YELLOW"; else if( color.equals(Color.GREEN) ) return "GREEN"; else if( color.equals(Color.BLUE) ) return "BLUE"; else if( color.equals(Color.RED) ) return "RED"; else return "GRAY"; } public String toString() { return this.getColorAsString(); } }

___________________________________________________________

board.fxml

___________________________________________________________

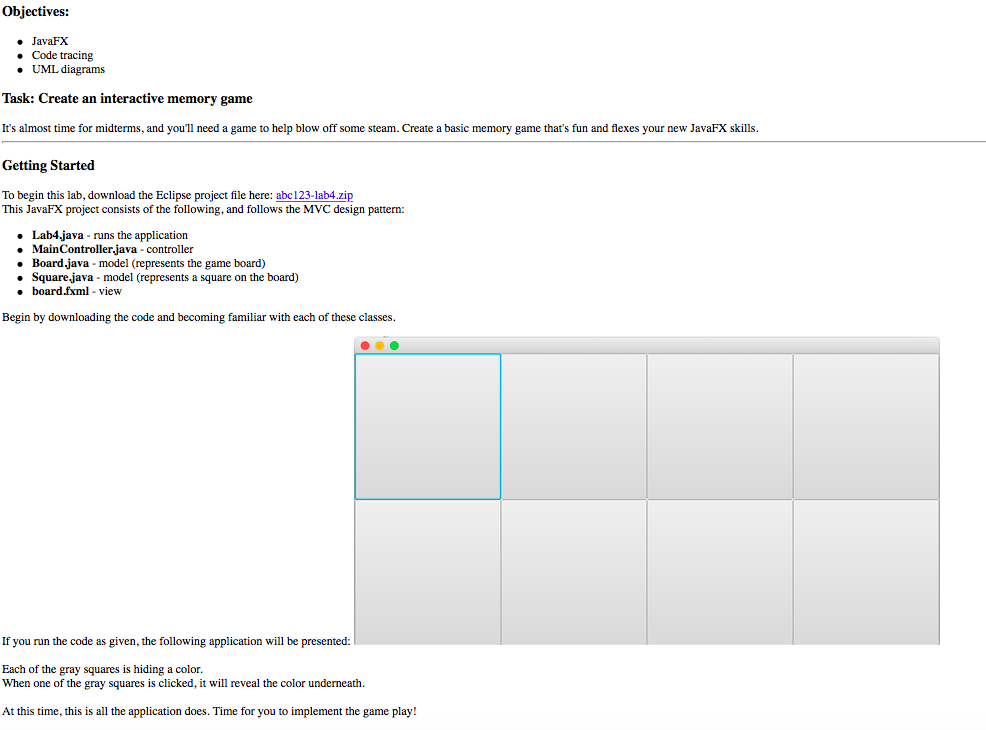

Objectives: JavaFX Code tracing UML diagrams Task: Create an interactiv memoryame It's almost time for midterms, and you'll need a game to help blow off some steam. Create a basic memory game that's fun and flexes your new JavaFX skills Getting Started To begin this lab, download the Eclipse project file here: abc123-lab4.zip This JavaFX project consists of the following, and follows the MVC design pattern: Lab4.java runs the application MainController.java controller Board.java - model (represents the game board) model (represents a square on the board) . board.fxml-view Begin by downloading the code and becoming familiar with each of these classes. If you run the code as given, the following application will be presented: Each of the gray squares is hiding a color. When one of the gray squares is clicked, it will reveal the color underneath. At this time, this is all the application does. Time for you to implement the game play
