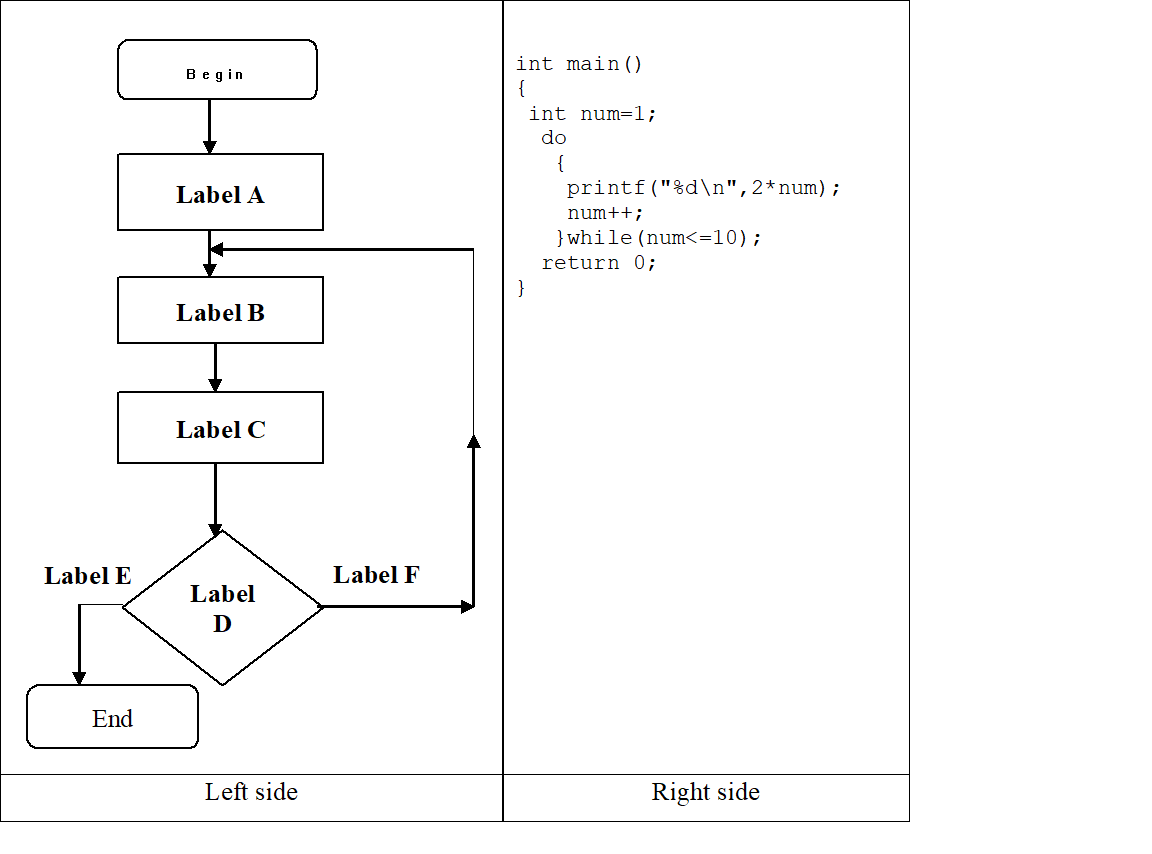

Study the following sample C code located on the right side and a flowchart diagram located on the left side. They are closely related to

Study the following sample C code located on the right side and a flowchart diagram located on the left side. They are closely related to each other.

(i) What is the name of the looping structure utilized in the C code of Figure 1? [1 mark]

(ii) Identify each answer for each Label A, Label B, Label C, Label D, Label E and Label F in the flowchart diagram on the left. You can refer to the C code on the right. [7 marks]

*for example: Label A = int y;

(ii) The shape of flowchart used in writing the answer for Label B is wrong. What is the correct shape of flowchart for Label B.? [1 mark]

image text in transcribed

Begin int main() { int num=1; do { printf("%d ", 2*num); num++; } while (num
