SUBJECT: GENERAL PHYSICS LESSON: VECTORS A. Accurately draw scaled vector diagram to represent the magnitude and direction of the following vectors on a graphing paper.

SUBJECT: GENERAL PHYSICS

LESSON: VECTORS

image text in transcribed

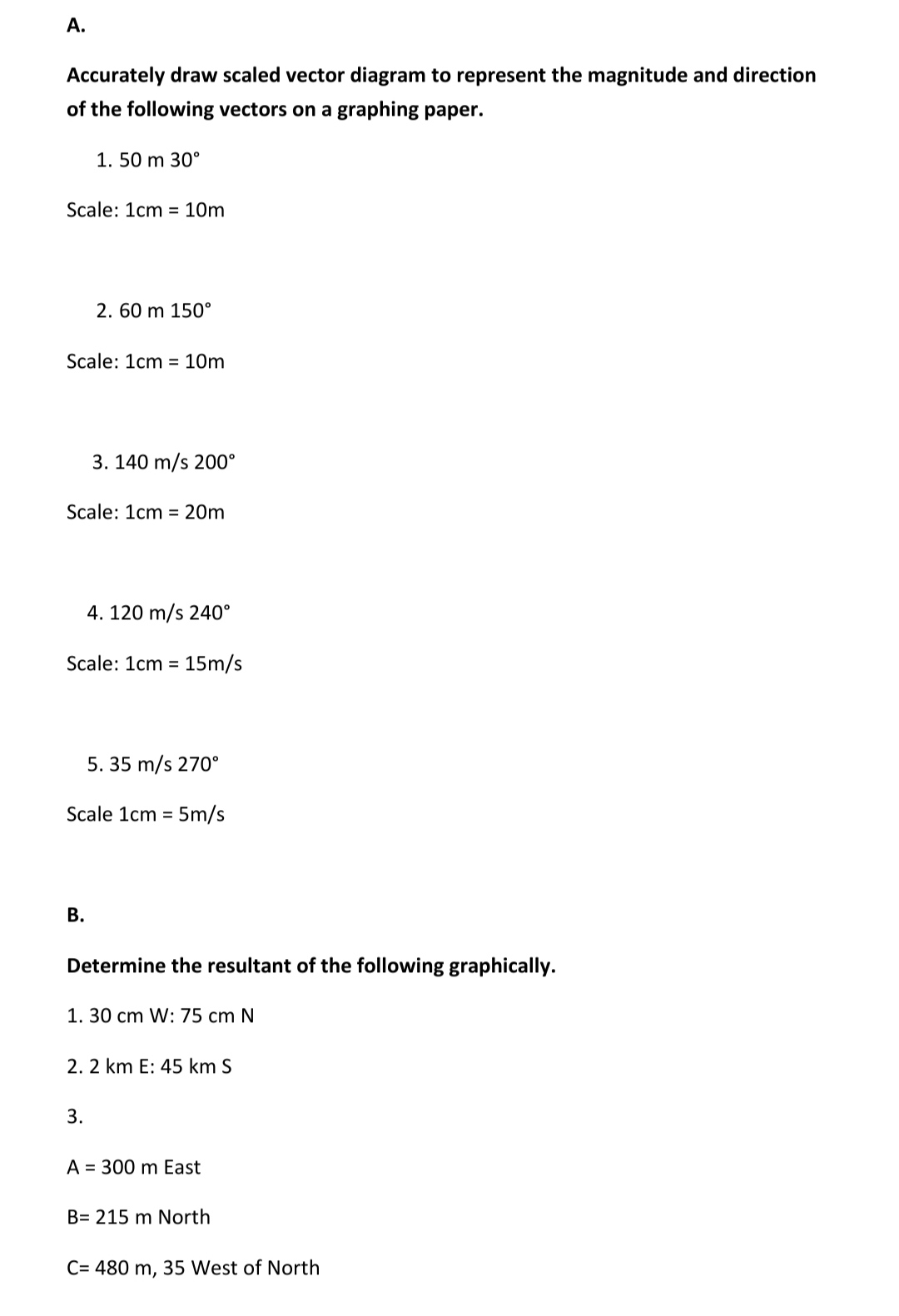

A. Accurately draw scaled vector diagram to represent the magnitude and direction of the following vectors on a graphing paper. 1. 50 m 30 Scale: 1cm = 10m 2. 60 m 150 Scale: 1cm = 10m 3. 140 m/s 200 Scale: 1cm = 20m 4. 120 m/s 240 Scale: 1cm = 15m/s 5. 35 m/s 270 Scale 1cm = 5m/s B. Determine the resultant of the following graphically. 1. 30 cm W: 75 cm N 2. 2 km E: 45 km S 3. A = 300 m East B= 215 m North C= 480 m, 35 West of North
