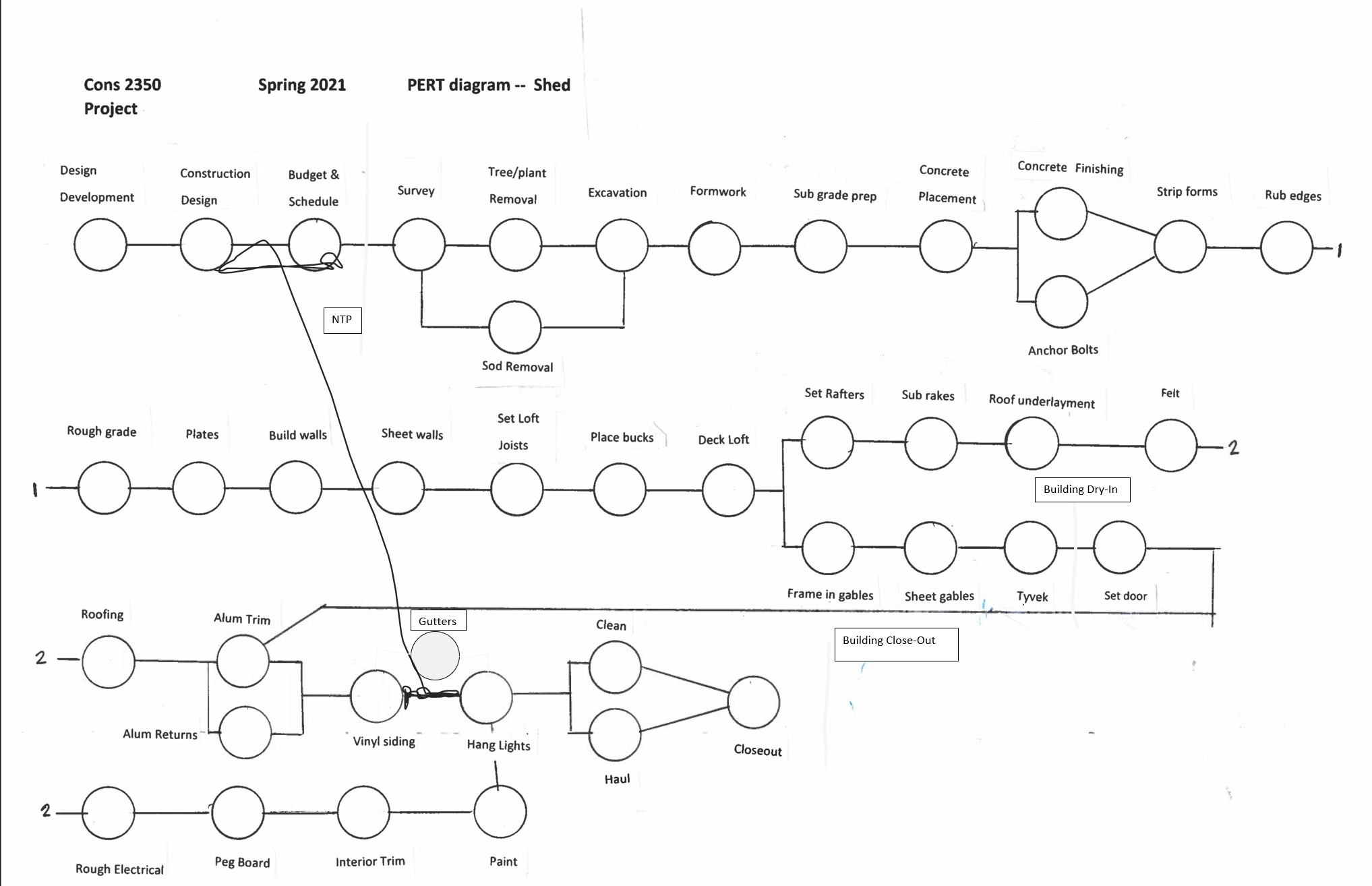

Submit a photo or PDF of your completed PERT Chart. Label Project Finish duration in:

Total Hours

Days and Hours

• Points awarded for
  • Submitting in PDF - 5
  • Completing forward and backward pass calculations- 10
  • Labeling Project Finish duration in Total Hours - 3
  • Labeling Project Finish duration in Days and Hours - 2
  • Correct Calculations - 1 - 5

H A B C D 1120 06 11 00 Build Walls 1130 Wood Framing Build 2 x 4 S-P-F walls- heights per print 1130 06 16 00 Sheet Walls 1140 Sheathing Cover walls with 7/16" OSB sheathing 1130, 1140 18 06 11 00 Sheet Walls 1150 Wood Framing Front wall has R.O. for specified pre-hung door 2 x 8 header 1130, 1140 06 11 00 Set Loft Joists 1160 Wood Framing Install 2 x 8 ceiling joists per plan Loft area only (1-4' loft, 1-2' loft) 06 11 00 Place Bucks 1170 Wood Framing Install 2 x 4 bucks under ceiling joists edges not bearing on 8' rear wall 1160 Nail 3/4" OSB on ceiling joists for loft storage 1160, 1170 06 16 00 Deck Loft 1180 Sheathing 1160, 1170, 1180 06 11 00 Set Rafters 1190 Wood Framing Frame roof system with 2 x 6 rafters, 2 x 8 ridge board, 2 x 6 sub-fascia spacing per print 1190 06 11 00 Sub Rakes 1200 Wood Framing Frame sub-rakes to receive aluminum rake material Sheet the roof with 7/16" OSB sheathing SS 1190 06 16 26 Roof Underlayment 1210 Underlayment 07 30 00 Felt 1220 Steep Slope Roofing Cover the roof sheathing with 15# felt - stapled FS 1210 Frame in Gables & Sheet Gables 1230 Wood Framing Stud in the gable ends & sheath with 7/16" OSB - (Split on PERT diagram between both activities) FS 1220 06 11 00 SS 1230 07 26 13 Tyvek 1240 Vapor Retarders - Above Grade Cover all wall sheathing with Tyvek wrap 01 29 76 MILESTONE 1250 Progress Payment Procedure Building Dry-In (1/3 Draw) - {Milestone} FF 1240 Rough-In electrical service, interior power & lighting FS 1240 26 51 13 Rough Electric 1260 Incandescent Interior Lighting 1270 Incandescent Exterior Lighting SS 1260 26 56 18 Rough Electric Install 2 exterior mini-can lights FS 1220 07 71 16 Roofing 1280 Manufactured Counterflashings Systems Nail in place Aluminum drip edge, on all roof perimeters FS 1280 07 31 13.13 Roofing 1290 Fiberglass Reinforced Asphalt Shingles Install O.C.Dur. 30 yr fiberglass asphalt based dimens. Shingle. Starter row, hip & ridge cap.-Per spec) 1290 07 46 16 Aluminum Returns 1300 Aluminum Siding Fabricate and install returns at four corners of eaves FS O D O D W A D H N N H N O O N W O K O O D N O O N O H D D OO N W A N DO TI 1300 07 46 16 1310 Install aluminum fascai, soffit & rake material FS Aluminum Trim Aluminum Siding FS 1310 07 46 33 Vinyl Siding 1320 Plastic Siding Plumb in nail vinyl covers Fiberglass Doors Install 6 panel, Fiberglass French Door - See specs for special notes) FS 1320 08 16 13 Set Door 1330 FF 1330 07 46 16 Vinyl Siding 1340 Aluminum Siding Install vinyl J mold as needed Level & nail vinyl starter strips & termination Strips FS 1340 07 46 16 Vinyl Siding 1350 Aluminum Siding 1360 Aluminum Siding Hang vertical, reverse board & batten vinyl siding. Gap & nail per manufactureres directions FS 1350 07 46 16 Vinyl Siding FS 1360 09 91 13 Paint 1370 Exterior Painting Paint entrance door system per owner's specifications Fabricated Gutters & Downspouts Hang aluminum gutters & associated downshpouts with leaders FS 1360 07 62 23 Gutters 1380 FS 1050 31 23 13 SubGrade Prep 1390 Subgrade Preparation 4"approach crushed aggregate 1390 03 31 00 Concrete Placement 1400 Structural Concrete Pout 4" concrete approach FS 26 51 13 Hang Lights 1410 Incandescent Interior Lighting Plug & Switch interior electrical FS 1380 FF 1410 26 51 13 Hang Lights 1420 Incandescent Interior Lighting Hang interior Light Fixtures Install trim rings on exterior light mini cans FF 1410 26 56 18 Hang Lights 1430 Incandescent Exterior Lighting 1420 06 26 00 Peg Board 1440 Board Paneling Hang 3/8" thick pegboard on all interior walls FS 09 91 23 1450 FS Interior Trim Interior Painting Run 1 x 4 primed, pine baseboards 1440 Case entrance door system with 1 x 4 primed, pie boards FS 1450 09 91 23 Paint 1460 Interior Painting 01 74 23 Clean 1470 Final Cleaning Clean interior of storage building, remove all unused material and debris FS 1460 01 74 23 1480 Clean the exterior yard adjacent to the storage building FS 1460 Clean Final Cleaning 1490 Construction Waste management & disposal Haul away unused materials, debris & trash FS 1480 01 74 19 Haul 01 77 19 Closeout requirements Project Closeout (1/3 Final Draw) - {Milestone} FF 1490 Closeout 1500 Project FinishCons 2350 Spring 2021 PERT diagram -- Shed Project Design Construction Budget & Tree/plant Survey Excavation Development Design Schedule Removal 2 . ) NTP Sod Removal Set Loft Rough grade Plates Build walls Sheet walls i Place bucks Joists 2 B Alum Returns g Vinyl siding Hang Light.s Haul 2 Peg Board Interior Trim Paint Rough Electrical Formwork Concrete Sub grade prep Placement Set Rafters Sub rakes Deck Loft Frame in gables Sheet gables Building Close-Out Closeout Concrete Finishing Strip forms Rub edges Anchor Bolts Feit Roof underla yment Building Dry-In Tyvek Set door
