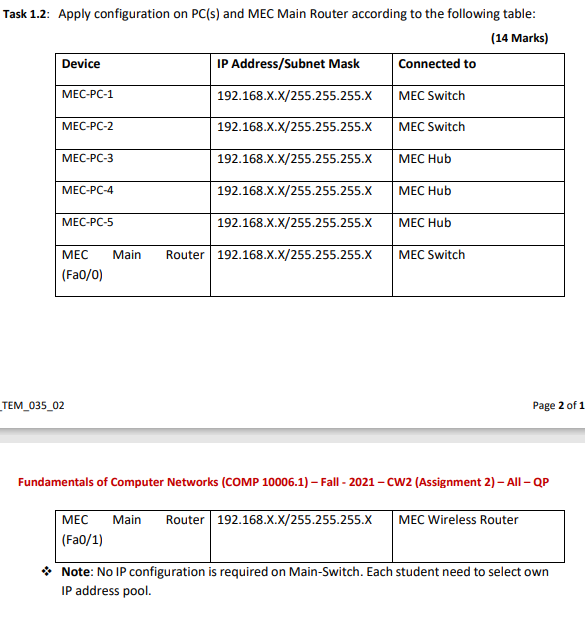

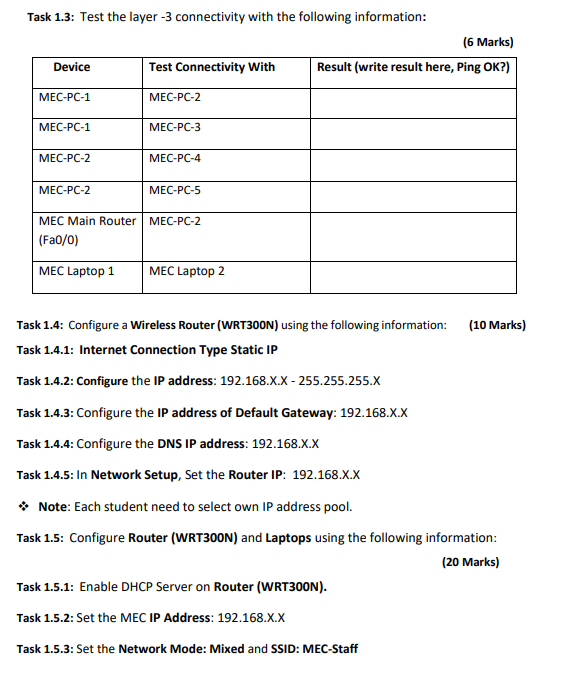

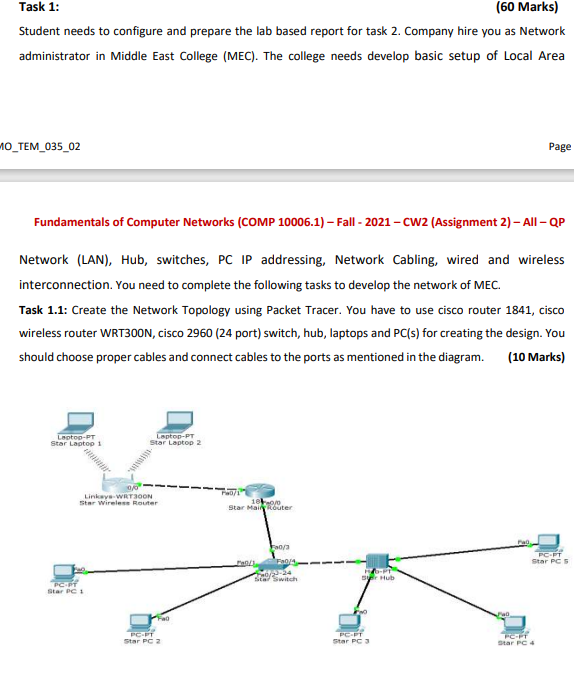

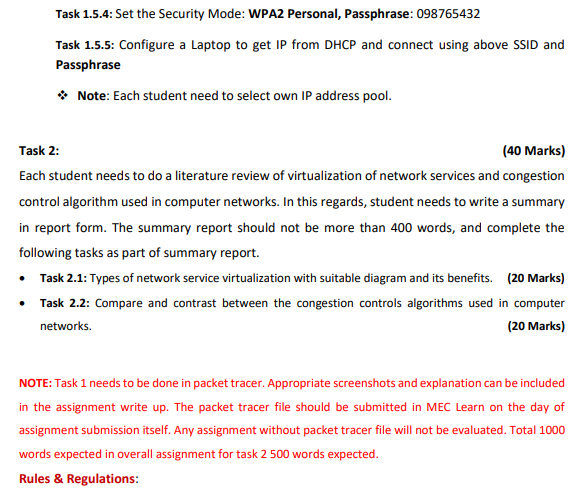

Task 1: (60 Marks) Student needs to configure and prepare the lab based report for task 2. Company hire you as Network administrator in Middle East College (MEC). The college needs develop basic setup of Local Area 10_TEM_035_02 Page Fundamentals of Computer Networks (COMP 10006.1) Fall - 2021 - CW2 (Assignment 2) - All-QP Network (LAN), Hub, switches, PC IP addressing, Network Cabling, wired and wireless interconnection. You need to complete the following tasks to develop the network of MEC. Task 1.1: Create the Network Topology using Packet Tracer. You have to use cisco router 1841, cisco wireless router WRT300N, cisco 2960 (24 port) switch, hub, laptops and PC(s) for creating the design. You should choose proper cables and connect cables to the ports as mentioned in the diagram. (10 Marks) Laptop-PT Star Laptop ! Laptop-PT Star Laptop 2 Link-WRTOON Star Wireless Router 7207 10/0 Star Main Router 0/3 FO/4 PC PT Star PCS 70-T By Hub stal Switch PORT Star PC 1 Fao PCPT Star PC 2 PC-FT Star PC 3 FORF PC + Task 1.2: Apply configuration on PC(s) and MEC Main Router according to the following table: (14 Marks) Device IP Address/Subnet Mask Connected to MEC-PC-1 192.168.X.X/255.255.255.X MEC Switch MEC-PC-2 192.168.X.X/255.255.255.X MEC Switch MEC-PC-3 192.168.X.X/255.255.255.X MEC Hub MEC-PC-4 192.168.X.X/255.255.255.X MEC Hub MEC-PC-5 192.168.X.X/255.255.255.X MEC Hub Main Router 192.168.X.X/255.255.255.X MEC Switch MEC (Fa0/0) _TEM_035_02 Page 2 of 1 Fundamentals of Computer Networks (COMP 10006.1) - Fall - 2021 - CW2 (Assignment 2) - All - QP - MEC Main Router 192.168.X.X/255.255.255.X MEC Wireless Router (Fa0/1) Note: No IP configuration is required on Main-Switch. Each student need to select own IP address pool. Task 1.3: Test the layer -3 connectivity with the following information: (6 Marks) Device Test Connectivity with Result (write result here, Ping OK?) MEC-PC-1 MEC-PC-2 MEC-PC-1 MEC-PC-3 MEC-PC-2 MEC-PC-4 MEC-PC-2 MEC-PC-5 MEC-PC-2 MEC Main Router (Fa0/0) MEC Laptop 1 MEC Laptop 2 Task 1.4: Configure a Wireless Router (WRT300N) using the following information: (10 Marks) Task 1.4.1: Internet Connection Type Static IP Task 1.4.2: Configure the IP address: 192.168.X.X - 255.255.255.x Task 1.4.3: Configure the IP address of Default Gateway: 192.168.X.X Task 1.4.4: Configure the DNS IP address: 192.168.X.X Task 1.4.5: In Network Setup, Set the Router IP: 192.168.X.X Note: Each student need to select own IP address pool. Task 1.5: Configure Router (WRT300N) and Laptops using the following information: (20 Marks) Task 1.5.1: Enable DHCP Server on Router (WRT300N). Task 1.5.2: Set the MEC IP Address: 192.168.X.X Task 1.5.3: Set the Network Mode: Mixed and SSID: MEC-Staff Task 1.5.4: Set the Security Mode: WPA2 Personal, Passphrase: 098765432 Task 1.5.5: Configure a Laptop to get IP from DHCP and connect using above SSID and Passphrase Note: Each student need to select own IP address pool. Task 2: (40 Marks) Each student needs to do a literature review of virtualization of network services and congestion control algorithm used in computer networks. In this regards, student needs to write a summary in report form. The summary report should not be more than 400 words, and complete the following tasks as part of summary report. Task 2.1: Types of network service virtualization with suitable diagram and its benefits. (20 Marks) Task 2.2: Compare and contrast between the congestion controls algorithms used in computer networks. (20 Marks) NOTE: Task 1 needs to be done in packet tracer. Appropriate screenshots and explanation can be included in the assignment write up. The packet tracer file should be submitted in MEC Learn on the day of assignment submission itself. Any assignment without packet tracer file will not be evaluated. Total 1000 words expected in overall assignment for task 2 500 words expected. Rules & Regulations
