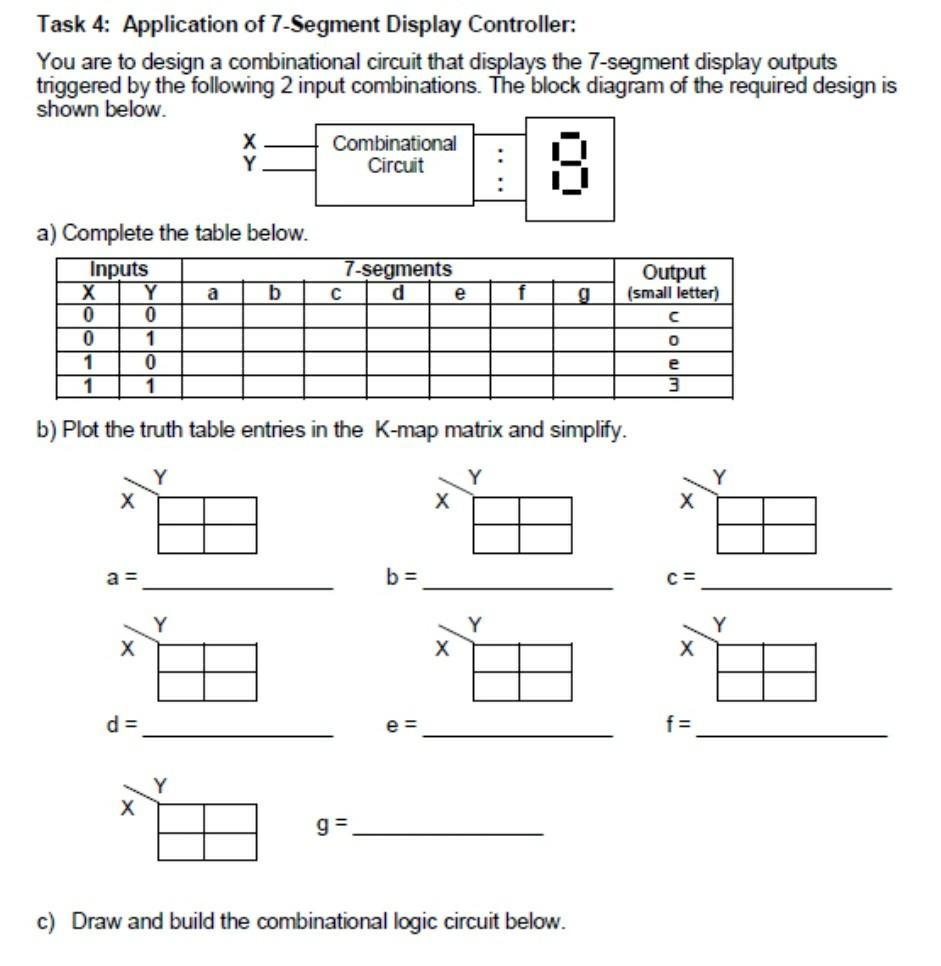

Task 4: Application of 7-Segment Display Controller: You are to design a combinational circuit that displays the 7-segment display outputs triggered by the following 2
Task 4: Application of 7-Segment Display Controller: You are to design a combinational circuit that displays the 7-segment display outputs triggered by the following 2 input combinations. The block diagram of the required design is shown below. Combinational Circuit Y OD 7-segments d e a f g a) Complete the table below. Inputs X Y b 0 0 0 1 1 0 1 1 Output (small letter) 0 e 3 b) Plot the truth table entries in the K-map matrix and simplify. Y X as b = C= Y X d = f= g c) Draw and build the combinational logic circuit below
Step by Step Solution
