Test Harnes:

/* * This is a test harness for the Policy hierarchy, Annuity, and the BookValue interface. * * This process begin by building an array of objects that implement the BookValue interface. * These include HomeOwners, Auto, and Annuity objects. Objects will be instantiated directly * into an array. * * The array will be processed three times - each loop executing a specific function. * 1. Output the toString return for each object. * 2. Output (and accumulate) the current financial exposure for each object. * Output the accumulated exposure for all objects. * 3. Output (and accumulate) the current cash or book value for each object. * Output the accumulated cash value for all objects. * * (c) 2018, Terri Davis */ public class Test_Policy_BookValue { /* * Global scoping for variables/data structures is STRONGLY DISCOURAGED, but here it makes * our lives (and code) simpler, so we'll allow it. * COMPLETE THE FOLLOWING ARRAY DECLARATION */ private static BookValue[] bookValues = new BookValue[6]; /* * The main method will only 'direct traffic' from this point forward. * This main calls one method to build/load the array and a second method to process it. */ public static void main( String[] args ) { buildArray( ); reviewArray( ); } // end main /* * The buildArray method instantiates 6 objects and stores them in the globally declared array. */ private static void buildArray( ) { // First, we're going to set up int arrays for our Auto limits... // This is a simpler method than trying to instantiate the arrays in the contructor calls... int[] std = {50,50,100}; int[] hiVal = {100,100,250}; // Add HomeOwner objects to the array bookValues[0] = new HomeOwners( "Ted Arroway", "Ted Arroway", "HO658542", 2563.58, "Lacy Lane, BLK 5, LOT 8", 1, 200, 25, 0.015, false ); bookValues[1] = new HomeOwners( "Drumlin, LLC", "David Drumlin", "HO963214", 5980.73, "Silicon Heights, BLK1 , Lot 1", 4, 1200, 250, 0.03, true ); // Add Auto objects to the array bookValues[2] = new Auto( "Eleanor Arroway", "Eleanor Arroway", "AU002584", 1503.27, "Jeep Wrangler", 1998, "CHRJ99W541230", std, 500 ); bookValues[3] = new Auto( "Palmer Joss", "Palmer Joss", "AU456852", 3103.79, "BMW X3", 2016, "BWMX163415872", hiVal, 1000 ); // Add Annuity objects to the array bookValues[4] = new Annuity( "Ted Arroway", "Eleanor Arroway", "5482361597", 100000, 83462.47 ); bookValues[5] = new Annuity( "S. R. Hadden", "SETI", "8543269716", 2500000, 1803957.41 ); } // end buildArray /* * The reviewArray method will call three other methods. Each called method executes a * specific function across each object in the array. */ private static void reviewArray( ) { printToStrings( ); calculateExposures( ); calculateCurrValues( ); } // end reviewArray /* * The printToStrings method will use an enhanced for loop to retrieve and output the toString * return for each object in the array. */ private static void printToStrings( ) { System.out.printf( "%n%nList of Policy Objects in Array bookValues%n%n" ); // Add the control statement for the ENHANCED FOR LOOP here for( BookValue oneContract: bookValues ) { System.out.printf( "%s%n", oneContract.toString( ) ); } // end for loop } // end printToStrings /* * The calculateExposures method will use an enhanced for loop to retrieve and output the calculateExposure * return for each object in the array. * An accumulator (totalExposure) is declared, and each object's calculateExposure value is added to the * accumulator within the loop. * When the loop completes, the total accumulated exposure value is output. */ private static void calculateExposures( ) { System.out.printf( "%n%n%n\tContract Exposures%n%n" ); // declare and initialize an accumulator double totalExposure = 0.0; // Add the control statement for the ENHANCED FOR LOOP here for( BookValue oneContract: bookValues ) { // retrieve the exposure value double currExposure = oneContract.calcExposure( ); // output a report line including the exposure value System.out.printf( "Contract %-10s $%,13.2f%n", oneContract.identifyContract( ), currExposure ); // accumulate exposure values totalExposure = totalExposure + currExposure; } // end for loop // Output total accumulated exposure System.out.printf( "%n\t\tTotal Exposure is $%,.2f%n%n", totalExposure ); } // end calculateExposures /* * The calculateCurrValues method will use an enhanced for loop to retrieve and output the calcCurrentValue * return for each object in the array. * An accumulator (totalBook) is declared, and each object's calcCurrentValue value is added to the * accumulator within the loop. * When the loop completes, the total accumulated book value value is output. */ private static void calculateCurrValues( ) { System.out.printf( "%n%n%n\tContract Book Values%n%n" ); double totalBook = 0.0; // Add the control statement for the ENHANCED FOR LOOP here for( BookValue oneContract: bookValues ) { // retrieve the exposure value double currBook = oneContract.calcCurrentValue( ); System.out.printf( "Contract %-10s $%,13.2f%n", oneContract.identifyContract( ), currBook ); // accumulate book values totalBook = totalBook + currBook; } // end for loop // Output total accumulated book value System.out.printf( "%n\t\tTotal Book Value is $%,.2f%n%n", totalBook ); } } // end Test_Policy_BookValue

Policy Class - (NEED TO CHANGE TO FIT NEW UML)

/* * This class will describe a policy object representing * an owner's policy */ public class Policy { /* * INSTANCE VARIABLES */ private String owner; // Policy owner's full, legal private String insured; // Full, legal name of named insured on policy private String polNbr; // Unique identifer for specific policy private int polType; // Interger coed indected type of poicy: ' //1: Auto //2:Homeowners private double polPrem; //Annual premium amount for policy /* * CONSTRUCTORS */ public Policy( ) { //NO code required here.. } // End null consturctor public Policy( String own, String insd, String nbr, int type, double prem ) { setOwner( own ); setInsured( insd ); setPolNbr( nbr ); setPolType( type ); setPolPrem( prem ); } // end full Contrutor /* * Set Methods */ public final void setOwner( String own ) { owner = own; } // End setOwner public final void setInsured ( String insd ) { insured = insd; } // End setInsured public final void setPolNbr (String nbr ) { polNbr = nbr; } // End setPolNbr public final void setPolType( int type ) { polType = type; } // End setPolType public final void setPolPrem( double prem ) { polPrem = prem; } // End setPolPrem /* * GET METHODS */ public final String getOwner( ) { return owner; } // End getOwner public final String getInsured( ) { return insured; } // End getInsured public final String getPolNbr( ) { return polNbr; } // End getpolNbr public final int getPolType ( ) { return polType; } // End getPolType public final double getPolPrem( ) { return polPrem; } // End getPolPrem

/* * OTHER METHODS */ public String txtPolType() { if (polType == 1) // If else to set polType { return "AUTO"; } else { return "HOMEOWNERS"; } // End if ... else } // End txtPolType public String toString () { // Return a verbose description of the object, displaying all // instance values return String.format ("%s owns Policy %s, a(n) %s policy, insuring %s, with a premnium of $%,.2f.%n", getOwner( ), getPolNbr( ), txtPolType( ), getInsured ( ), getPolPrem( ) ); } // End toString } // End Policy

Expected Output:

List of Policy Objects in Array

bookValues

Ted Arroway owns Policy HO658542, insuring Ted Arroway, with a premium of $2,563.58.This HomeOwners policy insures a type 1 home at Lacy Lane, BLK 5, LOT 8. The structure is insured for $200,000.00;contents for $25,000.00. The deductible is $3,375.00. This policy is not part of an Umbrella contract.

Drumlin, LLC owns Policy HO963214, insuring David Drumlin, with a premium of $5,980.73.This HomeOwners policy insures a type 4 home at Silicon Heights, BLK1 , Lot 1. The structure is insured for$1,200,000.00; contents for $250,000.00. The deductible is $43,500.00. This policy is part of anUmbrella contract.

Eleanor Arroway owns Policy AU002584, insuring Eleanor Arroway, with a premium of $1,503.27.This Auto policy insures a 1998 Jeep Wrangler, VIN CHRJ99W541230, with limits of Collision: $50,000.00, Comprehensive:$50,000.00, UIM: $100,000.00 and a deductible of $500.00.

Palmer Joss owns Policy AU456852, insuring Palmer Joss, with a premium of $3,103.79.This Auto policy insures a 2016 BMW X3, VIN BWMX163415872, with limits of Collision: $100,000.00, Comprehensive:$100,000.00, UIM: $250,000.00 and a deductible of $1,000.00.

Ted Arroway owns an Annuity contract, 5482361597, benefitting Eleanor Arroway. Total contract value is $100,000.00. Current cash value is $83,462.47.

S. R. Hadden owns an Annuity contract, 8543269716, benefitting SETI. Total contract value is $2,500,000.00. Currentcash value is $1,803,957.41.

Contract Exposures

Contract HO658542 $ 225,000.00

Contract HO963214 $ 1,450,000.00

Contract AU002584 $ 200,000.00

Contract AU456852 $450,000.00

Contract 5482361597 $ 16,537.53

Contract 8543269716 $ 696,042.59

Total Exposure is $3,037,580.12

Contract Book Values

Contract HO658542 $ 2,001.08

Contract HO963214 $ 2,355.73

Contract AU002584 $ 483.27

Contract AU456852 $ 808.79

Contract 5482361597 $ 83,462.47

Contract 8543269716 $ 1,803,957.41

Total Book Value is $1,893,068.75

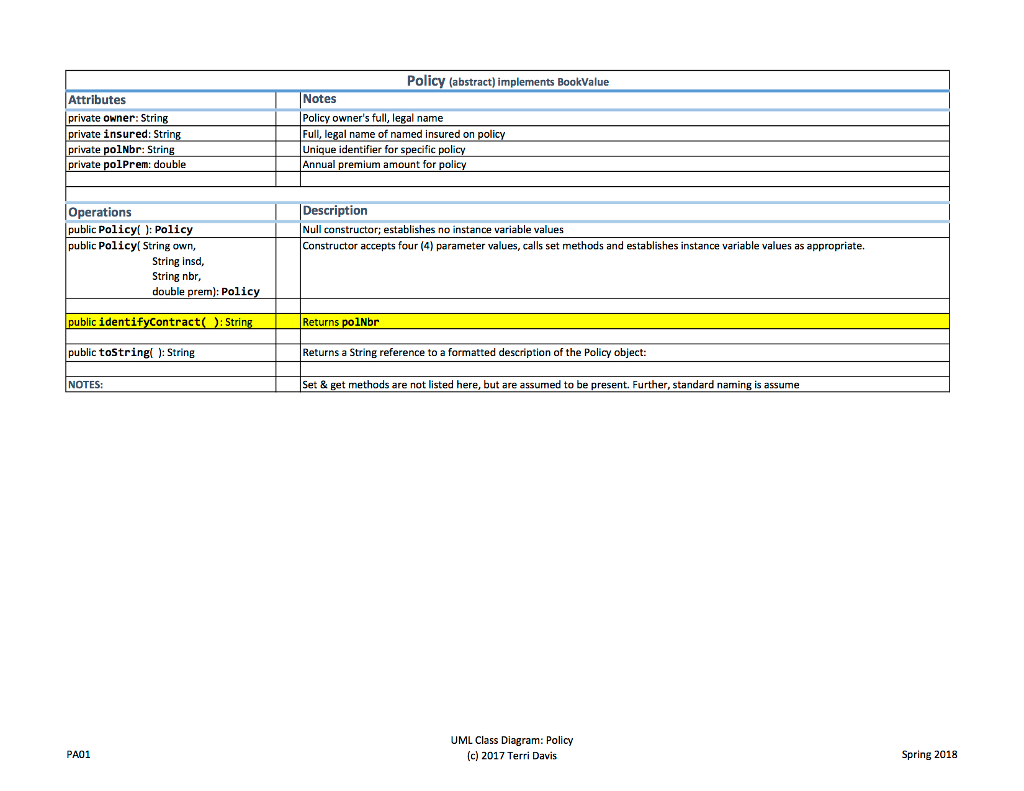

Policy (abstract) implements BookValue Attributes Notes private owner: String Policy owner's full, legal name Full, legal name of named insured on Unique identifier for specific poli Annual premium amount for insured: Strin olNbr: Strin ivate polPrem: double Operations public Policyt ): Policy public Policyl String own, Description Null constructor; establishes no instance variable values Constructor accepts four (4) parameter values, calls set methods and establishes instance variable values as appropriate. String insd, String nbr, double prem): Polic Returns polNbr Returns a String reference to a formatted description of the Policy object: Set & get methods are not listed here, but are assumed to be present. Further, standard naming is assume ublic identifyContract(: Stri public toStringl ): String NOTES UML Class Diagram: Policy (c) 2017 Terri Davis PA01 Spring 2018
