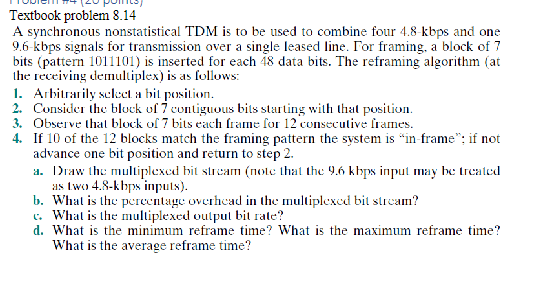

Textbook problem 8 . 1 4 A synchronous nonstatistical TDM is to be used to combine four 4 . 8 k b p s and

Textbook problem 8.14
A synchronous nonstatistical TDM is to be used to combine four 4.8kbps and one
9.6kbps signals for transmission over a single leased line. or framing, a block of 7
bits (pattern 1011101) is inserted for each 48 data bits. The reframing algorithm (at
the receiving demultiplex) is as follows:
Arbitrarily scleet a bit posilion.
Consider the block of 7 contiguous bits starting with that position.
Observe that block of 7 bits each frame for 12 conseculive frames.
If 10 of the 12 blocks match the framing pattern the system is "in-frame"; if not
advance one bit position and return to step 2.
a.1)raw the multiplexed bit stream (note that the 9.6kbp input may be treated
as lwo 4.8-kbps inpuls).
b. What is the pereentage overhead in the multiplexed bit stream?
t. What is the multiplexed outpul bit rate?
d. What is the minimum reframe time? What is the maximum reframe time?
What is the average reframe time?
