Question

1 Approved Answer

thanks +5V +5V +5V Case A, one bulb Case B, two bulbs Case C, three bulbs In the Electric Current lab you made series circuits

thanks

image text in transcribed

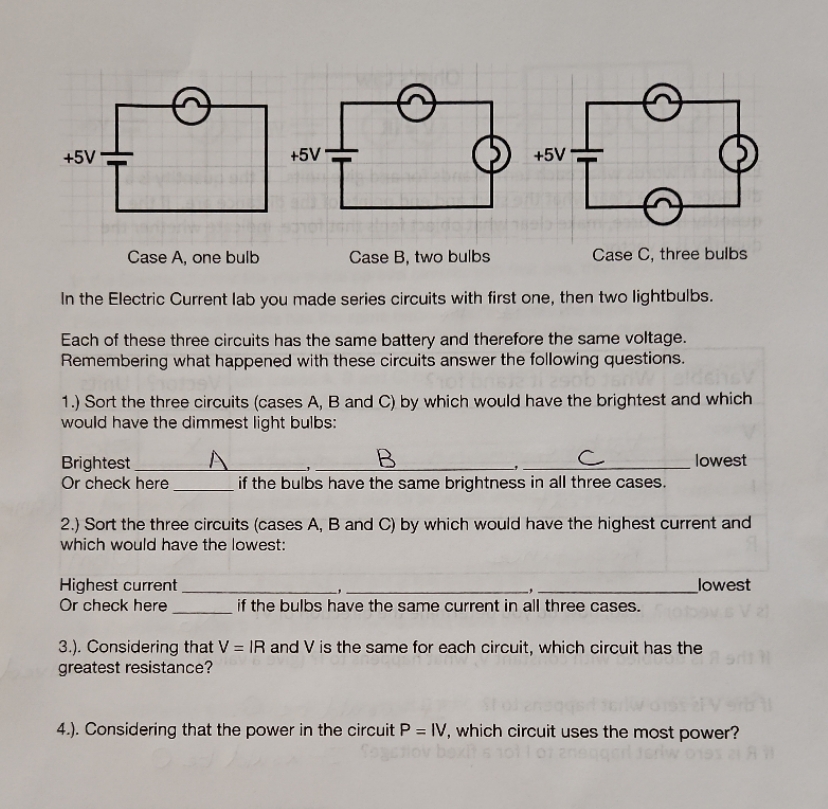

+5V +5V +5V Case A, one bulb Case B, two bulbs Case C, three bulbs In the Electric Current lab you made series circuits with first one, then two lightbulbs. Each of these three circuits has the same battery and therefore the same voltage. Remembering what happened with these circuits answer the following questions. 1.) Sort the three circuits (cases A, B and C) by which would have the brightest and which would have the dimmest light bulbs: Brightest B C lowest Or check here if the bulbs have the same brightness in all three cases. 2.) Sort the three circuits (cases A, B and C) by which would have the highest current and which would have the lowest: Highest current lowest Or check here if the bulbs have the same current in all three cases. 3.). Considering that V = IR and V is the same for each circuit, which circuit has the greatest resistance? 4.). Considering that the power in the circuit P = IV, which circuit uses the most power

Step by Step Solution
