The project is to write a program that 1 - increase or decreasea DC motor speed using potentiometer. 2 - display the motor speed on

The project is to write a program that
1-increase or decreasea DC motor speed using potentiometer.
2- display the motor speed on two 7-segments.
initialize the ADC and PWM modules properly and everything depends the circuit connection
Fosc=4MHz
Potentiometer range 0 to 5 volt
Motor max voltage supply =5 voltage.
i need it open loop system
i need the full code in assembly language to put it in mplab pic18f452 for this circuit connection and my requirement my system and give me any calculation you do it

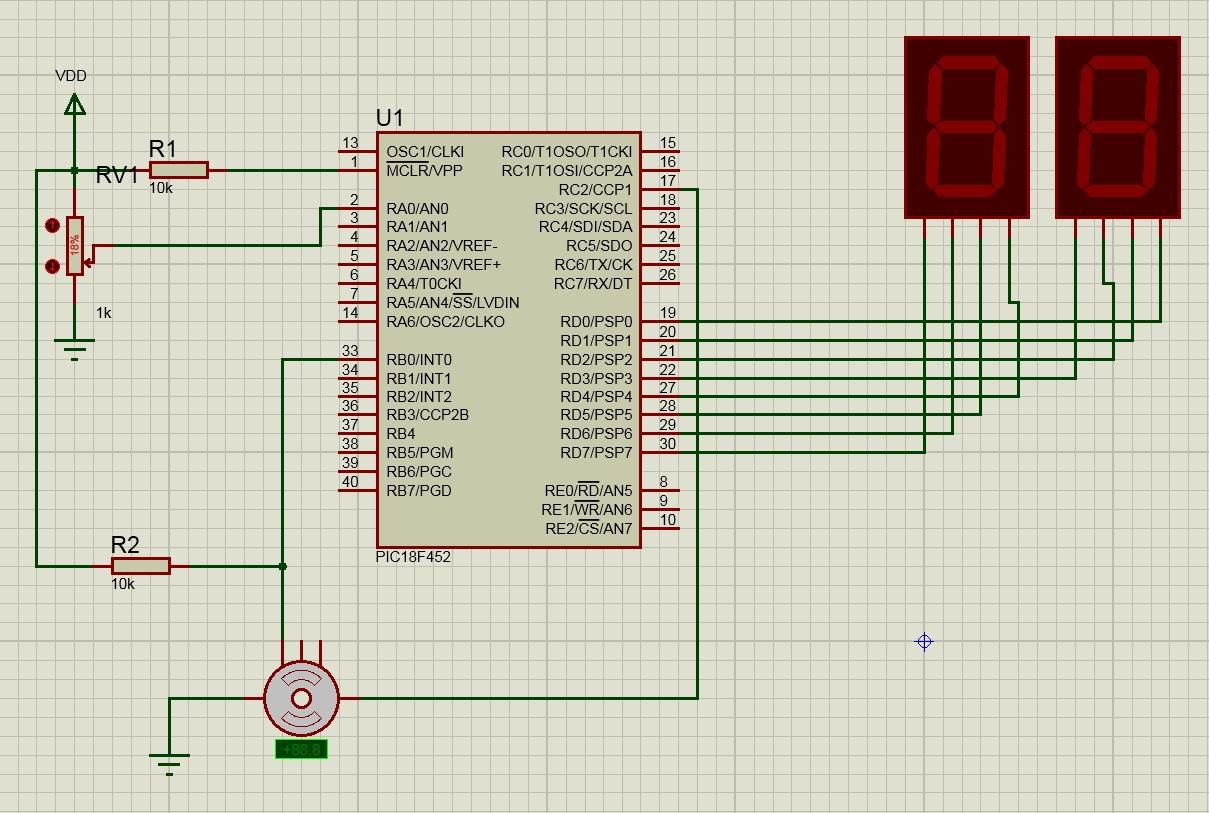

VDD1kR210kR110k131433343536373839U1OSC1/CLKIMCLRVPPRAO/ANORA1/AN1RA2/AN2VREF-RA3/AN3NREF+RA4/TOCKIRA5/AN4/SS/LVDINRA6/OSC2/CLKORBO/INTORB1//NT1RB2/INT2RB3/CCP2BRB4RB5/PGMRB6/PGCRCOT10SOrT1CKIRC1/T10S/CCP2ARB7/PGDPIC18F452RC2/CCP1RC3/SCK/SCLRC4/SDI/SDARC5/SD0RC6/TXCKRC7/RXDTRDO/PSPORD1/PSP1RD2/PSP2RD3/PSP3RD4/PSP4RD5/PSP5RD6/PSP6RD7/PSP7REO/RDIAN5RE1WRIANGRE2/CS/AN715161182324251920222829308910
