The schematic below represents a single equilibrium stage in a distillation column. The following component balance may be derived for a binary system under assump

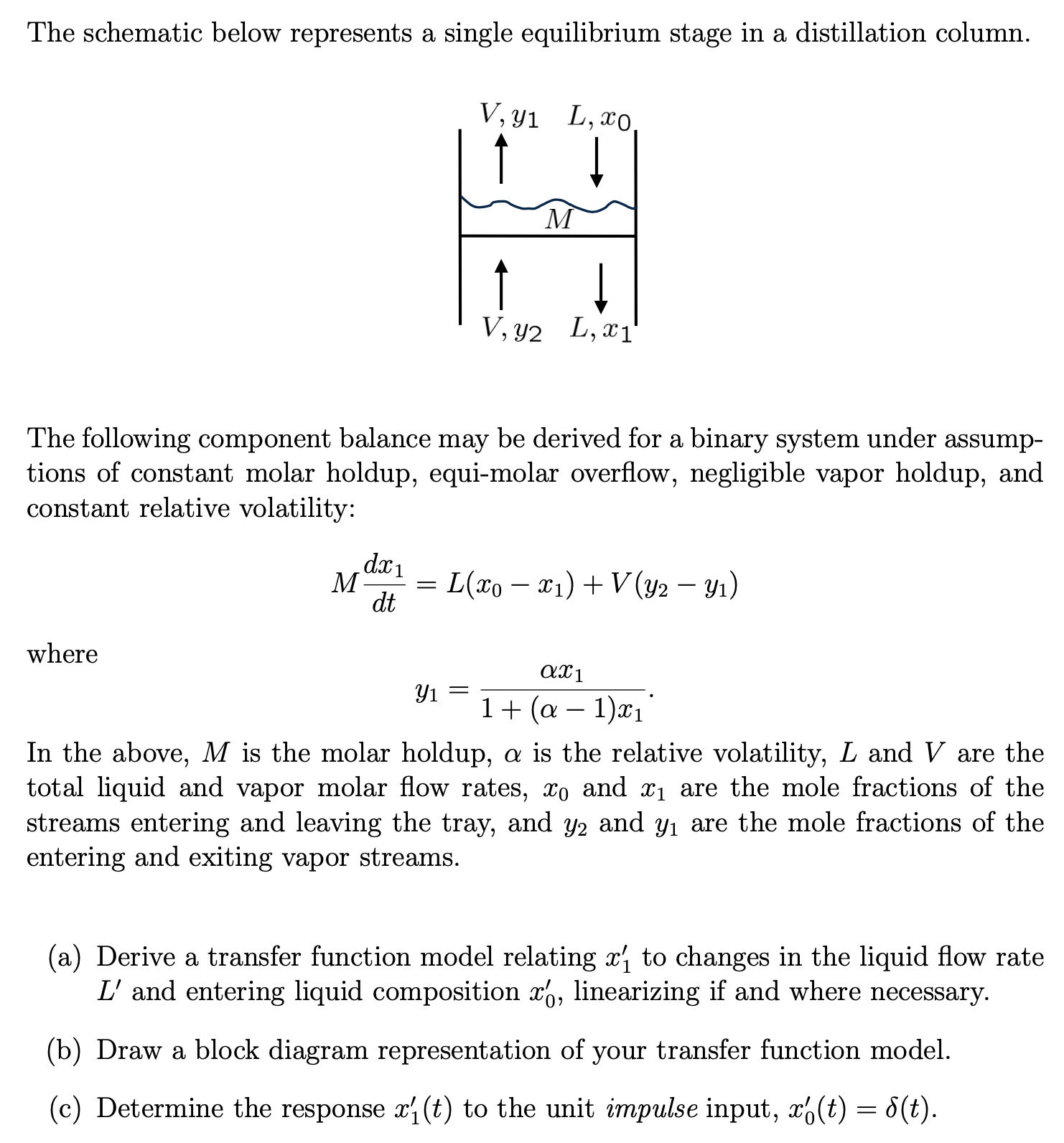

The schematic below represents a single equilibrium stage in a distillation column.
The following component balance may be derived for a binary system under assump-
tions of constant molar holdup, equi-molar overflow, negligible vapor holdup, and
constant relative volatility:
Mdx1dt=L(x0-x1)+V(y2-y1)
where
y1=x11+(-1)x1.
In the above, M is the molar holdup, is the relative volatility, L and V are the
total liquid and vapor molar flow rates, x0 and x1 are the mole fractions of the
streams entering and leaving the tray, and y2 and y1 are the mole fractions of the
entering and exiting vapor streams.
(a) Derive a transfer function model relating x1' to changes in the liquid flow rate
L' and entering liquid composition x0', linearizing if and where necessary.
(b) Draw a block diagram representation of your transfer function model.
(c) Determine the response x1'(t) to the unit impulse input, x0'(t)=(t).
