The waveform m(t) shown below is a segment of an audio signal that has a maximum frequency component at 5KHz. Assume the signal is

image text in transcribed

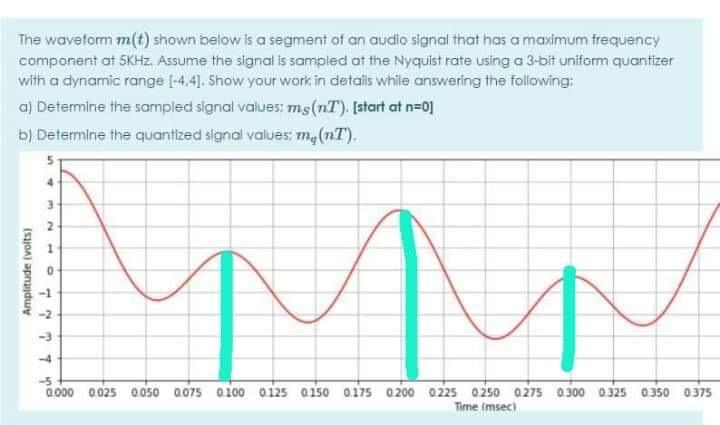

The waveform m(t) shown below is a segment of an audio signal that has a maximum frequency component at 5KHz. Assume the signal is sampled at the Nyquist rate using a 3-bit uniform quantizer with a dynamic range [-4.4]. Show your work in details while answering the following: a) Determine the sampled signal values: ms (nT). [start at n=0] b) Determine the quantized signal values: mg (nT). Amplitude (volts) -1 w -4 -5 Mr 0.000 0.025 0.050 0.075 0100 0125 0.150 0.175 0.200 0225 0.250 0.275 0.300 0.325 0350 0375 Time (msec)
