Transfer Function-One Equation of Motion PROBLEM: Find the transfer function, X(s)/F(s), for the system of Figure(a). -x(t) K1 = 1 N/m K2 = 1 N/m

image text in transcribed

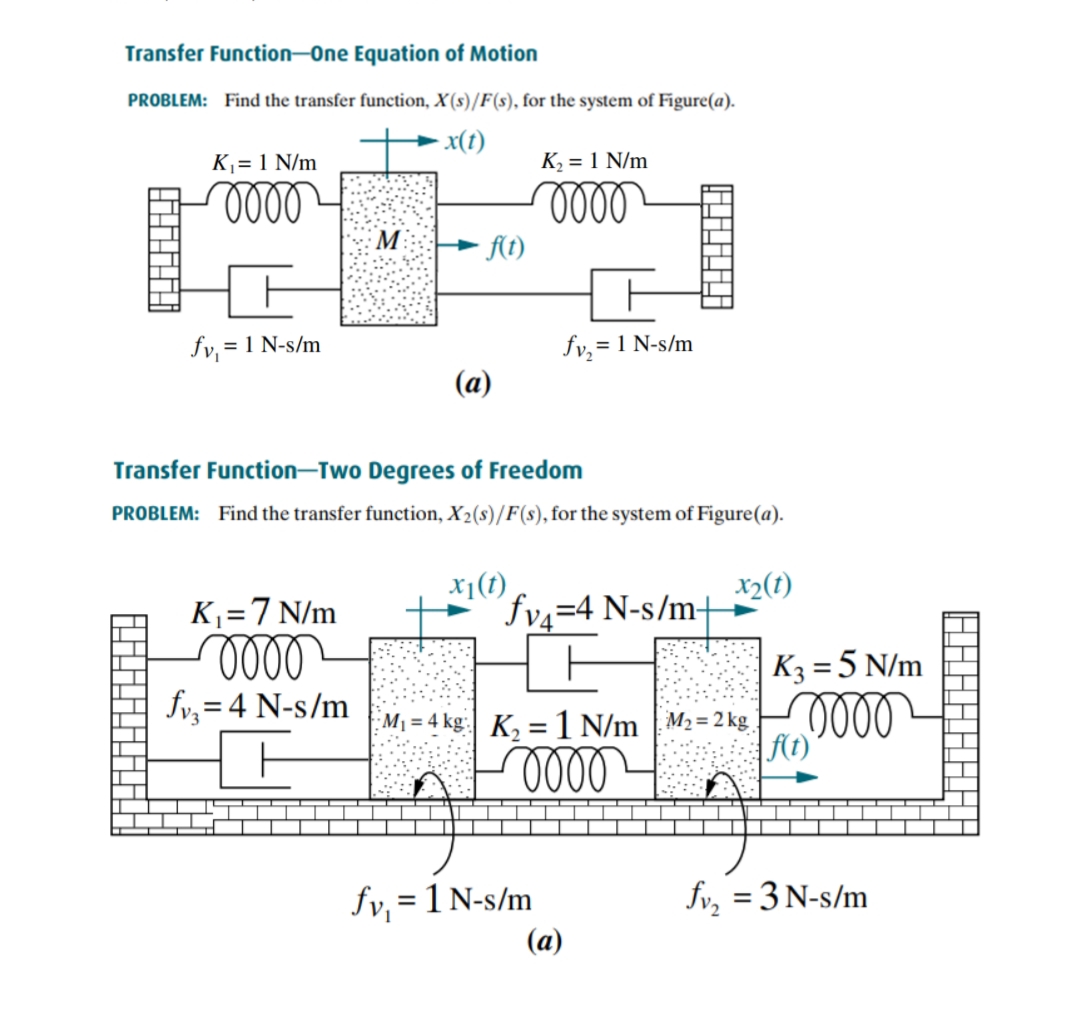

Transfer Function-One Equation of Motion PROBLEM: Find the transfer function, X(s)/F(s), for the system of Figure(a). -x(t) K1 = 1 N/m K2 = 1 N/m 0000 0000 - f(t ) fv, = 1 N-s/m fv, = 1 N-s/m (a) Transfer Function-Two Degrees of Freedom PROBLEM: Find the transfer function, X2(s)/F(s), for the system of Figure(a). x1 (t) X2 (t) K=7N/m fvA=4 N-s/m+ 6000 K3 = 5 N/m fv = 4 N-s/m M1 = 4 kg. K, = 1 N/m M2 = 2kg 000 10000 f(t) fv, = 1 N-s/m fv, = 3 N-s/m (a)

Step by Step Solution

There are 3 Steps involved in it

Step: 1
