Using Matlab to solve this problem (with code) In this problem we will study and solve 2D steady-state heat conduction The 2d conduction oquation is
Using Matlab to solve this problem (with code)

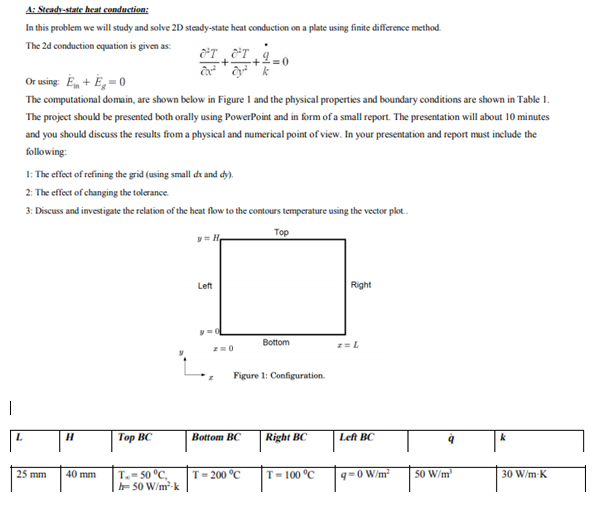

In this problem we will study and solve 2D steady-state heat conduction The 2d conduction oquation is given as on a plate using finite difference method OT o Or using: En E-0 The computational domain, are shown below in Figure 1 and the physical properties and boundary conditions are shown in Table 1 The project shoukd be presented both orally using PowerPoint and in form of a small report. The presentation will about 10 minutes and you should discuss the results from a physical and numerical point of view. In your presentation and report must include the following: I: The effect of refining the grid (using small dr and dy) 2: The effect of changing the tolerance 3 Discuss and investigate the relation of the heat flow to the contours temperature using the vector pkot. Top Left Right Bottom z- L z Figure 1: Configuration Top BC Bottom BC Right BC Let BC 50 W 30 W/m K 50 W/m-k
