Question: Using the METHOD OF SECTIONS, determine the force in members GF , CF , and CD . Answers should indicate tension or compression in the

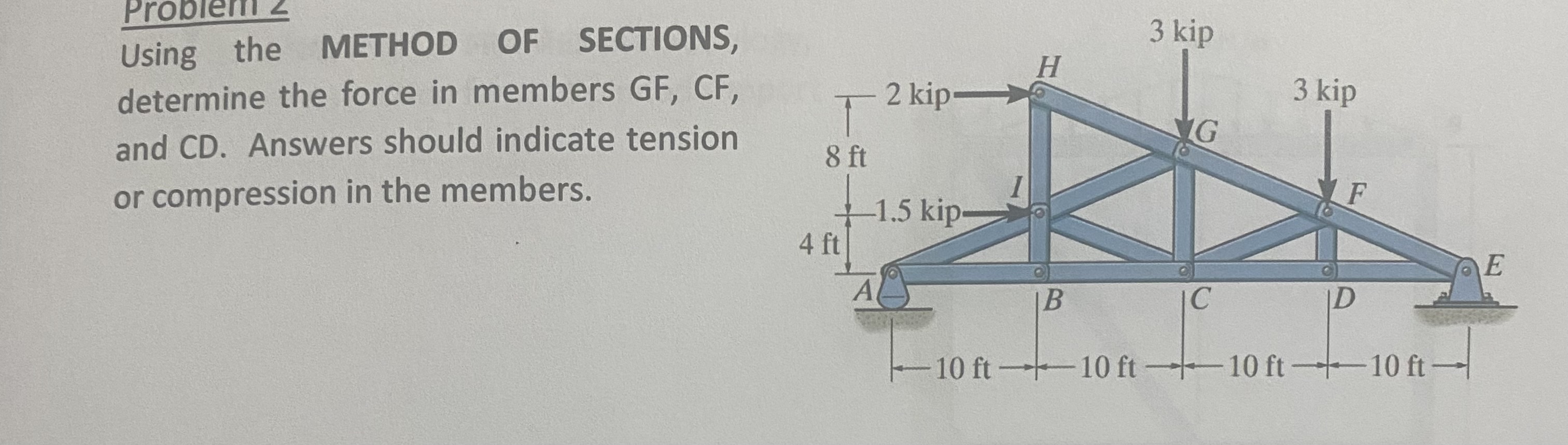

Using the METHOD OF SECTIONS, determine the force in members GF, CF, and CD. Answers should indicate tension or compression in the members.
Using the METHOD OF SECTIONS, determine the force

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Using the method of sections, determine the force in members GF , GC , and BC . State if the members are in tension or compression.

Q:

Using the method of sections, determine the force in members JI , JE , and DE and indicate whether the members are in tension or compression. Assume all members are joined by pins

Q:

Determine the force in members GF, CF, and CD of the roof truss and indicate if the members are in tension or compression. 1.5 kN 1.70 m 2 kN 1.5 m 0,8 m G. -1 m- 2 m 2 m

Q:

Determine the force in members GF, CF, and CD and state whether they are in tension or compression. 4 ft H B 500 lb 4 ft G 500 lb 4 ft Prob. F3-12 8 D 500 lb 4 ft E 1 ft 3 ft

Q:

Determine the force in members GF, CF, and CD and state whether they are in tension or compression. 400 lb 400 lb HY B 400 lb -8 ft 8 ft- G C 400 lb -8 ft- Prob. F3-10 F D -8 ft 6 ft 400 lb 6 ft E

Q:

( 1 0 points ) Determine the force in members GF , CF , and CD of the truss and state if the members are in tension or compression.

Q:

By using the method of sections, determine the force in members BC, BF, CF and EF of the truss and state if these members are in tension or compression. Set P= 12 kN, P = 15 kN and P3=9 kN. (Note:...

Q:

Name: Page of HW: 6-2-1 Using the method of sections, find the force in members BH, BG, and CD. Draw appropiate fbds. State if the members are in tension (T) or compression (C). D 12.3kip 90 TYP 18...

Q:

Problem 5: Inputs: h = 2 m, x = 2 m, P1 = 0 kN, P2 = 10 kN, P3 = 5 kN, P4 = 24 kN, P5 = 9 KN There is a pin at A and a rocker at G. Using the method of sections, determine the force in members: a) EI...

Q:

Using the method of sections, determine the force in members CH and CG and indicate whether the members are in tension or compression. Assume all members are joined by pins
