Question: * With regard to the two - mesh circuit shown below, determine the average power absorbed by each passive element and the average power supplied

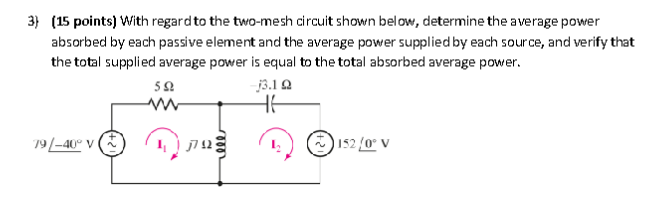

*With regard to the two-mesh circuit shown below, determine the average power
absorbed by each passive element and the average power supplied by each source, and verify that
the total supplied average power is equal to the total absorbed average power.
* With regard to the two - mesh circuit shown

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
