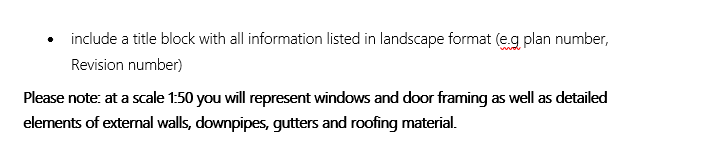

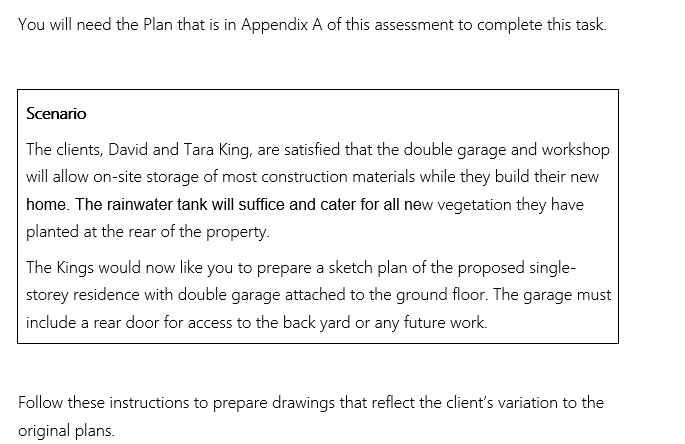

You will need the Plan that is in Appendix A of this assessment to complete this task. Scenario The clients, David and Tara King, are satisfied that the double garage and workshop will allow on-site storage of most construction materials while they build their new home. The rainwater tank will suffice and cater for all new vegetation they have planted at the rear of the property. The Kings would now like you to prepare a sketch plan of the proposed single- storey residence with double garage attached to the ground floor. The garage must include a rear door for access to the back yard or any future work. Follow these instructions to prepare drawings that reflect the client's variation to the original plans. Drawing 2: Orthographic drawing You must create an orthographic drawing (scale 1:50 on A3 paper) of the double garage and workshop: 1 x side view North Elevation - north facing faade 1x side view - East Elevation - east facing faade 1x sectional view Section - east facing faade 1x top view Floor Plan - with hidden roof detailing Your drawing must: be drawn freehand, at a scale of 1:50 show the natural lighting to the garage (e.g. skylight, window/s) include the 2,000-litre rainwater tank showing tie-in plumbing with piping use international conventions, including object labels and notation . include a title block with all information listed in landscape format (eg plan number, Revision number) Please note: at a scale 1:50 you will represent windows and door framing as well as detailed elements of external walls, downpipes, gutters and roofing material. You will need the Plan that is in Appendix A of this assessment to complete this task. Scenario The clients, David and Tara King, are satisfied that the double garage and workshop will allow on-site storage of most construction materials while they build their new home. The rainwater tank will suffice and cater for all new vegetation they have planted at the rear of the property. The Kings would now like you to prepare a sketch plan of the proposed single- storey residence with double garage attached to the ground floor. The garage must include a rear door for access to the back yard or any future work. Follow these instructions to prepare drawings that reflect the client's variation to the original plans. Drawing 2: Orthographic drawing You must create an orthographic drawing (scale 1:50 on A3 paper) of the double garage and workshop: 1 x side view North Elevation - north facing faade 1x side view - East Elevation - east facing faade 1x sectional view Section - east facing faade 1x top view Floor Plan - with hidden roof detailing Your drawing must: be drawn freehand, at a scale of 1:50 show the natural lighting to the garage (e.g. skylight, window/s) include the 2,000-litre rainwater tank showing tie-in plumbing with piping use international conventions, including object labels and notation . include a title block with all information listed in landscape format (eg plan number, Revision number) Please note: at a scale 1:50 you will represent windows and door framing as well as detailed elements of external walls, downpipes, gutters and roofing material
