Question: 1 0 . 5 A soil element is shown in Figure 1 0 . 3 4 . Determine the following: a . Maximum and minimum

10.5 A soil element is shown in Figure 10.34. Determine the following:
a. Maximum and minimum principal stresses
b. Normal and shear stresses on the plane AB
Use the pole method.

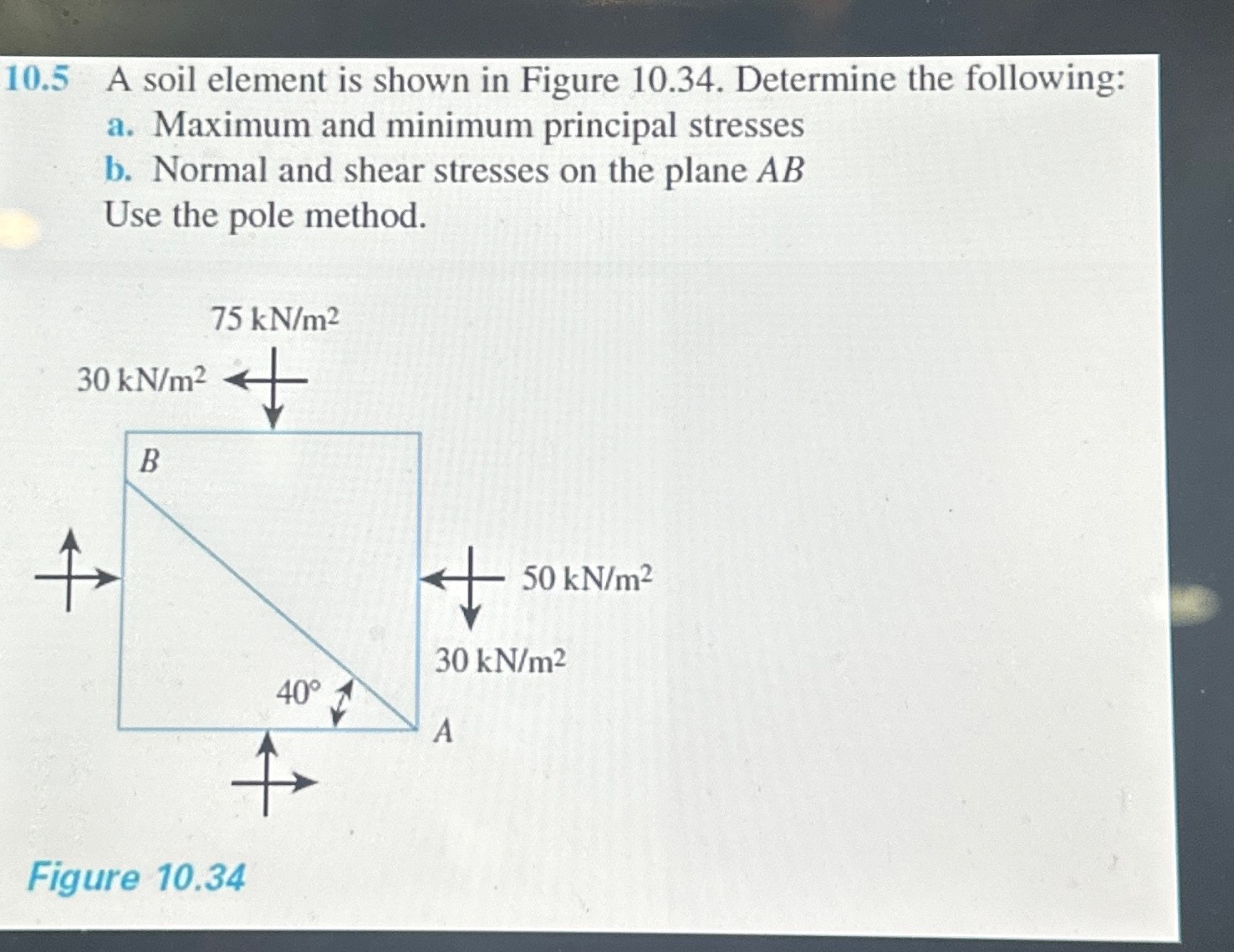

Figure 10.34
1 0 . 5 A soil element is shown in Figure 1 0 . 3

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
