1) Using Ohms Law, calculate I m I- the equivalent series A resistance, the series current, voltage drop and power for each resistor in the

image text in transcribed
image text in transcribed

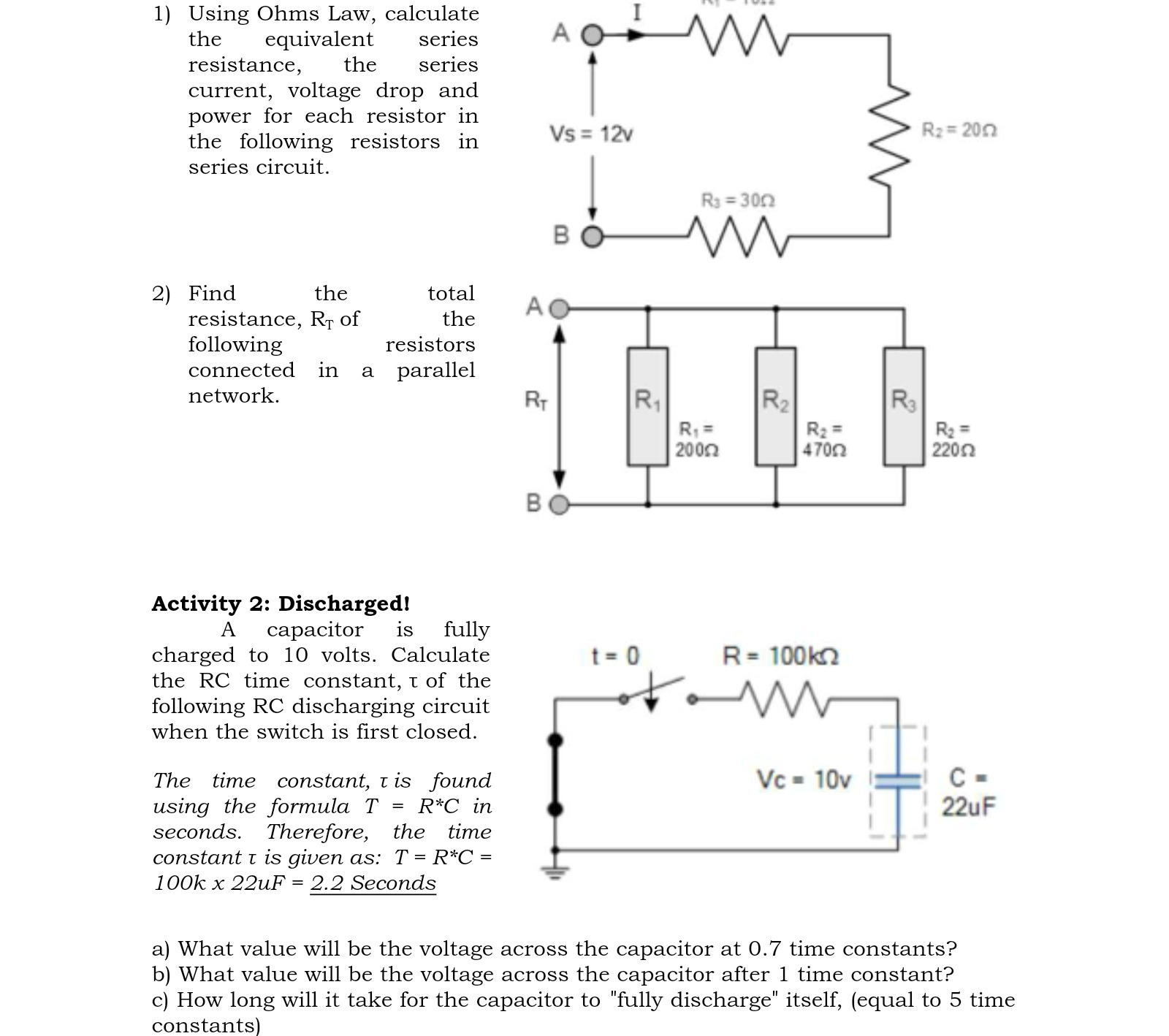

1) Using Ohms Law, calculate I m I-" the equivalent series A resistance, the series current, voltage drop and power for each resistor in the following resistors in V5=12V series circuit. 1 2) Find the total resistance, RT of the A following resistors connected in a parallel network. R1 R3 = 2200 B Activity 2: Discharged! A capacitor is fully charged to 10 volts. Calculate t- O R. 1mm the RC time constant,t of the following RC discharging circuit when the switch is rst closed. The time constant, I is found using the formula T = R*C in seconds. Therefore, the time constant I is given as: T = R*C = 1 00k x 22uF = 2.2 Seconds a) What value will be the voltage across the capacitor at 0.7 time constants? b) What value will be the voltage across the capacitor after 1 time constant? c) How long will it take for the capacitor to "fully discharge" itself, (equal to 5 time constants}

Step by Step Solution

There are 3 Steps involved in it

Step: 1

blur-text-image

Get Instant Access to Expert-Tailored Solutions

See step-by-step solutions with expert insights and AI powered tools for academic success
