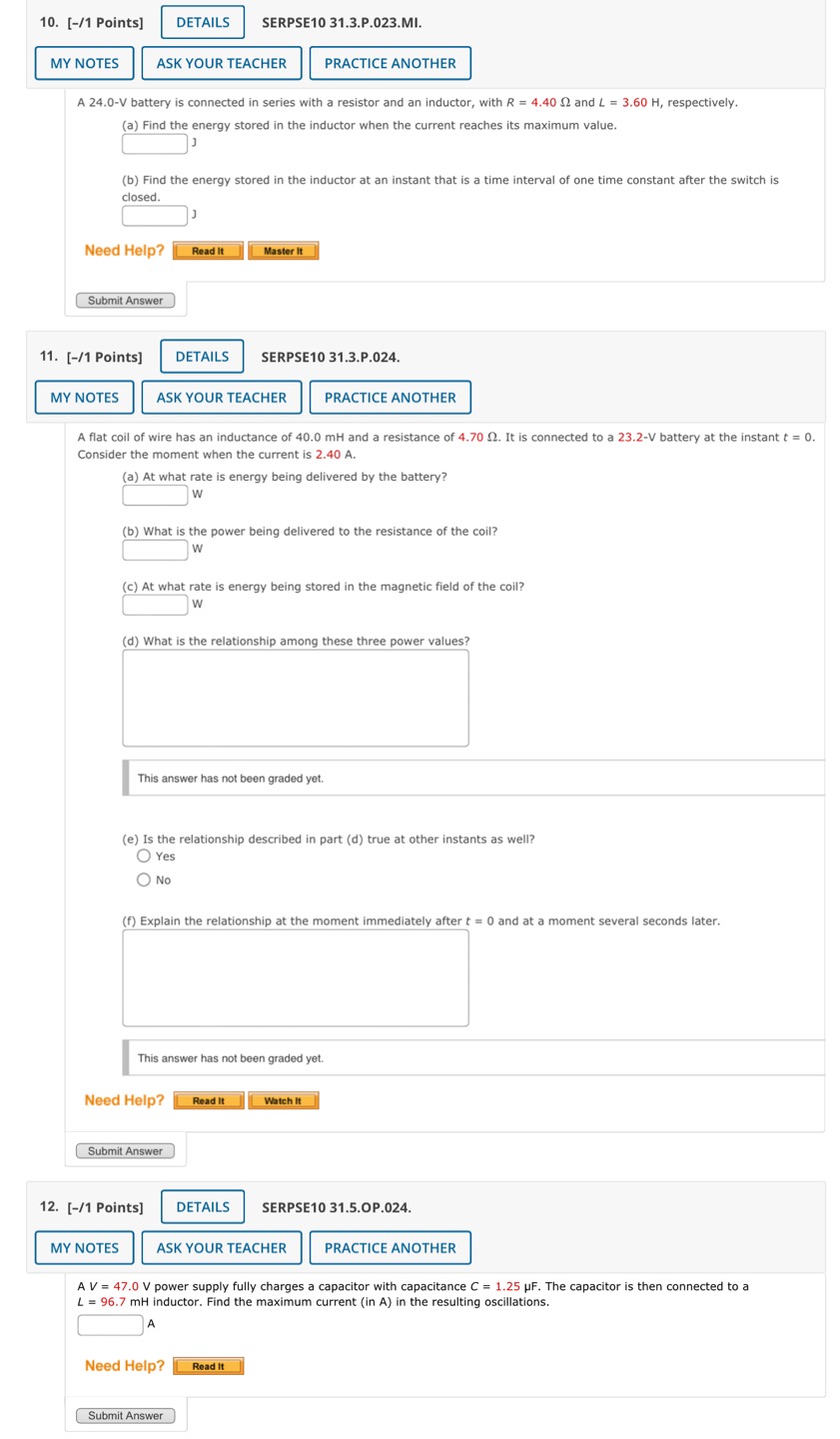

10. [-/1 Points] DETAILS SERPSE10 31.3.P.023.MI. MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER A 24.0-V battery is connected in series with a resistor and an inductor, with R = 4.40 $2 and L = 3.60 H, respectively. (a) Find the energy stored in the inductor when the current reaches its maximum value. (b) Find the energy stored in the inductor at an instant that is a time interval of one time constant after the switch is closed. Need Help? Read It Master It Submit Answer 11. [-/1 Points] DETAILS SERPSE10 31.3.P.024. MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER A flat coil of wire has an inductance of 40.0 mH and a resistance of 4.70 $2. It is connected to a 23.2-V battery at the instant t = 0. Consider the moment when the current is 2.40 A. (a) At what rate is energy being delivered by the battery? W (b) What is the power being delivered to the resistance of the coil? W (c) At what rate is energy being stored in the magnetic field of the coil? W (d) What is the relationship among these three power values? This answer has not been graded yet. (e) Is the relationship described in part (d) true at other instants as well? O Yes O No (f) Explain the relationship at the moment immediately after t = 0 and at a moment several seconds later. This answer has not been graded yet. Need Help? Read It Watch It Submit Answer 12. [-/1 Points] DETAILS SERPSE10 31.5.OP.024. MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER A V = 47.0 V power supply fully charges a capacitor with capacitance C = 1.25 pF. The capacitor is then connected to a L = 96.7 mH inductor. Find the maximum current (in A) in the resulting oscillations. Need Help? Read It Submit Answer13. [-!1 Points] DETAILS SERPSE10 31.5.0P.026. MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER The switch in the gure below is connected to position a for a long time interval. At t = 0, the switch is thrown to position b. After this time, what are the following? (Let C = 1.10 HF.) 10.01: a b 0.100 H W s 0 'B'UU' i _ 12.0 v C\" (a) the frequency of oscillation of the LC circuit i:J Hz (b) the maximum charge that appears on the capacitor [:1 .c (c) the maximum current in the inductor l 1\"\" (d) the total energy the circuit possesses at t = 3.00 5 IN Need Help? Submit Answer 15. [-/1 Points] DETAILS SERPSE10 31.5.OP.027. MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER An LC circuit like the one in the figure below contains an 85.0 mH inductor and a 30.0 UF capacitor that initially carries a 175 JC charge. The switch is open for t
