1.*Kirchoff's Junction Rule 1 0106 Consider the circuit segment shown in the diagram below. If Meter 1 reads 4.8 mA, R 1 = 12 and

1.*Kirchoff's Junction Rule 1 0106

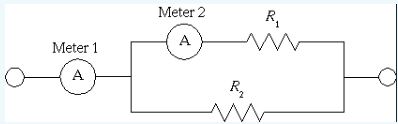

Consider the circuit segment shown in the diagram below. If Meter 1 reads 4.8 mA, R₁ = 12 and R₂ = 23 , what current (in milliamperes) will Meter 2 read. Express answer to two decimal places, using the assumption that the meters have negligible resistance.

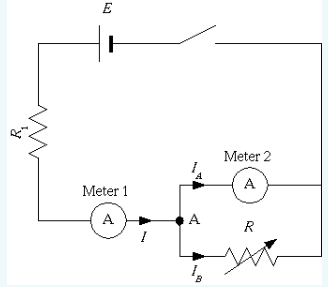

image text in transcribed

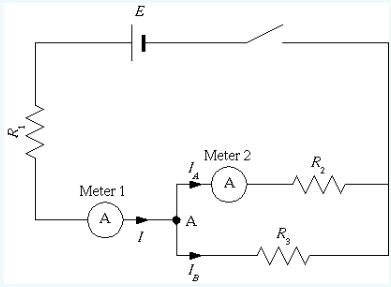

image text in transcribed

Meter 2 R Meter 1 A A R.E Meter 2 R. A A Meter 1 A AMeter 2 A A Meter 1 A AE Meter 2 A A Meter 1 A A RE Meter 1 A V B R Meter 2 V C
