2 . 4 . A flat square plate shown in Figure 1 , its sides held at constant temperatures. Each grey dot represents a node,

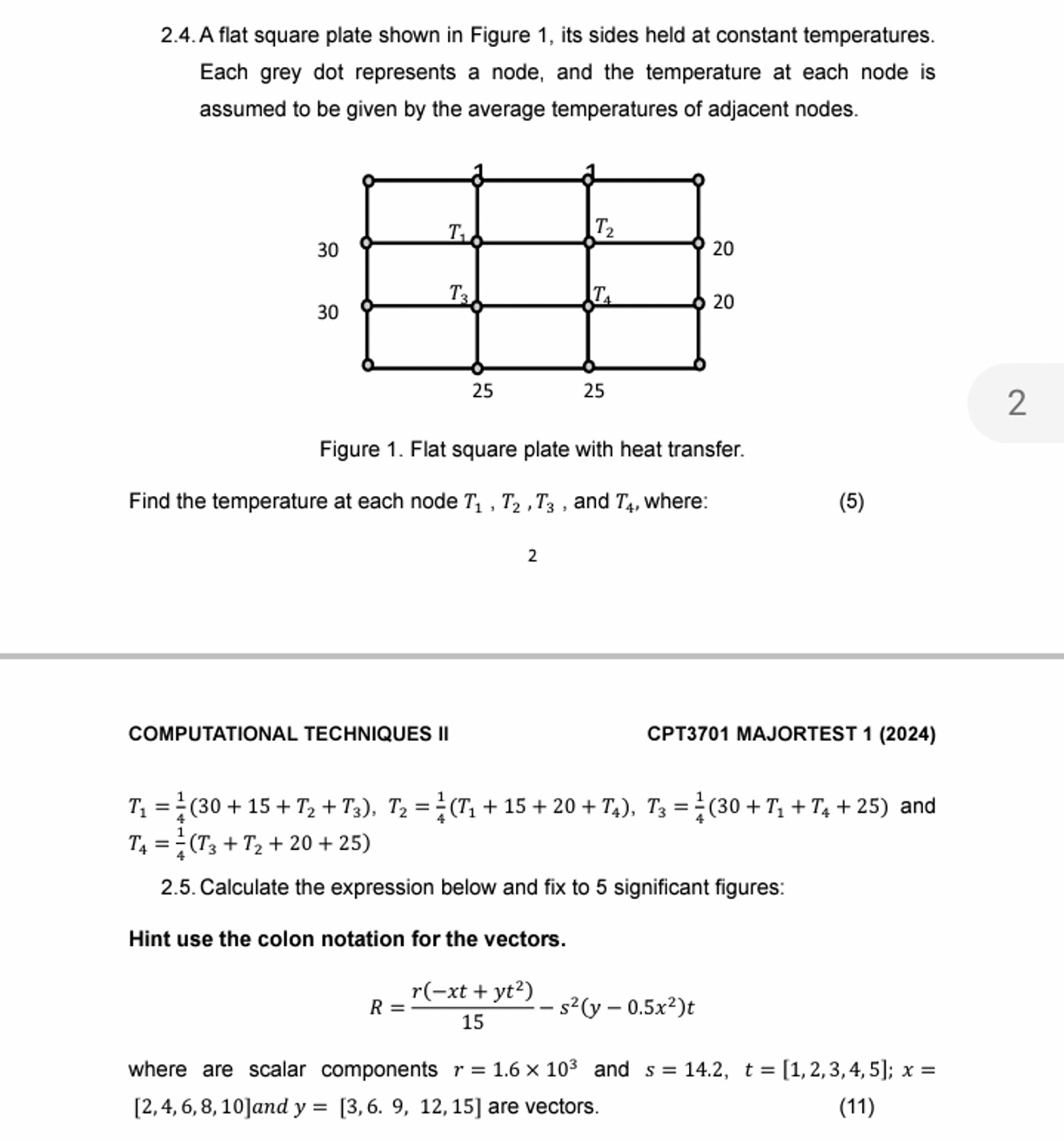

2.4. A flat square plate shown in Figure 1, its sides held at constant temperatures.
Each grey dot represents a node, and the temperature at each node is
assumed to be given by the average temperatures of adjacent nodes.
Figure 1. Flat square plate with heat transfer.
Find the temperature at each node T1,T2,T3, and T4, where:
COMPUTATIONAL TECHNIQUES
T1=14(30+15+T2+T3),T2=14(T1+15+20+T4),T3=14(30+T1+T4+25) and
T4=14(T3+T2+20+25)
2.5. Calculate the expression below and fix to 5 significant figures:
Hint use the colon notation for the vectors.
R=r(-xt+yt2)15-s2(y-0.5x2)t
where are scalar components r=1.6103 and s=14.2,t=[1,2,3,4,5];x=
2,4,6,8,10 and y=[3,6.9,12,15] are vectors.
