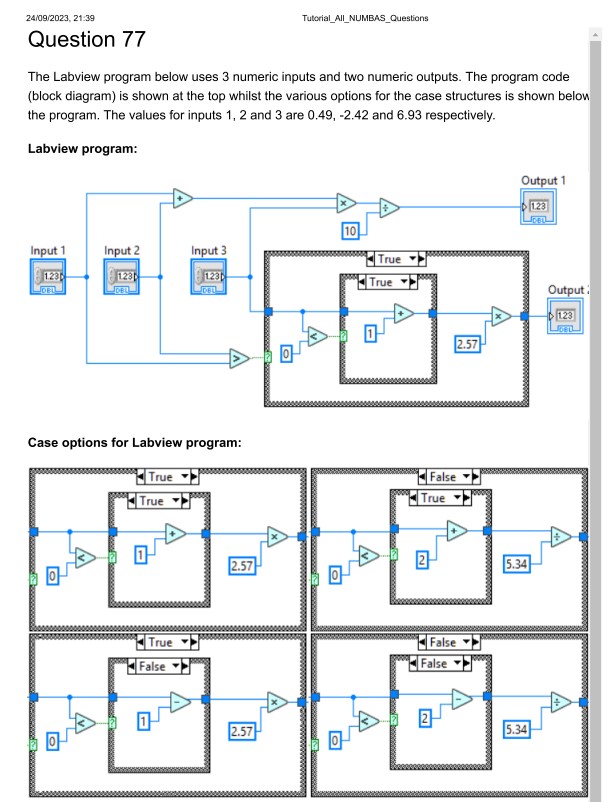

24/09/2023, 21:39 Question 77 Tutorial_All_NUMBAS Questions The Labview program below uses 3 numeric inputs and two numeric outputs. The program code (block diagram) is

image text in transcribed

24/09/2023, 21:39 Question 77 Tutorial_All_NUMBAS Questions The Labview program below uses 3 numeric inputs and two numeric outputs. The program code (block diagram) is shown at the top whilst the various options for the case structures is shown below the program. The values for inputs 1, 2 and 3 are 0.49, -2.42 and 6.93 respectively. Labview program: 10 Input 1 Input 2 Input 3 True 1.230 JOBIL 1230 DBL 1230 DBL True Case options for Labview program: True True 0 False True Output 1 1.23 JDEL 2.57 Output 123 1- 2.57 2 5.34 True False 2.57 False False 5.34

Step by Step Solution
